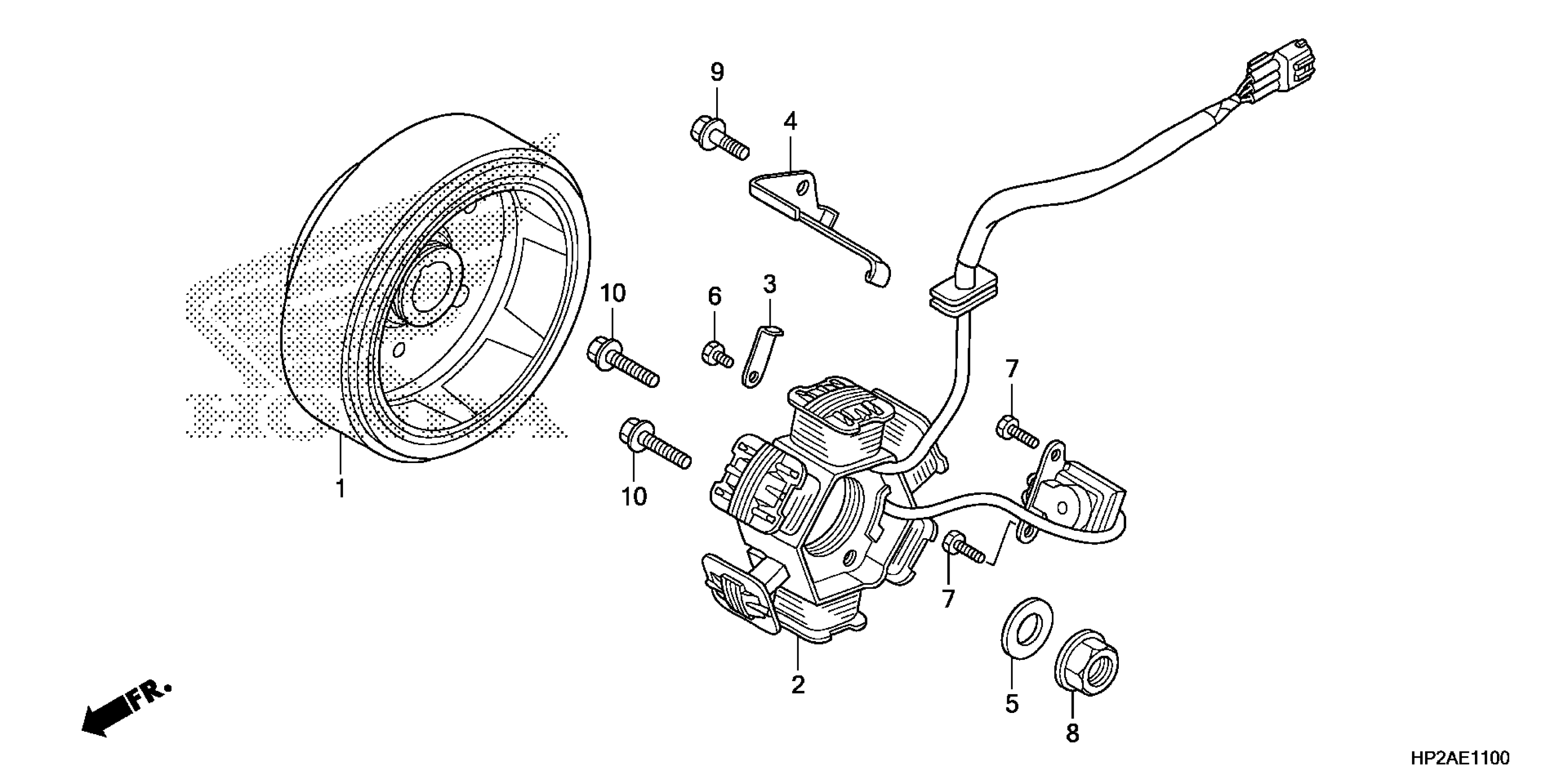

Honda TRX90XAC (22) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE550-N4000001 GENERATOR Diagram

#

Description
Price

1

FLYWHEEL

31110-HP2-671

$165.72

2

STATOR

31120-HP2-671

$170.31

3

CLAMP, ALTERNATOR WIRE

31141-141-860

$1.68

4

CLAMP, ALTERNATOR WIRE

32961-GT0-700

$2.41

5

WASHER (10MM)

90410-HC4-000

$3.65

6

BOLT, HEX. (5X6)

93301-05006-0H

$0.59

7

BOLT, HEX. (5X10)

93301-05010-0H

$0.59

8

NUT, FLANGE (10MM)

94050-10000

$1.43

9

BOLT, FLANGE (6X16)

96001-06016-00

$0.97

10

BOLT, FLANGE (6X22)

96001-06022-00

$1.15
