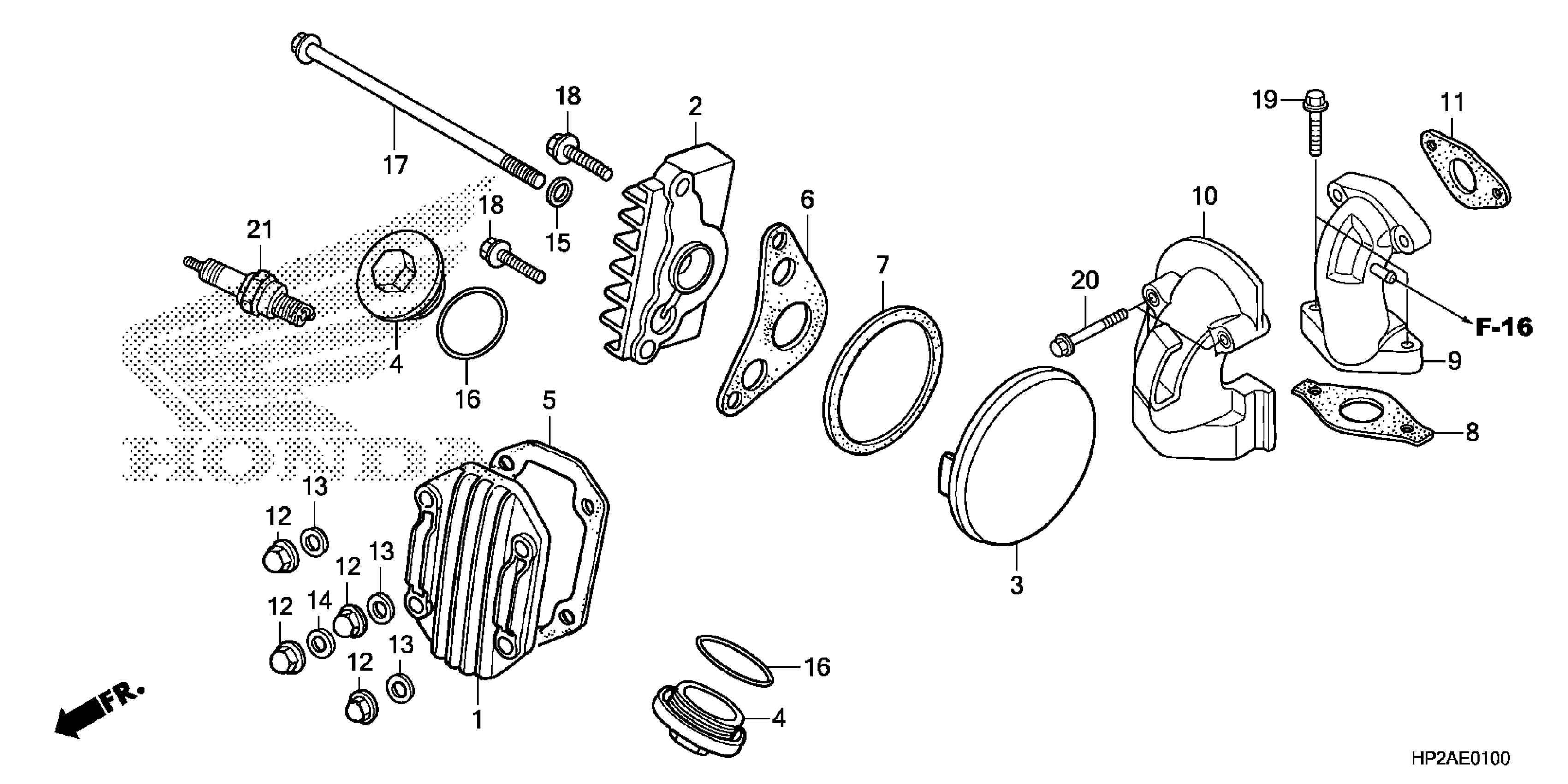

Honda TRX90XAC (21) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE183-MK200001 TO JH2TE183-MK299999 CYLINDER HEAD COVER Diagram

COVER, CYLINDER HEAD

12301-GB6-911

$24.82

COVER, R. CYLINDER HEAD SIDE

12331-GB0-910

$29.36

COVER, L. CYLINDER HEAD SIDE

12341-GB6-910

$22.47

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

CAP, VALVE ADJ.

12361-300-000

Unavailable

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

GASKET, CYLINDER HEAD COVER This part replaces 12391-GW8-681.

12391-KVM-C20

$4.15

GASKET, R. CYLINDER HEAD SIDE COVER This part replaces 12394-GW8-681.

12394-GW8-682

$4.17

GASKET, L. CYLINDER HEAD SIDE COVER This part replaces 12395-GW8-681.

12395-GW8-682

$4.94

GASKET, L. CYLINDER HEAD SIDE COVER

12395-GW8-682

$4.94

GASKET, INSULATOR

16201-HF7-000

$4.22

PIPE, INLET

17110-HP2-770

$36.77

COVER, IN. PIPE

17115-HP2-670

$32.84

GASKET, IN. PIPE

17119-HF7-000

$9.10

NUT, CAP (7MM)

90201-GF6-010

$4.75

WASHER, SEALING (7MM)

90442-GF6-010

$1.49

WASHER A, SEALING (7MM)

90443-GF6-010

$1.49

WASHER, SEALING (6.2X12X1.2) This part replaces 90461-357-000.

90463-KRM-840

$1.49

WASHER, SEALING (6.2X12X1.2)

90463-KRM-840

$1.49

O-RING (30.8MM) (Honda Code 0001065)

91302-001-020

$3.75

BOLT, FLANGE (6X110)

95701-06110-00

$3.09

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

BOLT, FLANGE (6X50) BOLT, FLANGE (6X55)

96001-06050-00

$2.16

SPARK PLUG (CR6HSA) (NGK) | (Optional).

98056-56718

$2.62

SPARK PLUG (U20FSR-U) (DENSO) | (Optional).

98056-56726

$2.54

SPARK PLUG (CR7HSA) (NGK)

98056-57718

$2.62

SPARK PLUG (U22FSR-U) (DENSO)

98056-57726

$2.54

SPARK PLUG (CR8HSA) (NGK) | (Optional).

98056-58718

$2.62

SPARK PLUG (U24FSR-U) (DENSO) | (Optional).

98056-58726

$2.54
