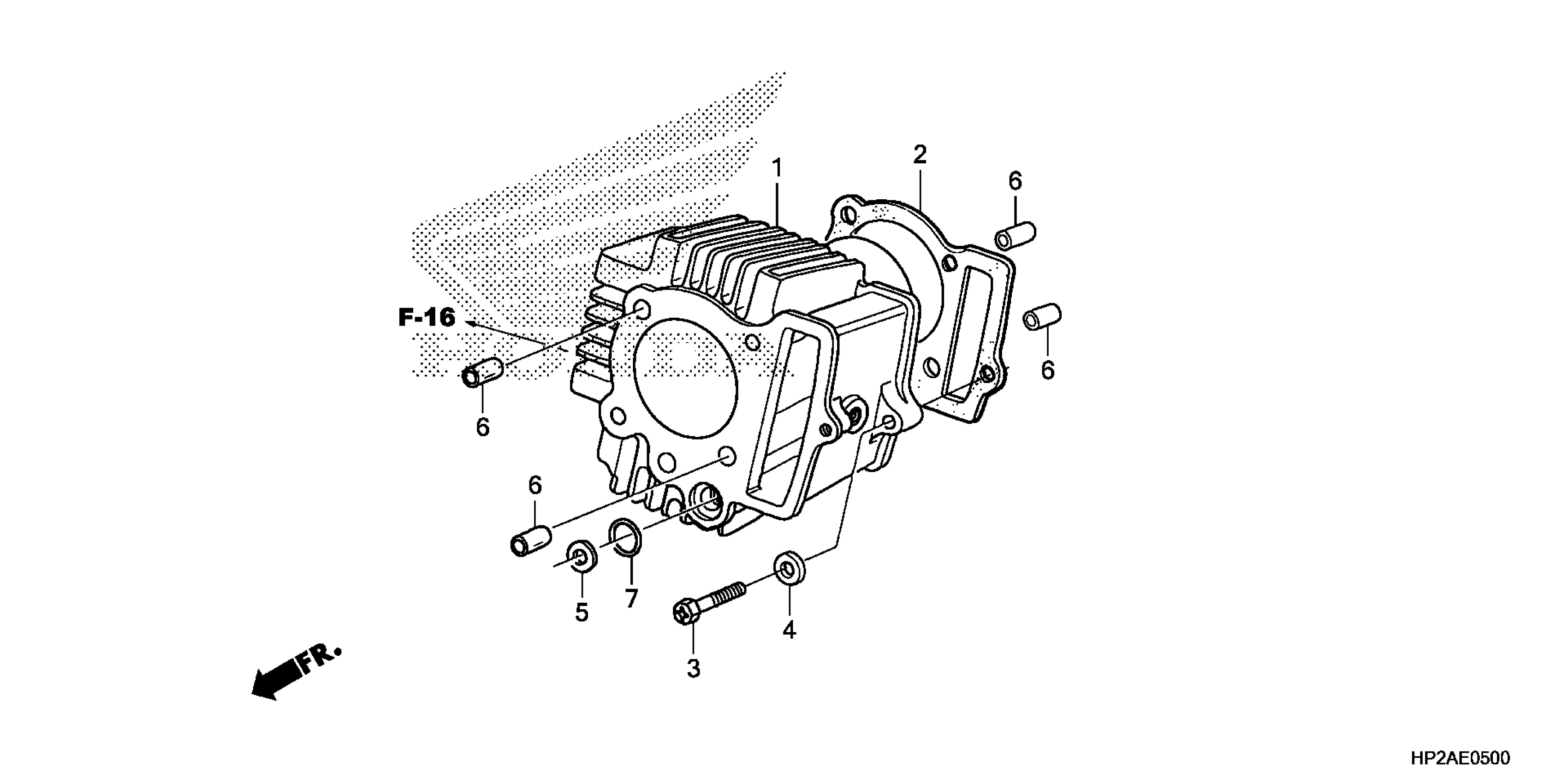

Honda TRX90XAC (20) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE183-LK100001 TO JH2TE183-LK199999 CYLINDER Diagram

#

Description

Price

1

CYLINDER

12101-HP2-770

$156.66

2

GASKET, CYLINDER

12191-HP2-670

$8.20

3

BOLT (6MM)

90082-035-010

$2.39

4

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

5

COLLAR (14.8MM)

90603-GB0-911

$3.10

6

PIN, DOWEL (8X14)

90701-GF6-000

$4.17

7

O-RING (14.5MM) This part replaces 91301-GB0-911.

91301-GF6-003

$6.69

7

O-RING (14.5MM)

91301-GF6-003

$6.69
