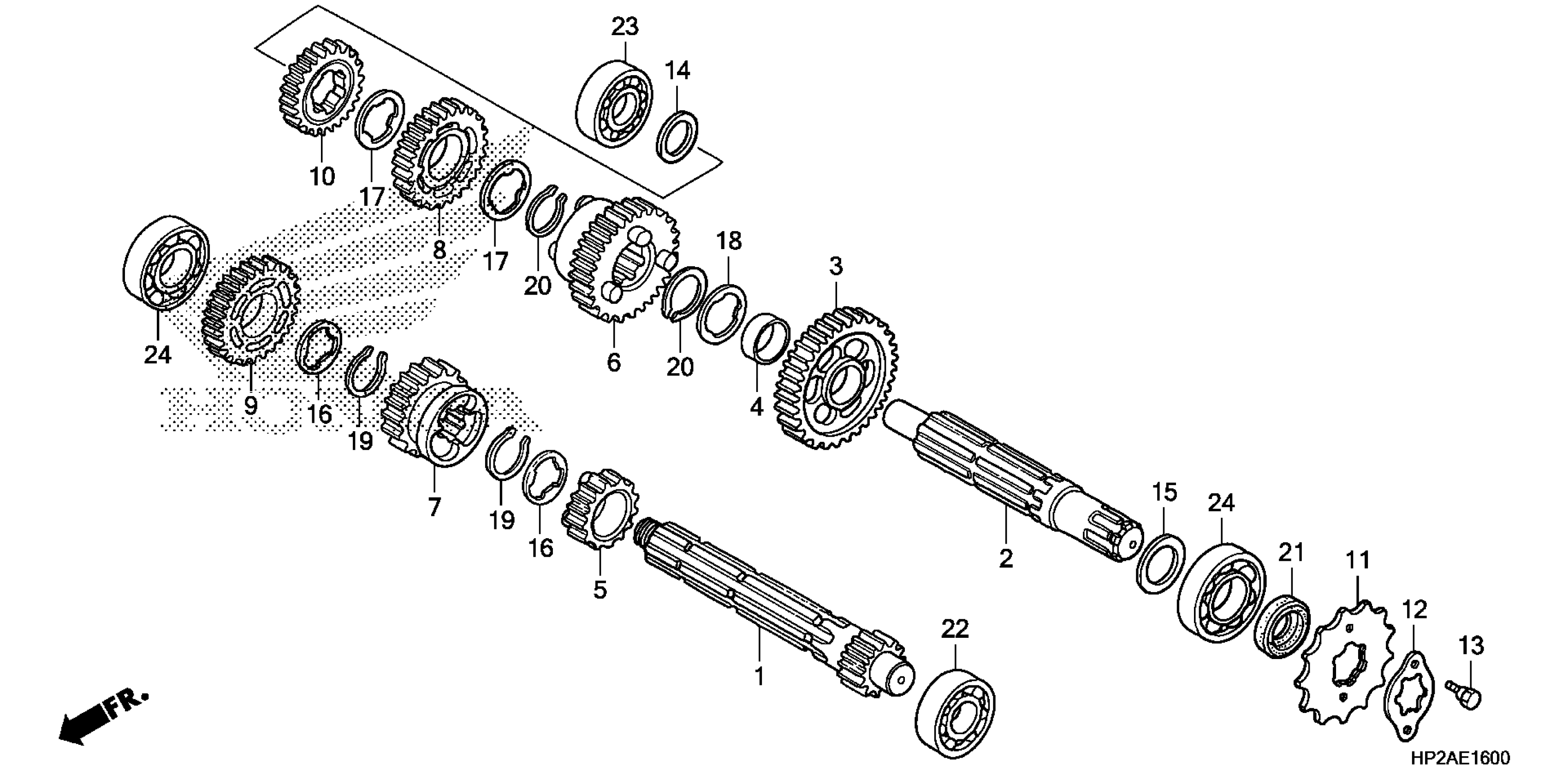

Honda TRX90XAC (19) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE183-KK000001 TO JH2TE183-KK099999 TRANSMISSION Diagram

MAINSHAFT (12T)

23211-KFM-900

$18.99

COUNTERSHAFT

23221-HF7-000

$76.88

GEAR, COUNTERSHAFT LOW (34T)

23421-GN5-910

$54.96

BUSH (20X9)

23422-GB4-770

$16.65

GEAR, MAINSHAFT SECOND (16T)

23431-HF7-000

$44.19

GEAR, COUNTERSHAFT SECOND (31T)

23441-HF7-000

$88.74

GEAR, MAINSHAFT THIRD (20T)

23451-HF7-000

$73.61

GEAR, COUNTERSHAFT THIRD (26T)

23461-GK4-762

$45.35

GEAR, MAINSHAFT FOURTH (24T)

23471-GN5-910

$43.41

GEAR, COUNTERSHAFT FOURTH (23T)

23481-HF7-000

$52.71

SPROCKET, DRIVE (13T)

23801-HF7-000

$30.92

PLATE, DRIVE SPROCKET FIXING

23802-041-010

$1.84

BOLT, DRIVE SPROCKET FIXING

90084-041-000

$4.29

WASHER, THRUST (12MM)

90451-GF6-000

$2.03

WASHER, THRUST (17MM)

90452-GB4-770

$1.87

WASHER, SPLINE (17MM)

90461-035-000

$2.35

WASHER, SPLINE (20MM)

90461-459-010

$5.04

WASHER, SPLINE (20X1.2)

90461-GB4-770

$3.09

CIRCLIP (OUTER) (17MM)

90601-001-000

Unavailable

CIRCLIP (OUTER) (20MM)

90601-459-000

$2.80

OIL SEAL (17X29X5) (ARAI)

91203-GBG-900

$6.51

OIL SEAL (17X29X5) (ARAI) This part replaces 91203-GB5-761.

91203-GBG-900

$6.51

BEARING, RADIAL BALL (6001)

96100-60010-00

$7.14

BEARING, RADIAL BALL (6201)

96100-62010-00

$7.52

BEARING, RADIAL BALL (6203)

96100-62030-00

$7.82
