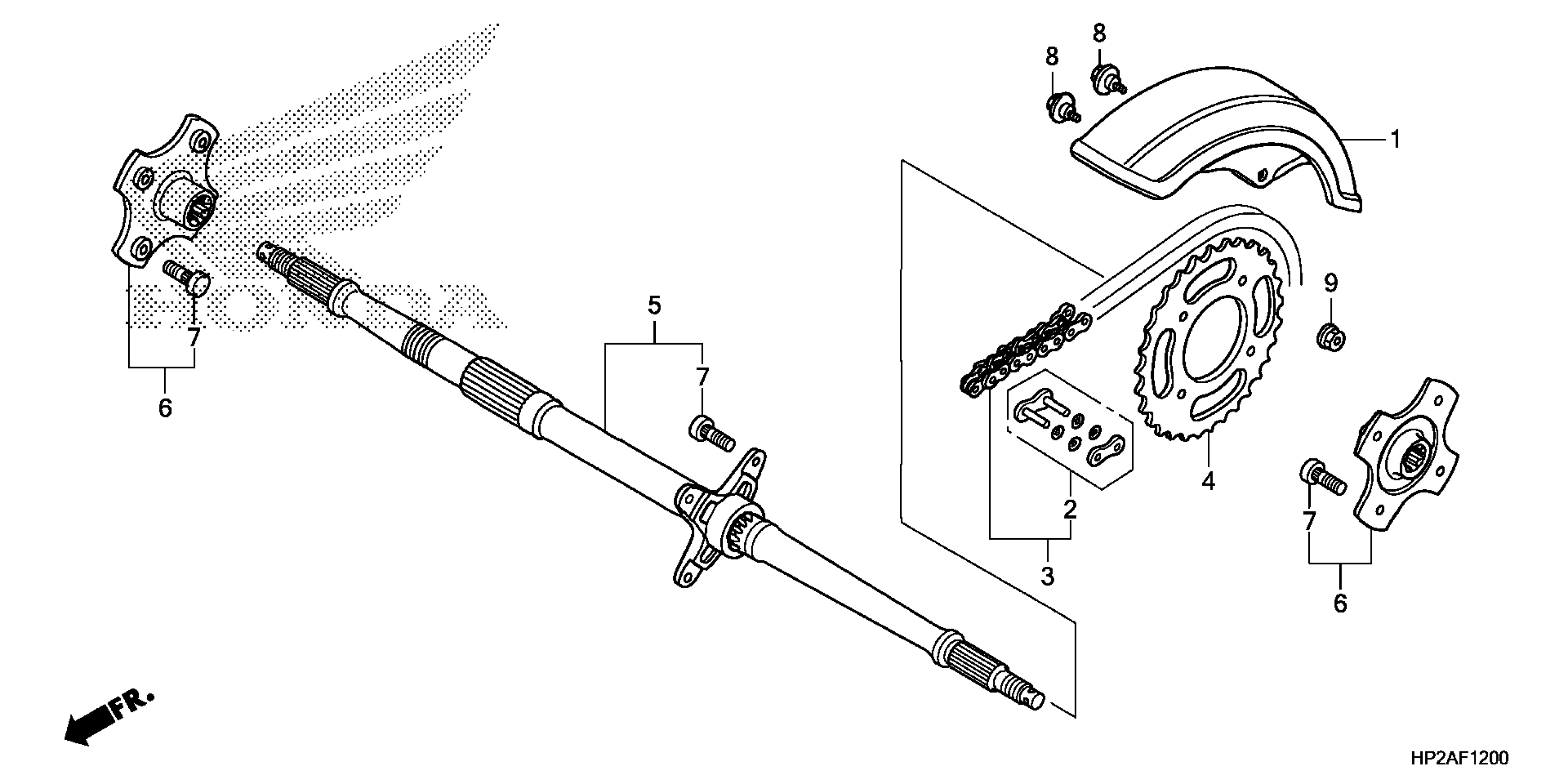

Honda TRX90XAC (19) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE183-KK000001 TO JH2TE183-KK099999 FINAL DRIVEN GEAR Diagram

#

Description

Price

1

COVER, DRIVE CHAIN

40510-HF7-000

$28.89

2

MASTER LINK (RK EXCEL)

40531-HP2-672

$26.57

2

MASTER LINK (DAIDO)

40545-KRH-D21

$9.74

3

CHAIN, DRIVE (DID428V-100ZB) (DAIDO) (STANDARD LINK 98L)

40540-HP2-671

$128.39

3

CHAIN, DRIVE (RK428HOZ1-100LJFZ) (RK EXCEL) (STANDARD LINK 98L)

40540-HP2-672

$135.02

4

SPROCKET, FINAL DRIVEN (50T)

41201-HF7-000

$66.98

5

AXLE, RR. WHEEL

42310-HF7-000

$459.02

6

HUB, RR. WHEEL

42410-HF7-000

$133.02

7

BOLT, WHEEL (10X24.5)

90103-VM6-300

$6.63

8

BOLT, FLANGE (6MM)

90113-GF0-000

$4.24

9

NUT, U (10MM) NUT, SELF-LOCK (10MM)

90304-GE8-003

$3.67
