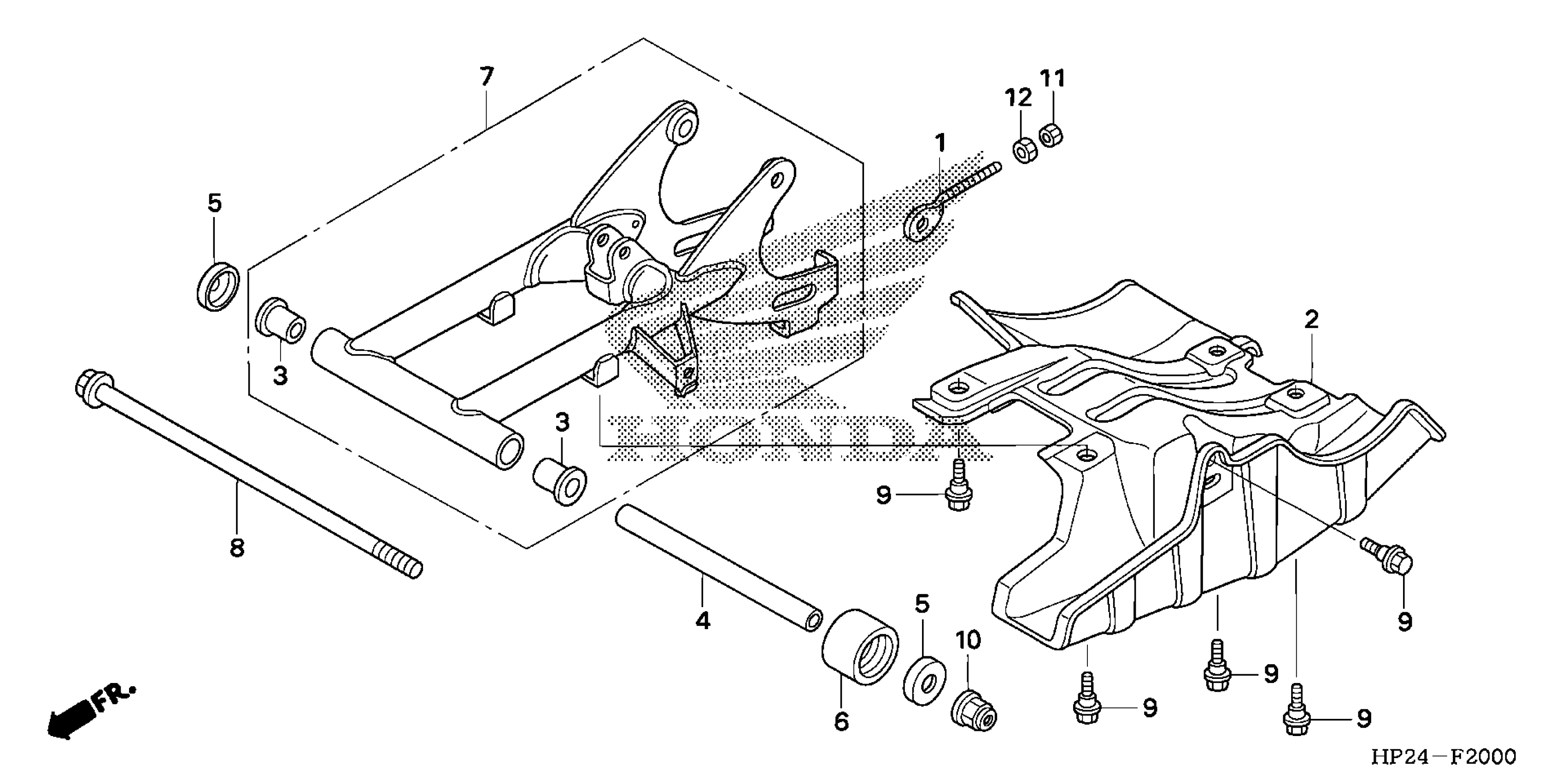

Honda TRX90XAC (14) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE181-EK300001 SWINGARM Diagram

#

Description
Price

1

ADJUSTER, CHAIN

40543-HB3-000

$9.47

2

PLATE, SKID

50355-HP2-670

$32.09

3

BUSH, SWINGARM This part replaces 52108-HB3-000.

52108-KE5-003

$19.47

3

BUSH, SWINGARM

52108-KE5-003

$19.47

4

COLLAR, SWINGARM

52141-HF7-000

$68.96

5

CAP, SWINGARM DUST SEAL (NOK)

52144-GE2-005

$14.60

6

SLIDER, CHAIN

52170-HB3-000

$18.97

7

SWINGARM SET

52200-HP2-670

$726.72

8

BOLT, SWINGARM PIVOT

90121-HF7-000

$58.09

9

BOLT, FLANGE (8X20)

90186-HP2-670

$2.80

10

NUT, U (14MM)

90305-GE8-003

$3.59

11

NUT, HEX. (8MM)

94001-08000-0S

$1.19

12

NUT, HEX. (8MM)

94030-08000

$0.97
