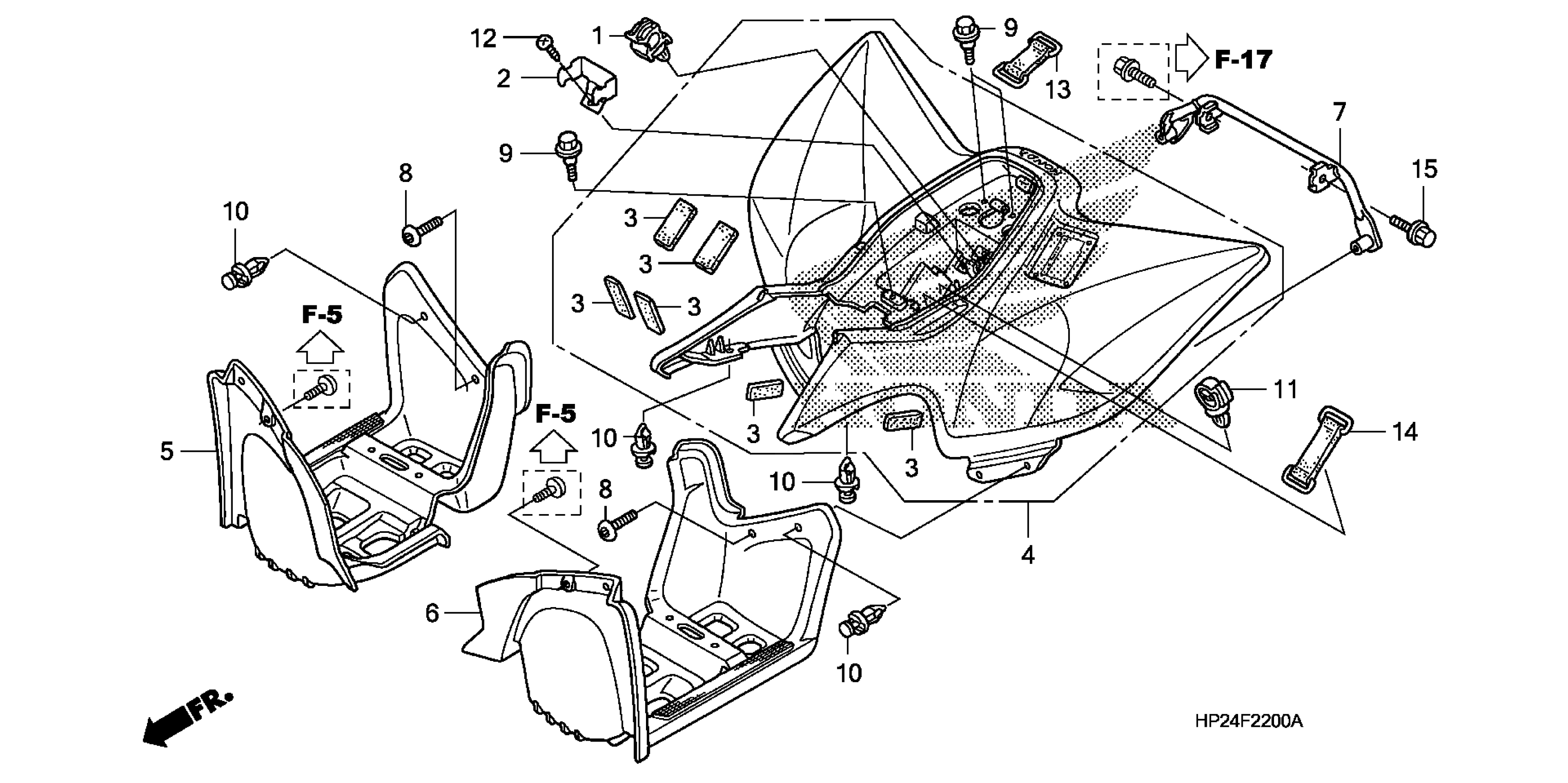

Honda TRX90XAC (14) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE181-EK300001 REAR FENDER Diagram

CLAMP, WIRE

32660-MJ6-710

$3.75

STAY, STARTER MAGNETIC

50326-HP2-670

$2.52

CUSHION, BATTERY

80103-HP2-670

$1.49

FENDER SET, RR. (TYPE1) (WL) | Nitro red R299R;

80110-HP2-900ZC

$445.26

SPLASH GUARD, R. CENTER *NH1* (BLACK) | Nitro red R299R;

80121-HP2-670ZA

$72.88

SPLASH GUARD, L. CENTER *NH1* (BLACK) | Nitro red R299R;

80122-HP2-670ZA

$72.88

STAY, RR. FENDER

80217-HP2-840

$18.51

SCREW, PAN

90106-MAV-000

$2.18

BOLT, FLANGE (6MM)

90116-HP2-670

$2.20

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

CLIP, WIRE HARNESS

90681-763-A01

$9.11

SCREW, TAPPING (5X12)

93903-25220

$1.49

BAND A, BATTERY

95012-11001

$2.92

BAND B2, BATTERY

95012-13001

$5.28

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
