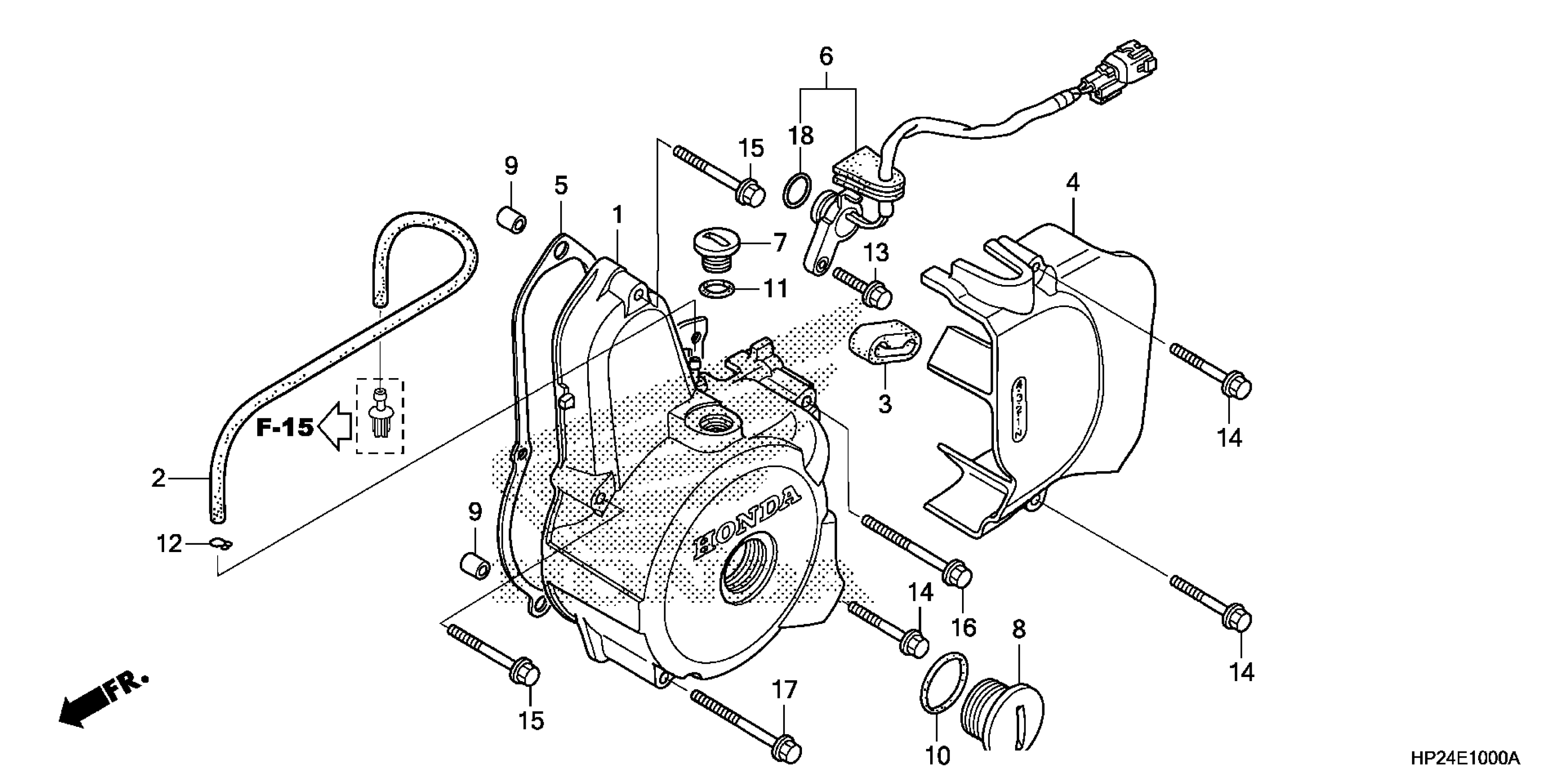

Honda TRX90XAC (14) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE181-EK300001 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, L. CRANKCASE

11340-HP2-670

$112.21

2

TUBE, BREATHER

11344-HP2-670

$3.70

3

SLIDER, DRIVE CHAIN

11345-HF7-000

$9.61

4

COVER, L. RR. CRANKCASE

11361-HP2-670

$31.64

5

GASKET, L. CRANKCASE COVER

11395-HP2-670

$11.28

6

CONTACT ASSY., CHANGE SWITCH

35759-HP2-671

$82.93

7

CAP, ALTERNATOR

90084-GES-000

$5.67

8

CAP (30MM)

90087-GES-000

$8.57

9

PIN, DOWEL (8X12)

90702-KFM-900

$1.49

10

O-RING (27X2.0)

91301-028-000

$2.92

11

O-RING (13.8X2.5)

91303-377-000

$3.42

12

CLIP, TUBE (B7)

95002-02070

$1.80

13

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

14

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

15

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

16

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

17

BOLT, FLANGE (6X70)

96001-06070-00

$1.95

18

O-RING (21X2.4)

91301-HP2-671

$2.33
