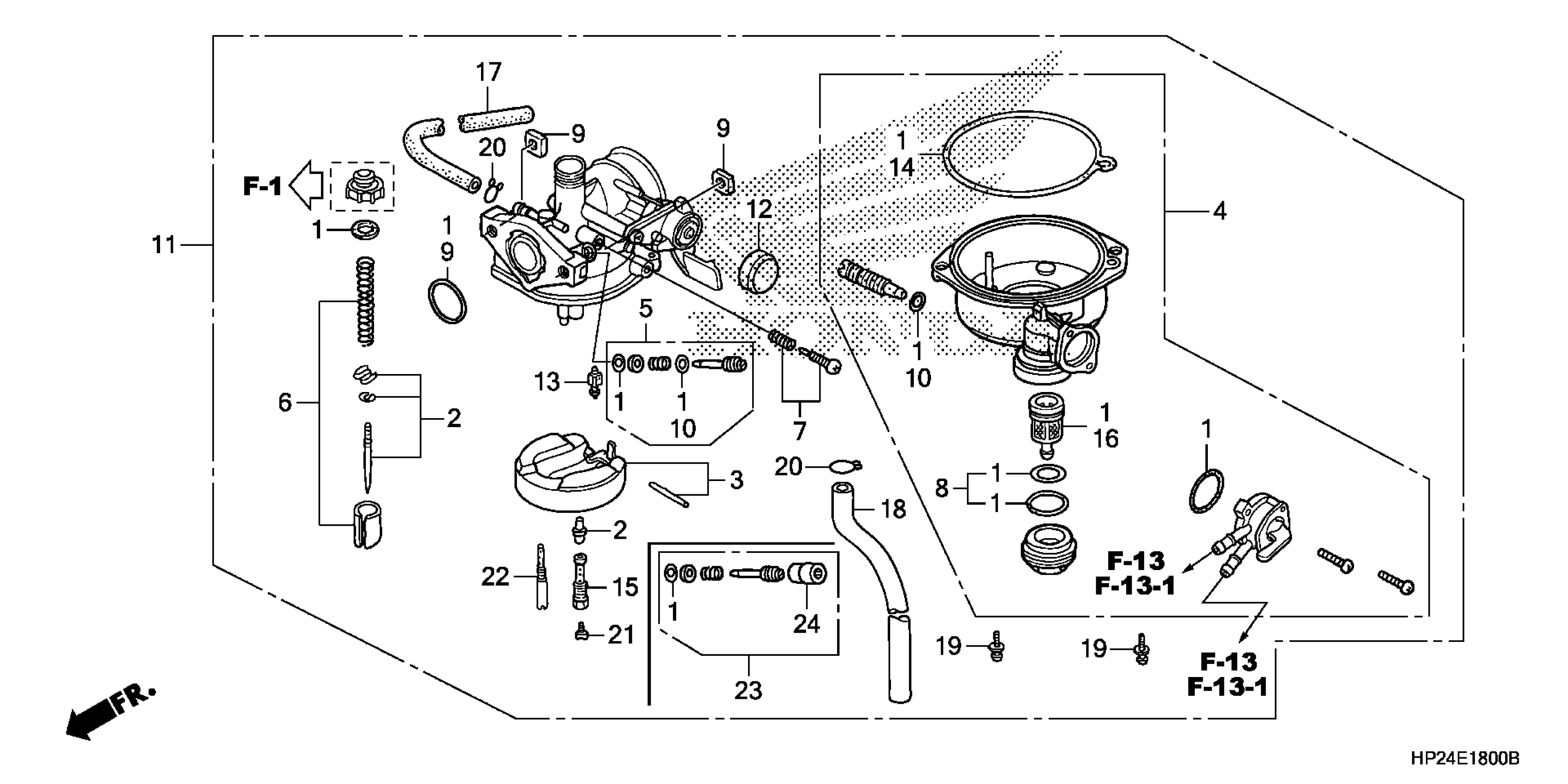

Honda TRX90XAC (14) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE181-EK300001 CARBURETOR Diagram

GASKET SET This part replaces 16010-HP2-A21.

16010-HP2-A22

$21.45

NEEDLE SET, JET

16012-HP2-671

$20.89

FLOAT SET

16013-HP2-671

$32.16

CHAMBER SET, FLOAT This part replaces 16015-HP2-671.

16015-HP2-672

$103.67

VALVE SET, THROTTLE

16022-HF7-A11

$32.49

SCREW SET B

16028-GC8-004

$16.35

GASKET SET

16040-KEV-900

$8.52

NUT SET, SQUARE

16041-GB1-910

$5.54

O-RING (1.3X4.3)

16075-GHB-640

$2.92

CARBURETOR ASSY. (PB5FD B) This part replaces 16100-HP2-A21.

16100-HP2-A22

$188.30

CAP, CHOKE DUST

16148-HP2-671

$3.08

VALVE, FLOAT

16155-GZ5-000

$33.82

GASKET, FLOAT CHAMBER

16163-GBG-960

$11.11

HOLDER, NEEDLE JET

16165-HF7-000

$39.16

SCREEN, FUEL STRAINER

16176-HP2-671

$6.34

TUBE

16198-GAN-730

$12.30

TUBE, OVERFLOW

16198-HF7-000

$8.92

SCREW-WASHER (4X14)

93892-04014-08

$1.49

CLIP, TUBE (B6.5)

95002-02650

$1.49

JET, MAIN (#80) | (Optional).

99101-HF7-0800

$7.92

JET, MAIN (#82)

99101-HP2-0820

$7.87

JET, SLOW (#40)

99103-GN8-0400

$11.39

SCREW SET

16016-HP2-A21

$13.34

CAP, ADJUSTING SCREW

16312-KYK-911

$2.70
