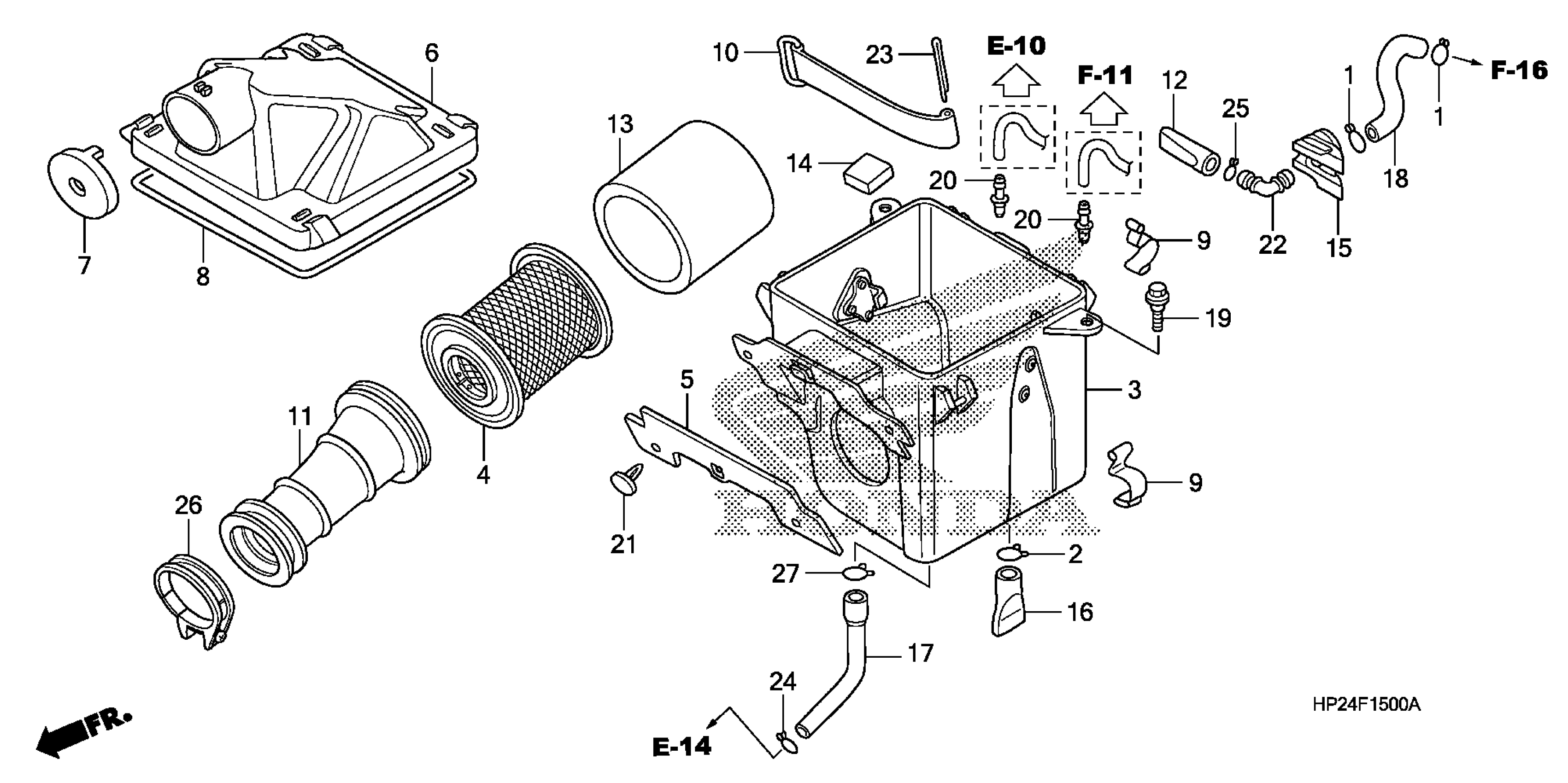

Honda TRX90XAC (14) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE181-EK300001 AIR CLEANER Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-GW3-980

$2.84

2

CLIP, BREATHER TUBE

15772-292-010

$2.92

3

HOUSING, AIR CLEANER

17210-HP2-770

$37.85

4

HOLDER, AIR CLEANER

17212-HP2-670

$25.14

5

RUBBER, SEAL

17214-HP2-670

$7.97

6

LID, AIR CLEANER HOUSING

17217-HP2-670

$15.42

7

CAP, IN.

17218-HF7-000

$6.63

8

SEAL, AIR CLEANER LID

17219-HF7-000

$5.60

9

SPRING, AIR CLEANER HOUSING LID (TOYO)

17223-HB3-003

$7.88

10

SPRING

17225-GN1-000

$8.92

11

TUBE, AIR CLEANER CONNECTING

17253-HF7-000

$27.56

12

FILTER, SUB-AIR CLEANER

17254-HF7-A20

$4.72

13

AIR CLEANER

17254-HF7-000

$9.81

14

COVER, DUST

17256-HF7-A20

$2.43

15

RUBBER, SUB-AIR CLEANER MOUNTING

17316-HF7-A20

$15.97

16

TUBE, DRAIN This part replaces 17358-HA0-680.

17358-HM8-000

$4.94

16

TUBE, DRAIN

17358-HM8-000

$4.94

17

TUBE, BREATHER

17366-HP2-670

$3.87

18

HOSE A, AIR IN.

18221-HP2-770

$10.08

19

BOLT, FLANGE (6MM)

90111-162-000

$2.89

20

JOINT, BREATHER TUBE

90652-HF7-003

$9.52

21

CLIP, COVER (LOWER)

90685-SA5-003

$10.31

22

JOINT, TUBE

91463-MC4-000

$5.90

23

PIN, SPLIT (3.0X45)

94201-30450

$1.49

24

CLIP, TUBE (B10)

95002-02100

$1.90

25

CLIP, TUBE (B12.5)

95002-02130

$1.49

26

BAND, AIR CLEANER CONNECTING TUBE (42)

95018-42250

$7.72

27

CLIP, TUBE (B12)

95002-02120

$2.00
