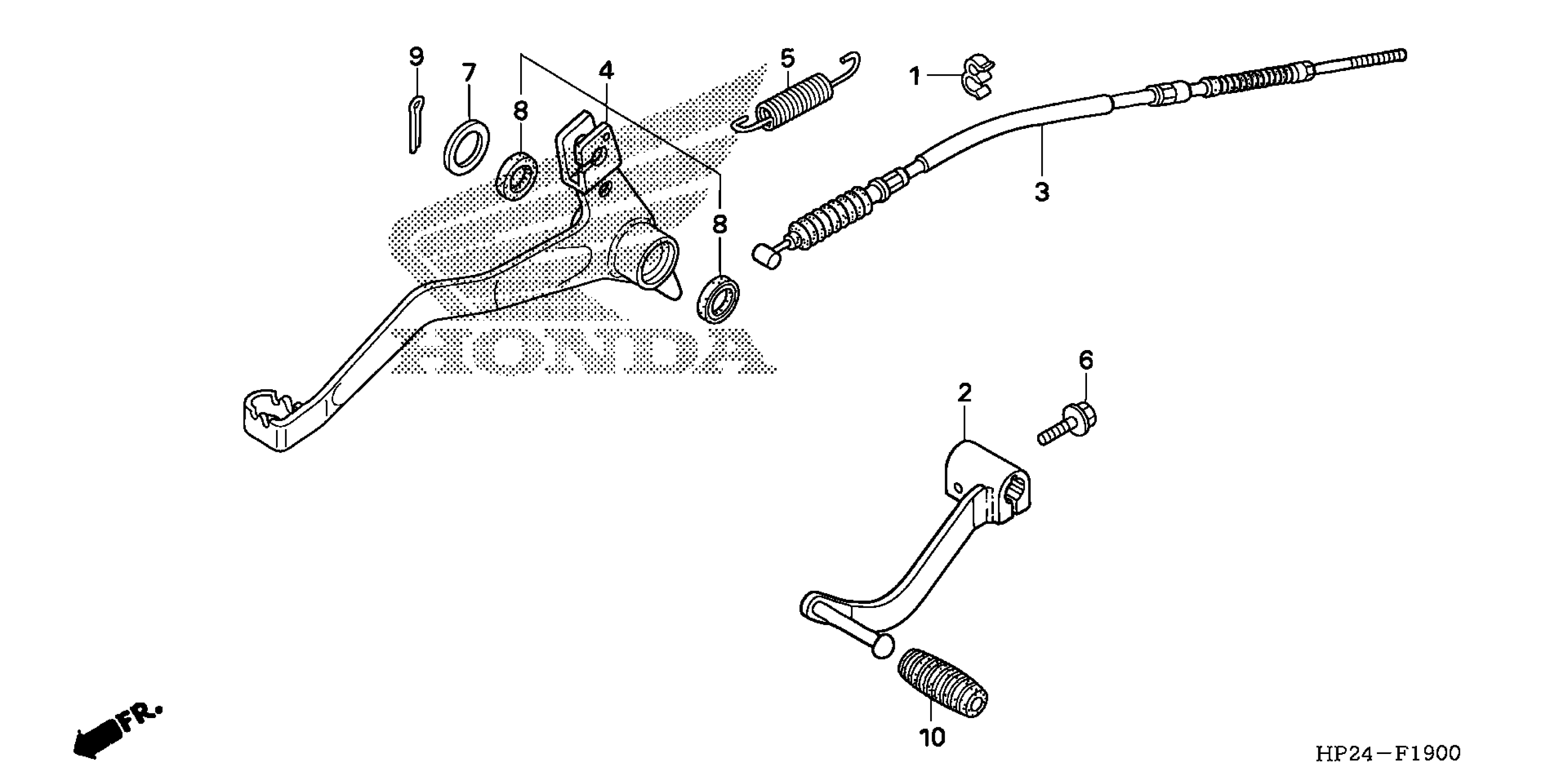

Honda TRX90XA (09) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE180-9K300001 TO JH2TE180-9K399991 PEDAL Diagram

CLAMP, PIPE

11152-KS4-003

$6.63

PEDAL, GEARSHIFT (COO) This part replaces 24700-HP2-670.

24700-HP2-305

$37.94

PEDAL, GEARSHIFT (COO)

24700-HP2-305

$37.94

CABLE, FOOT BRAKE

43470-HP2-671

$23.10

PEDAL, BRAKE

46500-HP2-670

Unavailable

PEDAL, BRAKE This part replaces 46500-HP2-305.

46500-HP2-670

Unavailable

SPRING, BRAKE PEDAL

46514-KZ9-000

$4.78

BOLT, FLANGE (6X20)

90118-968-000

$3.93

WASHER (17.5MM)

90512-303-000

$1.61

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.44

DUST SEAL (17X23X3) (NOK) This part replaces 91206-968-004.

91206-968-003

$3.44

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.94

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.94

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.94

PIN, SPLIT (3.0X45)

94201-30450

$0.94

RUBBER, CHANGE PEDAL

95011-40000

$1.14
