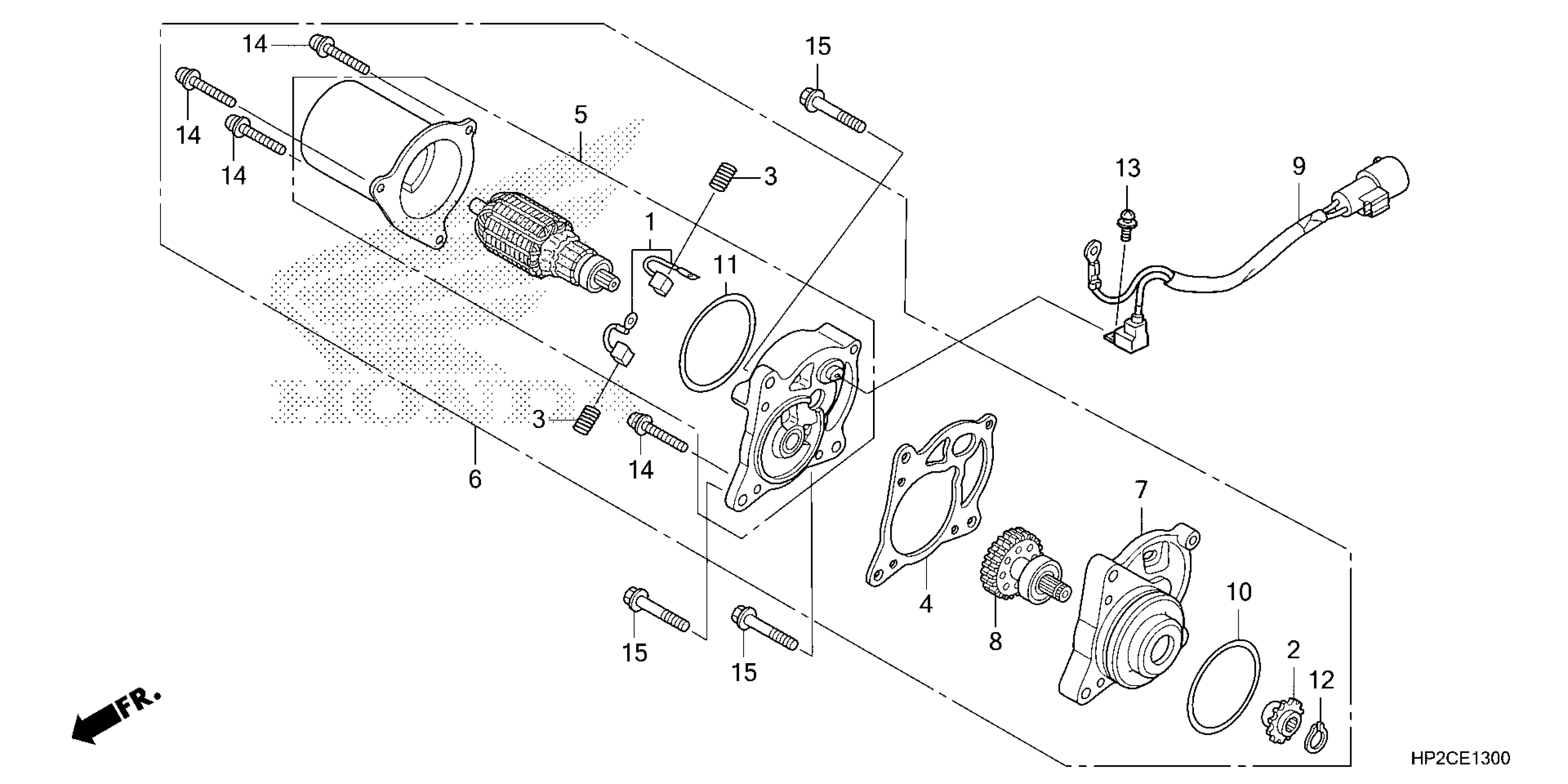

Honda TRX90X4AC (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE550-RJ100001 TO 1HFTE550-RJ199999 STARTING MOTOR Diagram

#

Description
Price

1

BRUSH SET

31201-KG8-004

$14.23

2

SPROCKET (12T)

31202-GB2-700

$30.22

3

SPRING, CARBON BRUSH

31204-KG8-004

$3.36

4

GASKET

31205-HP2-671

$1.80

5

MOTOR ONLY

31208-HP2-671

$176.54

6

MOTOR UNIT, STARTING

31210-HP2-671

$274.05

7

CASE A, FR.

31211-HP2-671

$33.00

8

GEAR, DRIVEN (MITSUBA)

31213-GB4-701

$99.95

9

SUB-HARNESS A

32410-HP2-671

$17.28

10

O-RING A

91308-GB4-701

$4.48

11

O-RING B

91309-GB2-701

$5.80

12

CIRCLIP

91309-GES-003

$0.48

13

SCREW-WASHER (4X6)

93892-04006-08

$1.18

14

SCREW-WASHER (5X30)

93892-05030-08

$2.34

15

BOLT, FLANGE (6X35) (Honda Code 2112209)

96001-06035-00

Unavailable
