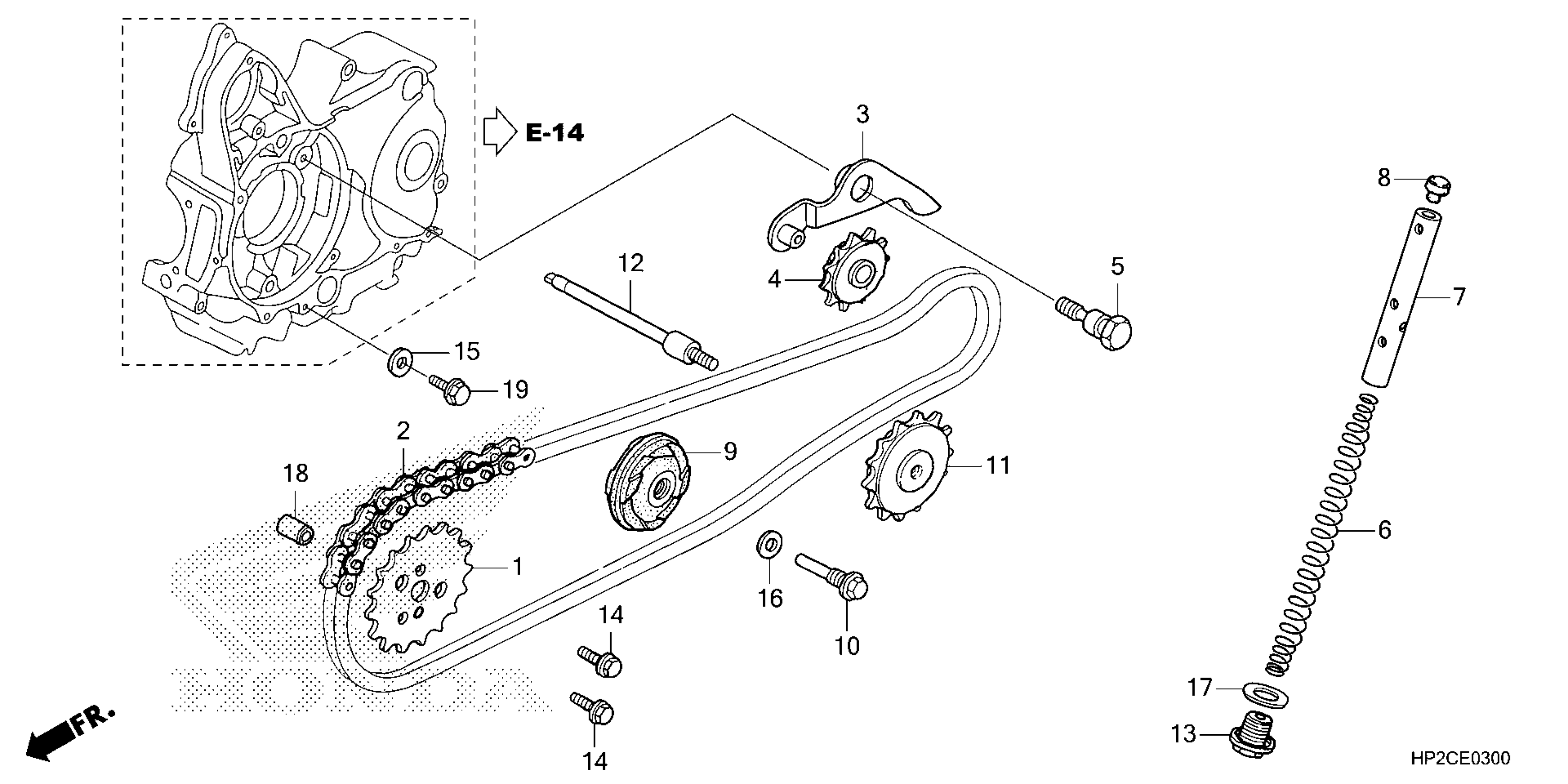

Honda TRX90X4AC (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE550-RJ100001 TO 1HFTE550-RJ199999 CAM CHAIN Diagram

SPROCKET, CAM (28T)

14321-GBG-900

$11.26

CHAIN, CAM (84L) (DAIDO)

14401-178-003

$44.30

ARM, CAM CHAIN TENSIONER

14500-035-020

$28.03

ROLLER, CAM CHAIN TENSIONER

14502-086-000

$16.33

PIVOT, CAM CHAIN TENSIONER

14531-035-000

$3.87

SPRING, CAM CHAIN TENSIONER

14541-GB4-681

$4.75

ROD, CAM CHAIN TENSIONER PUSH

14550-GB0-911

$21.35

HEAD, CAM CHAIN TENSIONER PUSH ROD

14566-086-030

$2.33

ROLLER, CAM CHAIN GUIDE

14610-086-010

$20.24

PIN, CAM CHAIN GUIDE ROLLER

14615-035-010

$2.84

SPROCKET, CAM CHAIN GUIDE (25T)

14670-GBJ-M30

$23.34

SPINDLE, CAM CHAIN GUIDE SPROCKET

14675-178-000

$28.95

BOLT, SEALING (14MM)

90081-035-000

$4.24

BOLT, KNOCK (5MM)

90083-GB6-911

$2.20

WASHER, SEALING (6.2X12X1.2) This part replaces 90461-357-000.

90463-KRM-840

$1.49

WASHER, SEALING (6.2X12X1.2)

90463-KRM-840

$1.49

WASHER (8MM)

90481-035-000

$1.87

WASHER, SEALING (14MM)

90544-KF0-000

$3.26

PIN, DOWEL (8X12)

90702-KFM-900

$1.49

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.62
