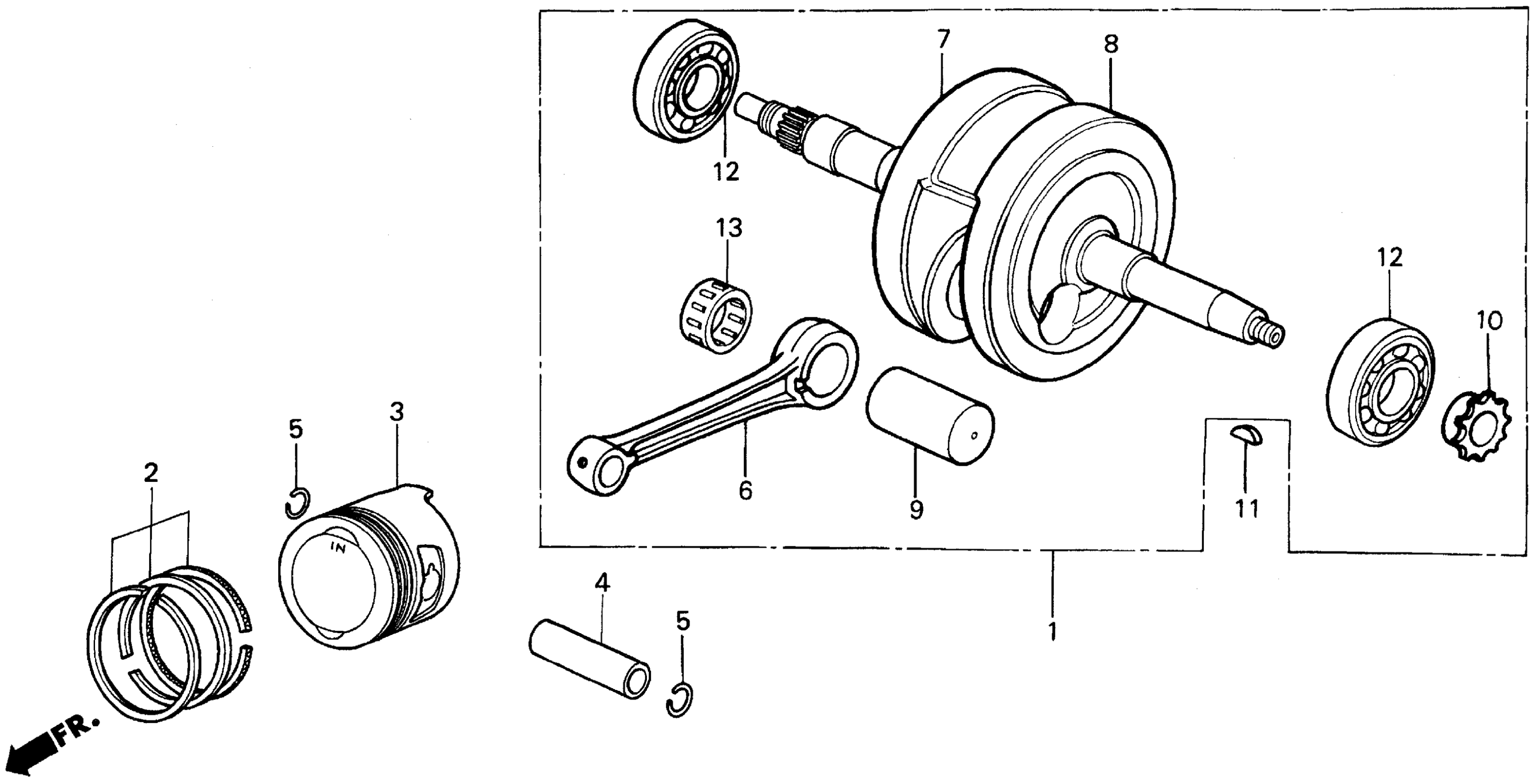

Honda TRX90A (99) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH3TE180-XK400001 CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT

13000-GN5-910

$509.85

2

RING SET, PISTON (STD) (RIKEN)

13011-GB5-305

$31.25

2

RING SET, PISTON (0.25) (RIKEN) | (Optional).

13012-GB5-305

$33.15

2

RING SET, PISTON (0.50) (RIKEN) | (Optional).

13013-GB5-305

$33.15

2

RING SET, PISTON (0.75) (RIKEN) | (Optional).

13014-GB5-305

$33.15

2

RING SET, PISTON (1.00) (RIKEN) | (Optional).

13015-GB5-305

$33.15

3

PISTON (STD)

13101-GT0-000

$47.87

3

PISTON (0.25) | (Optional).

13102-GT0-305

$59.75

3

PISTON (0.50) | (Optional).

13103-GT0-305

$59.75

3

PISTON (0.75) | (Optional).

13104-GT0-305

$48.87

3

PISTON (1.00) | (Optional).

13105-GT0-305

$59.75

4

PIN, PISTON

13111-GB0-910

$11.67

5

CLIP, PISTON PIN (13MM) This part replaces 13115-001-000.

94601-13000

$1.49

5

CLIP, PISTON PIN (13MM)

94601-13000

$1.49

6

ROD, CONNECTING

13201-GF6-300

$83.20

7

CRANKSHAFT, R.

13310-GN5-910

$166.16

8

CRANKSHAFT, L.

13321-GN5-910

$166.16

9

PIN, CRANK

13381-GF6-300

$38.51

10

SPROCKET, TIMING (14T)

14311-035-000

$19.28

11

KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000.

90701-HB6-010

$3.78

11

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

11

KEY, WOODRUFF (25X14X4) This part replaces 90741-003-010.

90701-HB6-010

$3.78

12

BEARING, RADIAL BALL (6304)

91001-GF6-004

$20.45

13

BEARING, CONNECTING ROD (RED)

91101-GF6-003

$23.13

13

BEARING, CONNECTING ROD (BLUE)

91102-GF6-003

$23.13

13

BEARING, CONNECTING ROD (WHITE)

91103-GF6-003

$23.13
