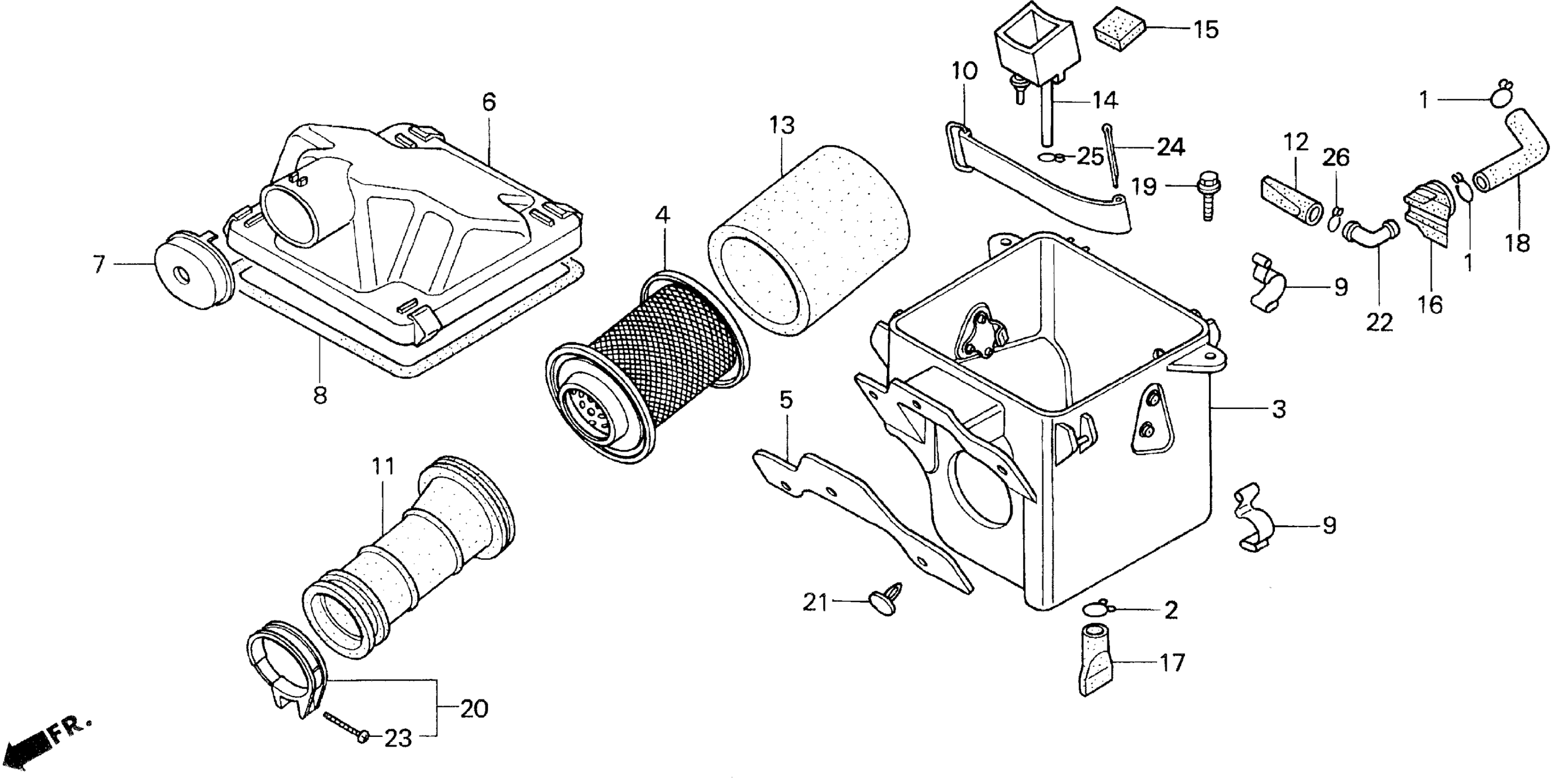

Honda TRX90A (99) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH3TE180-XK400001 AIR CLEANER (2) Diagram

#

Description
Price

1

CLIP, AIR HOSE (16MM)

18534-634-670

$4.48

2

CLIP, BREATHER TUBE

15772-292-010

$2.80

3

HOUSING, AIR CLEANER

17210-HF7-A20

Unavailable

4

HOLDER, AIR CLEANER ELEMENT

17212-KJ2-003

$45.23

5

RUBBER, SEAL

17214-HF7-000

Unavailable

6

LID, AIR CLEANER HOUSING

17217-HF7-000

Unavailable

7

CAP, IN.

17218-HF7-000

$6.18

8

SEAL, AIR CLEANER LID

17219-HF7-000

$5.22

9

SPRING, AIR CLEANER HOUSING LID (TOYO)

17223-HB3-003

$7.04

10

SPRING

17225-GN1-000

$8.02

11

TUBE, AIR CLEANER CONNECTING

17253-HF7-000

$24.56

12

FILTER, SUB-AIR CLEANER

17254-HF7-A20

$4.26

13

AIR CLEANER

17254-HF7-000

$8.55

14

JOINT, BREATHER

17255-HF7-A20

Unavailable

15

COVER, DUST

17256-HF7-A20

$2.20

16

RUBBER, SUB-AIR CLEANER MOUNTING

17316-HF7-A20

$14.54

17

TUBE, DRAIN This part replaces 17358-HA0-680.

17358-HM8-000

$4.60

17

TUBE, DRAIN

17358-HM8-000

$4.60

18

HOSE A, AIR IN.

18221-HF7-A20

Unavailable

19

BOLT, FLANGE (6X14)

90112-SB4-000

$5.16

20

BAND, AIR CLEANER CONNECTING TUBE (42) This part replaces 90652-GHB-640.

95018-42250

$7.19

20

BAND, AIR CLEANER CONNECTING TUBE (42)

95018-42250

$7.19

21

CLIP, COVER (LOWER)

90685-SA5-003

$9.26

22

JOINT, TUBE

91463-MC4-000

$5.50

23

SCREW, PAN (4X25)

93500-04025-0G

$0.59

24

PIN, SPLIT (3.0X45)

94201-30450

$0.94

25

CLIP, TUBE (B10)

95002-02100

$1.72

26

CLIP, TUBE (B12.5)

95002-02130

$1.04
