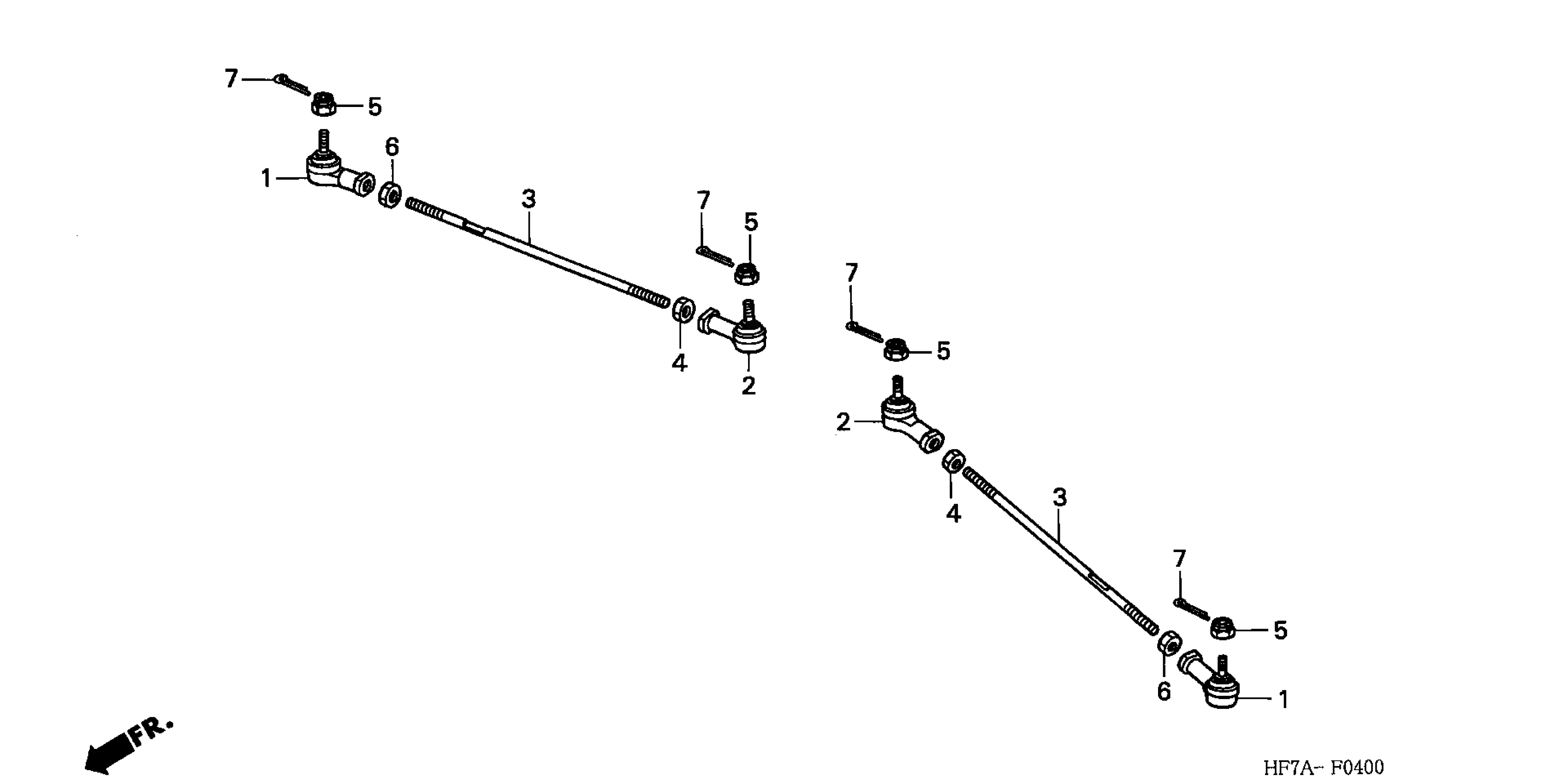

Honda TRX90A (05) SPORTRAX 90, JPN, VIN# JH2TE180-5K000001 TIE ROD Diagram

#

Description

Price

1

JOINT, BALL (RIGHT HAND THREAD) (OUTSIDE)

53150-HB3-003

$68.76

2

JOINT, BALL (LEFT HAND THREAD) (INSIDE)

53158-HB3-003

$64.05

3

TIE ROD

53521-HF7-000

$23.83

4

NUT, HEX. (10MM) (LEFT HAND THREAD)

90311-VM5-010

$2.92

5

NUT, CASTLE (10MM)

90320-601-000

$9.85

6

NUT, HEX. (10MM)

94030-10200

$1.49

7

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

7

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

7

PIN, SPLIT (2.0X22)

94201-20220

$1.49

7

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

7

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

7

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

7

PIN, SPLIT (2.0X35)

94201-20350

$1.49

7

PIN, COTTER (2.0X22)

94201-29220

$1.49
