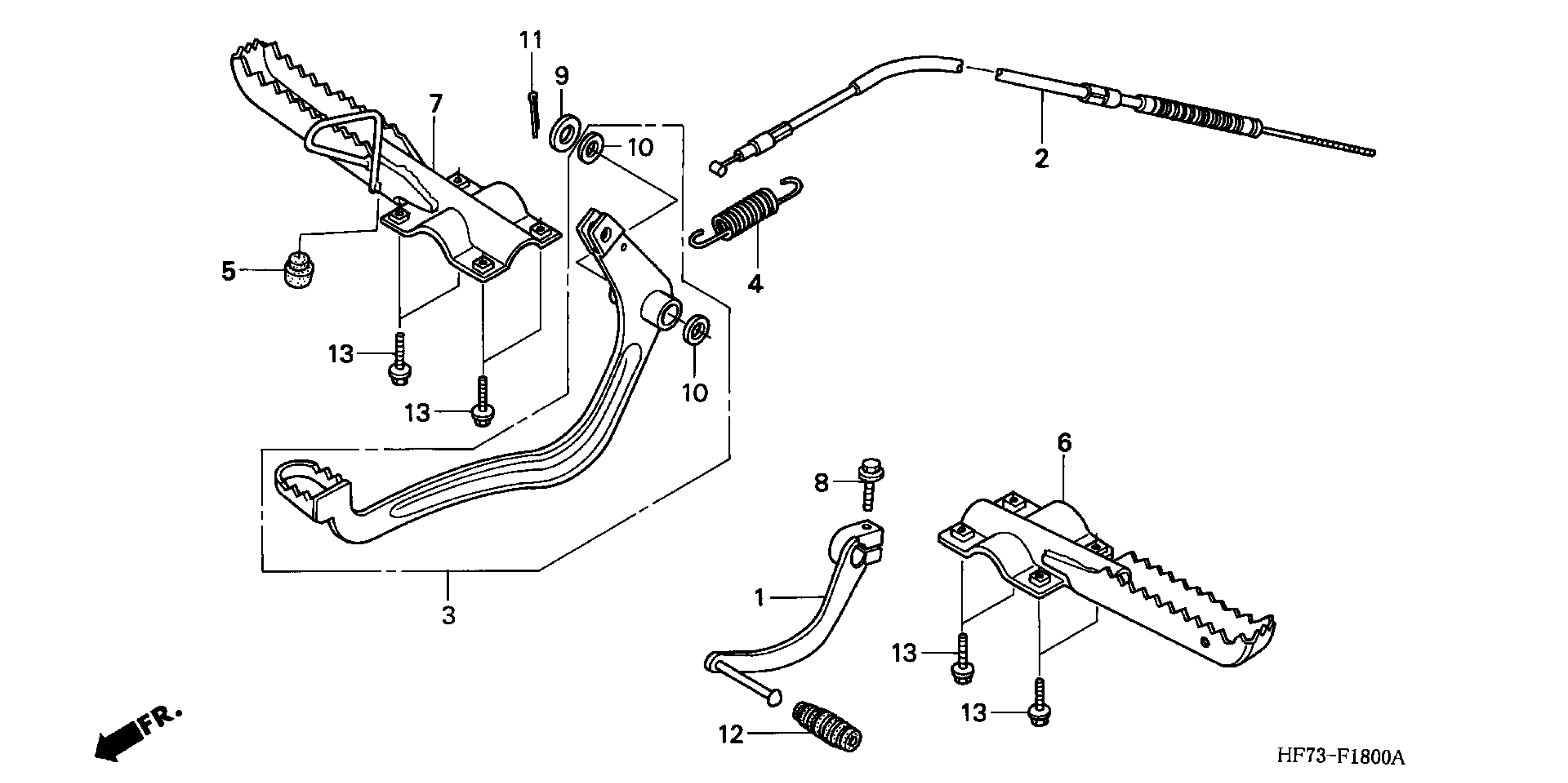

Honda TRX90A (05) SPORTRAX 90, JPN, VIN# JH2TE180-5K000001 STEP Diagram

PEDAL, GEARSHIFT

24700-HF7-000

Unavailable

CABLE, FOOT BRAKE

43470-HF7-003

Unavailable

PEDAL, BRAKE

46500-HF7-000

Unavailable

SPRING, BRAKE PEDAL

46514-KZ9-000

$5.14

RUBBER, STAND STOPPER

50505-GA7-730

$2.13

BAR, STEP

50610-HF1-670

Unavailable

BAR, STEP

50610-HF7-000

Unavailable

BOLT, FLANGE (6X20)

90118-968-000

$4.24

WASHER (17.5MM)

90512-303-000

$1.77

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.69

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, SPLIT (3.0X45)

94201-30450

$1.49

RUBBER, CHANGE PEDAL

95011-40000

$1.49

BOLT, FLANGE (8X16)

95701-08016-07

$1.80
