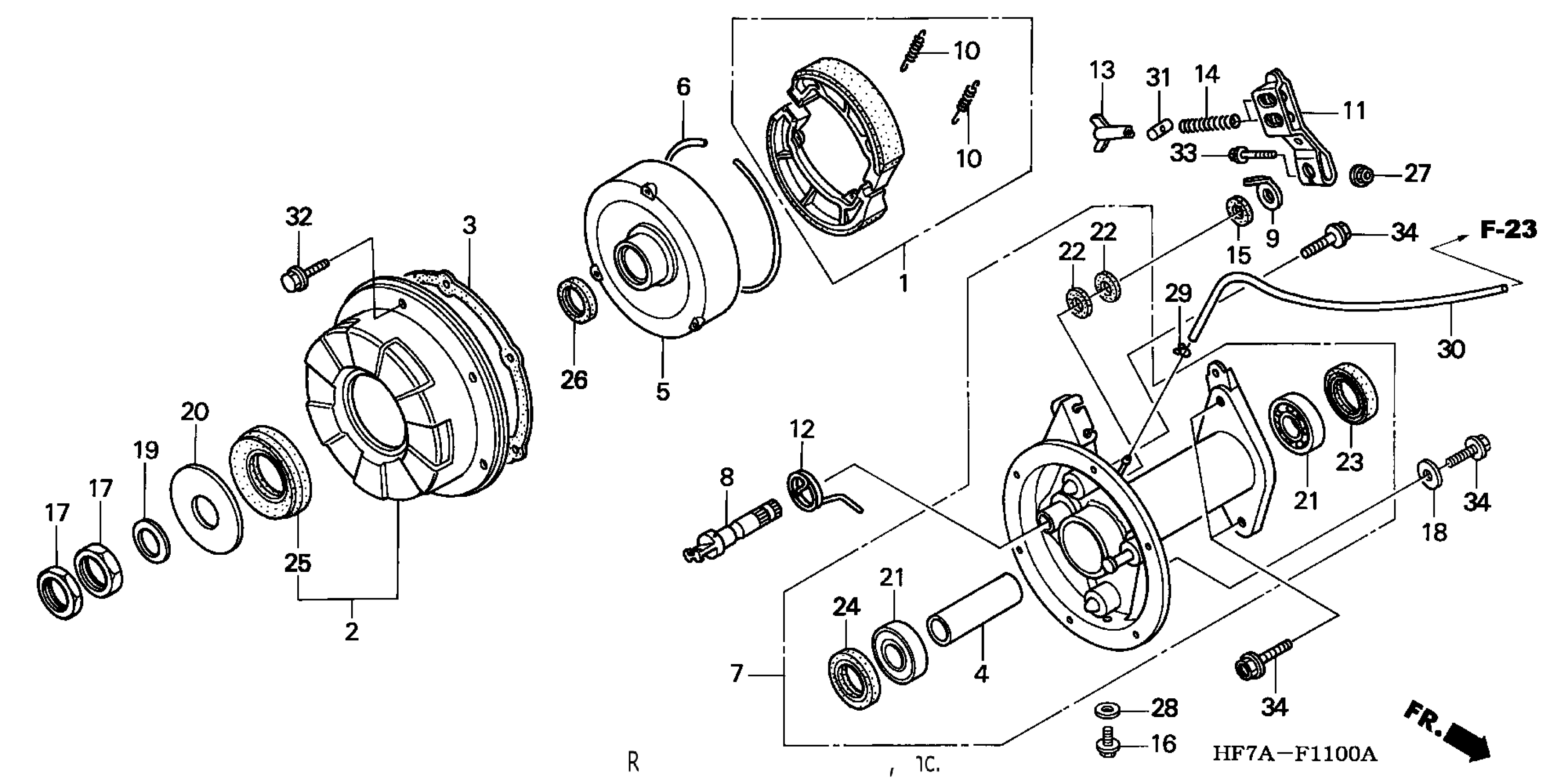

Honda TRX90A (05) SPORTRAX 90, JPN, VIN# JH2TE180-5K000001 REAR BRAKE DRUM Diagram

#

Description
Price

1

SHOE SET, BRAKE (JB)

06430-HF7-A30

$32.09

1

SHOE SET, BRAKE This part replaces 06430-HF7-000.

06430-HF7-A30

$32.09

2

COVER ASSY., DRUM

40520-HF1-670

$79.23

3

GASKET, BRAKE COVER

40539-HC3-000

$16.35

4

COLLAR, RR. AXLE

42621-HF7-000

$27.29

5

DRUM, RR. BRAKE

42622-HC3-000

$285.86

6

RING, DAMPER

42624-HB3-000

$16.63

7

PANEL SET, RR. BRAKE

43010-HF7-760

Unavailable

8

CAM, RR. BRAKE

43141-HF7-000

$34.41

9

INDICATOR, RR. BRAKE

43145-HB3-000

$4.94

10

SPRING, BRAKE SHOE

43151-329-000

$2.62

11

ARM, RR. BRAKE

43410-HF1-670

$24.68

12

SPRING, RR. BRAKE ARM RETURN

43413-HF1-670

$5.84

13

NUT, BRAKE ADJUSTING

43459-HM5-A10

$8.53

13

NUT, BRAKE ADJUSTING This part replaces 43459-VM4-000.

43459-HM5-A10

$8.53

14

SPRING, RR. BRAKE ROD (NA USE ALT:95014-73100)

43467-HA0-000

Unavailable

15

DUST SEAL, BRAKE CAM

45134-250-000

Unavailable

16

BOLT, DRAIN PLUG (12MM)

90131-HF1-670

$4.22

17

NUT, AXLE

90307-HB6-000

$16.34

18

WASHER, SPECIAL (12MM)

90406-751-700

$5.74

19

WASHER, TAPER

90481-HB6-000

$7.18

20

WASHER (31X86X1.5)

90501-HB6-000

$23.86

21

BEARING, RADIAL BALL (32X58X13)

91055-HA0-681

$38.31

22

DUST SEAL (14X20X4) (NOK)

91208-HF7-005

$5.41

23

DUST SEAL (44X58X8) (ARAI)

91251-HF7-003

$12.44

24

DUST SEAL (42X58X8)

91252-HB6-000

$11.41

25

DUST SEAL (45X76X19)

91253-HC4-003

$14.24

26

RING, SEAL

91351-HB6-003

$2.93

27

NUT, FLANGE (6MM)

94050-06000

$0.59

28

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.12

29

CLIP, TUBE (B6.5)

95002-02650

$1.35

30

BULK HOSE, VACUUM (3.5X1000) (3.5X500)

95005-35001-30M

$7.74

31

JOINT B, BRAKE ARM

95015-32001

$0.86

32

BOLT, FLANGE (6X12)

95701-06012-07

$1.48

33

BOLT, FLANGE (6X30)

95701-06030-00

$1.71

34

BOLT, FLANGE (12X25)

95701-12025-08

$2.80
