Description

Price

1

COVER, OIL FILTER

15431-HF7-010

$25.03

2

GASKET, OIL FILTER

15439-HF7-000

$7.96

3

WEIGHT SET, CLUTCH

22535-HF7-305

$90.08

4

SPRING, ONE-WAY RETAINER

22606-GN5-910

$3.10

5

PLATE, PRIMARY DRIVE This part replaces 22610-GN5-910.

22610-KVR-C00

$41.72

6

INNER, ONE-WAY CLUTCH

22630-GB2-000

$39.18

7

SPRING, PRIMARY CLUTCH

22641-GN5-910

$5.25

8

CLUTCH OUTER ASSY., PRIMARY

22660-GN5-912

$171.26

9

RUBBER, CLUTCH DAMPER

22804-GB2-000

$3.88

10

GEAR, PRIMARY DRIVE (17T/17T)

23120-GN5-913

$101.05

11

SUB-GEAR (17T)

23122-GN5-910

$25.70

12

COLLAR, SIDE

23123-GN5-910

$19.23

13

SPRING, SUB-GEAR

23124-GN5-910

$5.41

14

PIN (F.C.C.)

23125-GN5-910

$3.72

15

SET (SOCKET5X10) This part replaces 90089-GT9-000.

90089-GT9-305

$3.08

16

NUT, LOCK (14MM)

90231-087-010

$3.80

17

WASHER (30X45X0.8)

90401-GB2-000

$5.26

18

WASHER, LOCK

90431-GN5-910

$4.02

19

WASHER B, LOCK

90432-086-000

$4.44

20

WASHER, THRUST (8MM)

90442-GN5-910

$2.11

21

WASHER, THRUST (19X28X1.5)

90453-GB2-000

$3.20

22

CIRCLIP (INNER) (45MM)

90455-GB2-000

$6.43

23

CIRCLIP (7MM)

90605-166-720

$1.80

24

ROLLER (5X8)

91101-GB2-000

$3.85

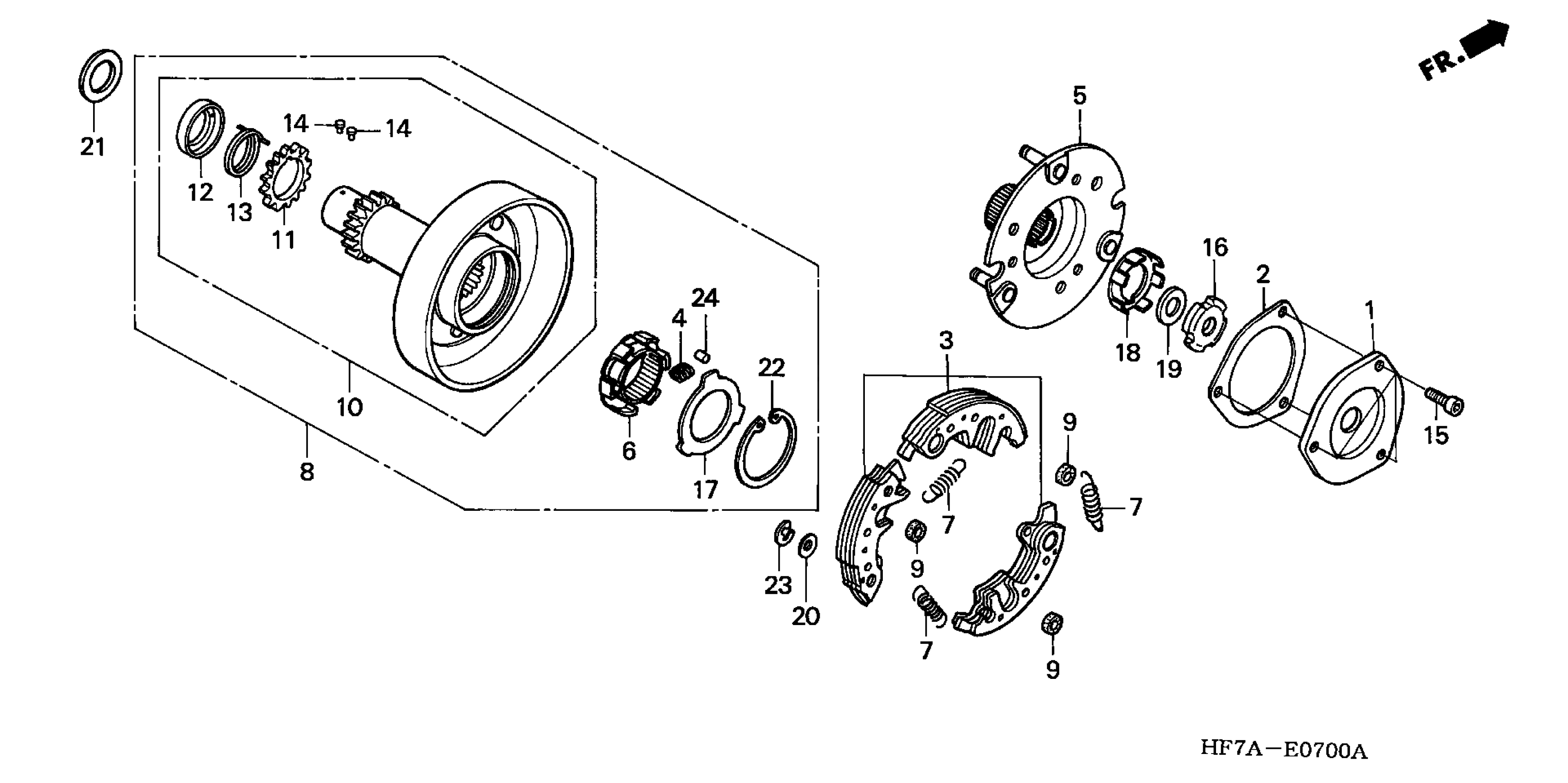

Honda TRX90A (05) SPORTRAX 90, JPN, VIN# JH2TE180-5K000001 ONE-WAY CLUTCH Diagram
