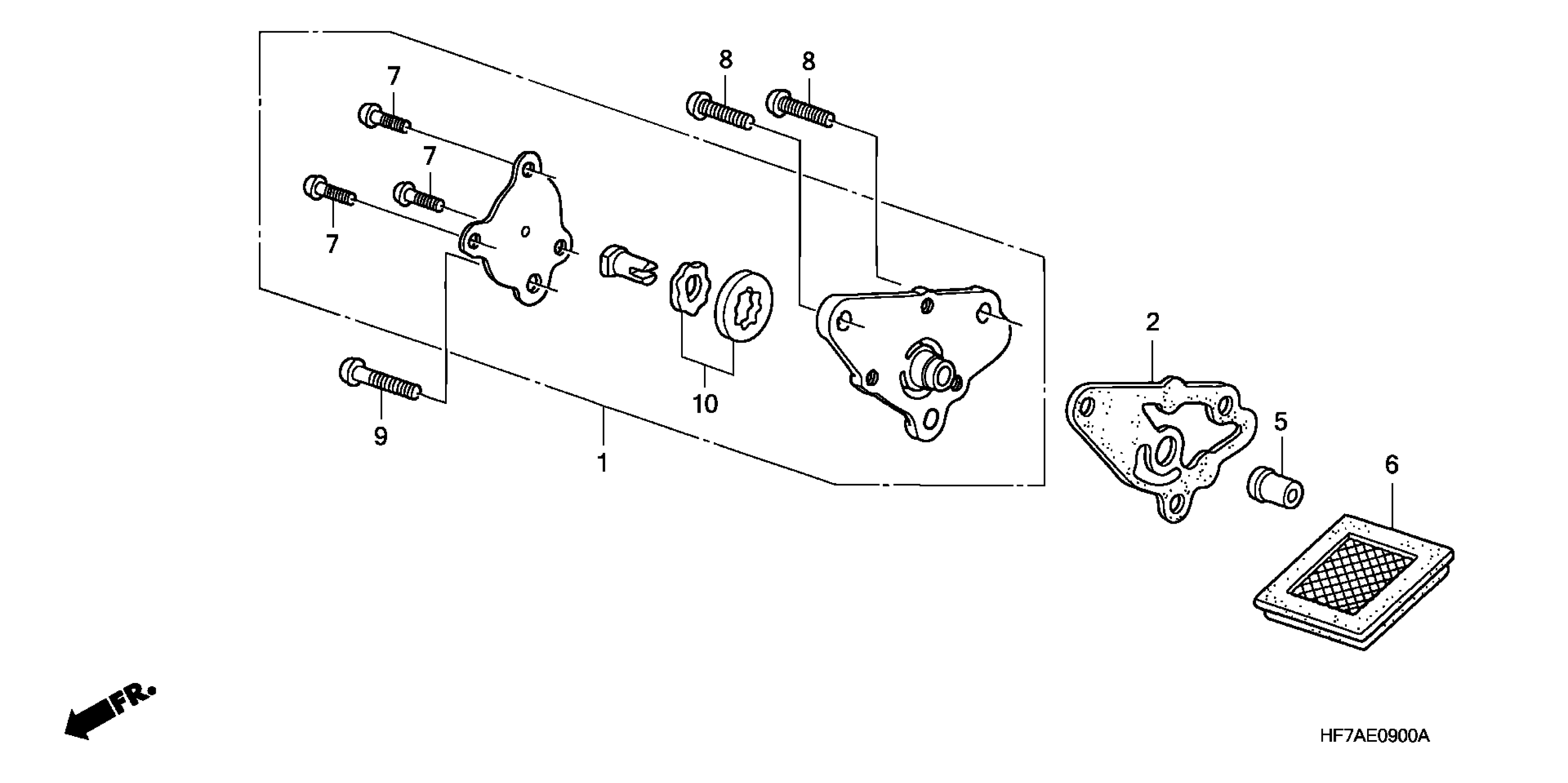

Honda TRX90A (05) SPORTRAX 90, JPN, VIN# JH2TE180-5K000001 OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL This part replaces 15100-GBG-931.

15100-KWB-600

$7.14

1

PUMP ASSY., OIL

15100-KWB-600

$7.14

2

GASKET, OIL PUMP BODY

15119-178-000

$3.59

3

ROTOR, OIL PUMP (INNER)

15331-GF6-000

Unavailable

4

ROTOR, OIL PUMP (OUTER)

15332-GF6-000

Unavailable

5

PIVOT, OIL PUMP

15384-178-000

$5.26

6

SCREEN, OIL FILTER

15421-035-010

$3.54

7

SCREW, PAN (5X10)

93500-05010-0A

Unavailable

8

SCREW, PAN (6X16)

93500-06016-0A

$1.04

9

SCREW, PAN (6X22)

93500-06022-0A

$1.12

10

ROTOR SET, OIL PUMP

15021-GF6-000

$18.59
