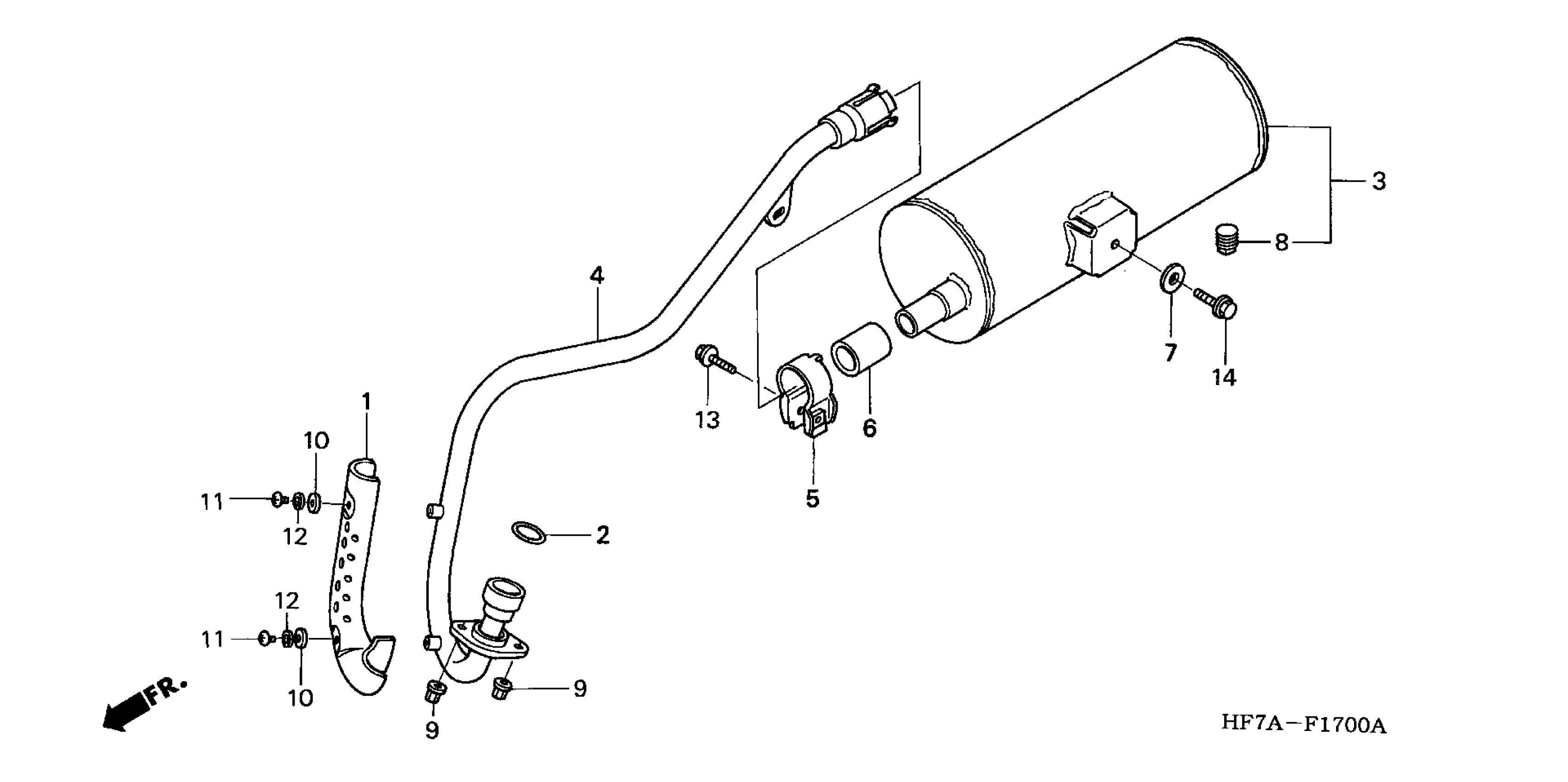

Honda TRX90A (05) SPORTRAX 90, JPN, VIN# JH2TE180-5K000001 MUFFLER Diagram

COVER A, EX. PIPE *NH106* (HEATPROOF BLACK) This part replaces 18240-GCF-305ZA.

18240-165-600ZA

$21.82

COVER A, EX. PIPE *NH106* (HEATPROOF BLACK)

18240-165-600ZA

$21.82

GASKET, EX. PIPE

18291-HB2-900

$3.48

MUFFLER

18310-HF7-000

$168.86

PIPE, EX.

18320-HF7-A20

Unavailable

BAND, EX. PIPE

18373-KC1-920

Unavailable

GASKET, MUFFLER

18391-HB7-000

$10.44

WASHER, PLAIN (10MM)

90019-KY4-900

Unavailable

BOLT, ARRESTER

90183-HM5-850

$2.28

NUT, SPECIAL (6MM)

90304-HB3-771

$5.64

WASHER (6X12.5X2)

90437-GM0-000

$1.67

SCREW, PAN (5X8)

93500-05008-0B

$1.12

WASHER, SPRING (5MM)

94111-05000

$1.03

BOLT, FLANGE (8X20)

95701-08020-07

$1.70

BOLT, FLANGE (10X16)

95701-10016-00

$1.16
