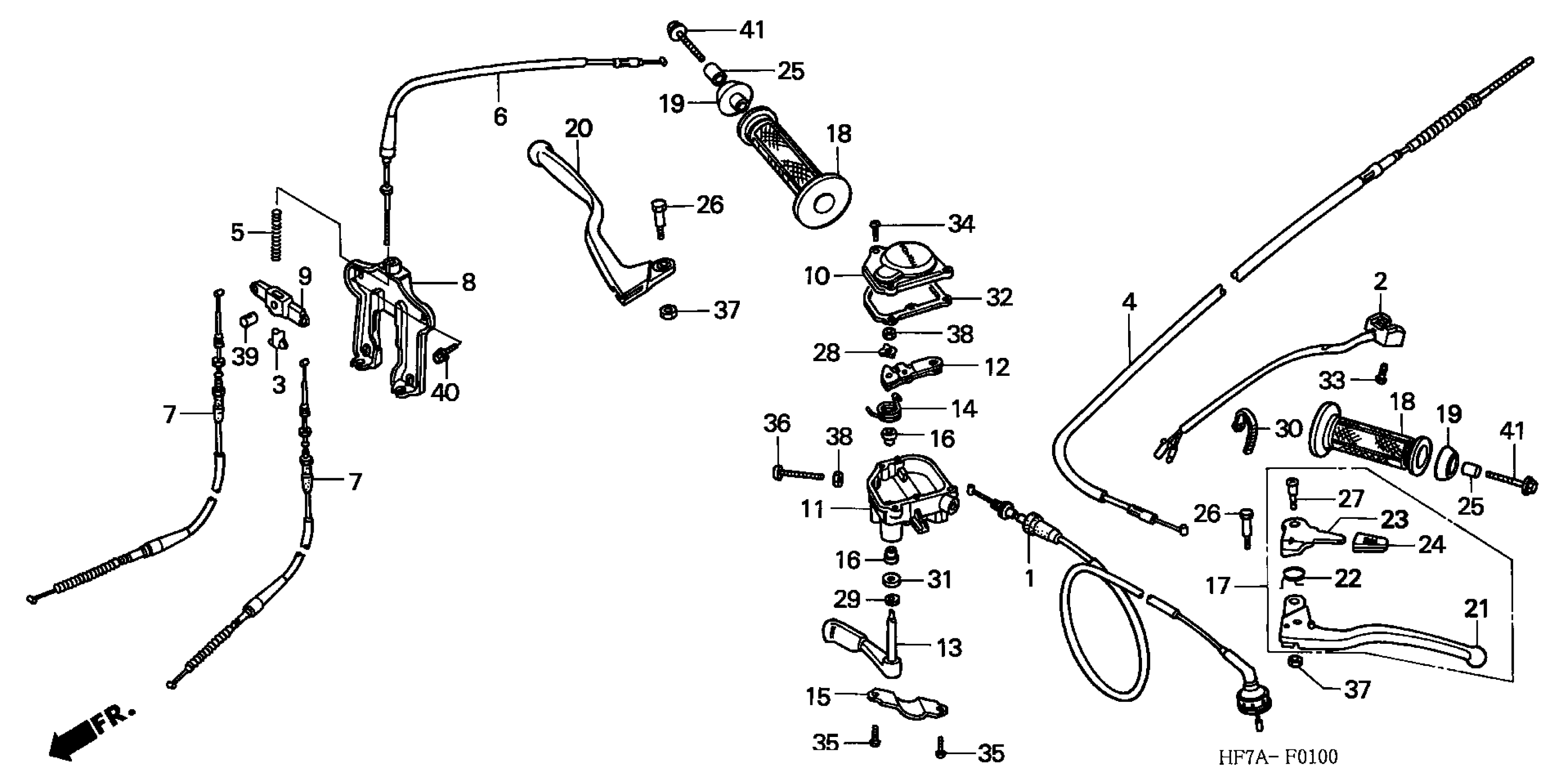

Honda TRX90A (05) SPORTRAX 90, JPN, VIN# JH2TE180-5K000001 HANDLE LEVERS + SWITCH + CABLES Diagram

#

Description
Price

1

CABLE SET, THROTTLE

17920-HF7-305

Unavailable

2

SWITCH ASSY., ENGINE STOP

35300-HF7-000

Unavailable

3

NUT, BRAKE ADJUSTING

43459-HB2-000

$9.96

4

CABLE, HAND BRAKE

43460-HF7-J21

Unavailable

5

SPRING B, BRAKE ROD

43468-VM6-680

$2.67

6

CABLE, FR. FIRST BRAKE

45450-HF7-003

Unavailable

7

CABLE, FR. SECOND BRAKE

45460-HF7-003

$32.56

8

BODY, EQUALIZER

47609-HB2-000

$31.37

9

PLATE, EQUALIZER

47610-HB2-000

$14.28

10

COVER, THROTTLE CASE

53141-HC3-000

Unavailable

11

CASE, THROTTLE LEVER

53142-HC3-000

Unavailable

12

ARM, THROTTLE

53144-HF7-000

$11.16

13

LEVER, THROTTLE

53145-HF7-000

$21.06

13

LEVER, THROTTLE This part replaces 53145-HP2-305.

53145-HF7-000

$21.06

14

SPRING, THROTTLE RETURN

53146-HA0-000

$4.20

15

HOLDER, THROTTLE CASE

53147-HC3-000

$8.38

16

BUSH, THROTTLE PIVOT

53148-HA0-000

$7.45

17

LEVER ASSY., RR. BRAKE

53150-HF7-000

$44.86

18

GRIP, L. HANDLE (COO) This part replaces 53166-GM9-740.

53166-HP2-305

$6.98

18

GRIP, L. HANDLE (COO)

53166-HP2-305

$6.98

19

GUARD, HANDLE END

53167-958-680

$5.96

20

LEVER, R. HANDLEBAR

53175-HC3-000

$23.07

21

LEVER, L. HANDLEBAR (COO) This part replaces 53178-969-680.

53178-HP2-305

$20.90

22

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.22

23

LEVER, PARKING BRAKE LOCK

53192-HA8-771

$10.34

24

CAP, PARKING LEVER

53193-HA0-770

$5.73

25

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.78

26

BOLT, HANDLE LEVER PIVOT

90113-HA0-770

$3.41

27

SCREW, PARKING LEVER PIVOT

90115-HA6-000

$3.80

28

WASHER, LOCK (6MM)

90501-HA0-000

$2.80

29

WASHER (9X20)

90504-HA0-000

$2.07

30

BAND, WIRE HARNESS

90651-MA6-720

$3.47

31

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.66

31

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.66

32

GASKET, THROTTLE CASE

91532-HA0-020

$5.73

33

SCREW, PAN (4X10)

93500-04010-0H

$0.83

34

SCREW, PAN (4X16)

93500-04016-0G

$0.75

35

SCREW, PAN (5X14)

93500-05014-0G

$3.32

36

SCREW, PAN (6X35)

93500-06035-0A

$1.00

37

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

37

NUT, HEX. (6MM)

94001-06200-0S

$1.19

38

NUT, HEX. (6MM)

94002-06000-0S

$1.19

39

JOINT B, BRAKE ARM

95015-32001

$0.86

40

BOLT, FLANGE (6X12)

95701-06012-08

$1.48

41

BOLT, FLANGE (6X25)

95701-06025-07

$1.64
