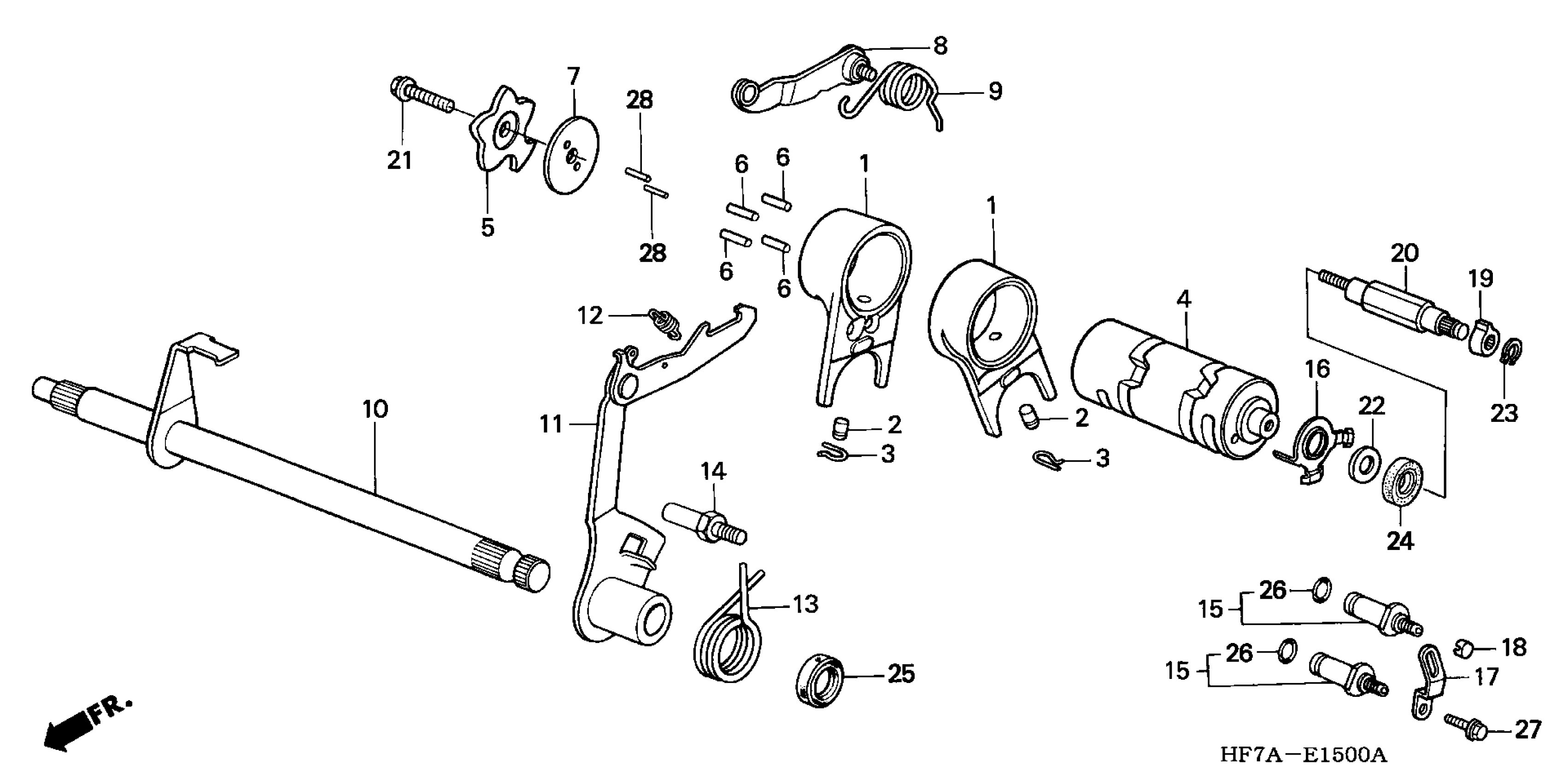

Honda TRX90A (05) SPORTRAX 90, JPN, VIN# JH2TE180-5K000001 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, GEARSHIFT

24211-GB4-770

$54.82

2

PIN, GEARSHIFT FORK GUIDE

24261-121-742

$2.33

3

CLIP, GEARSHIFT FORK GUIDE PIN

24263-028-000

$2.66

4

DRUM, GEARSHIFT

24301-HF7-000

Unavailable

5

PLATE, GEARSHIFT DRUM STOPPER

24411-HF7-000

$15.45

6

PIN, GEARSHIFT DRUM This part replaces 24421-200-000.

24421-230-000

$5.80

6

PIN, GEARSHIFT DRUM

24421-230-000

$5.80

7

PLATE, GEARSHIFT DRUM SIDE

24425-198-900

$3.81

8

ARM, SHIFT DRUM STOPPER

24430-HF7-000

$24.74

9

SPRING, SHIFT DRUM STOPPER

24435-HF7-000

$5.41

10

SPINDLE, GEARSHIFT

24610-GN5-900

$47.70

11

ARM, GEARSHIFT

24630-GB4-772

Unavailable

12

SPRING, GEARSHIFT ARM

24641-041-000

$2.90

13

SPRING, GEARSHIFT RETURN

24651-041-000

$5.92

14

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

15

CONTACT ASSY., NEUTRAL SWITCH

35750-GB4-680

$10.15

16

ROTOR, NEUTRAL SWITCH

35753-HF7-000

Unavailable

17

PLATE, FIXING

35755-GB4-771

Unavailable

18

CAP

35756-GB4-770

$1.75

19

INDICATOR, NEUTRAL

35762-HF7-000

$4.17

20

SHAFT, INDICATOR

35763-HF7-000

Unavailable

21

BOLT, KNOCK (6MM)

90071-171-010

$2.39

22

WASHER, GEARSHIFT DRUM SIDE

90417-041-000

$2.19

23

CIRCLIP (5MM)

90605-230-000

$2.92

24

OIL SEAL (11.6X19X6)

91204-HB2-003

$7.40

25

OIL SEAL (11.6X24X10) (ARAI)

91208-KB4-671

$4.06

26

O-RING (7X1.7)

91312-107-000

$3.18

27

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

28

ROLLER (3X8.5)

96220-30085

$1.49
