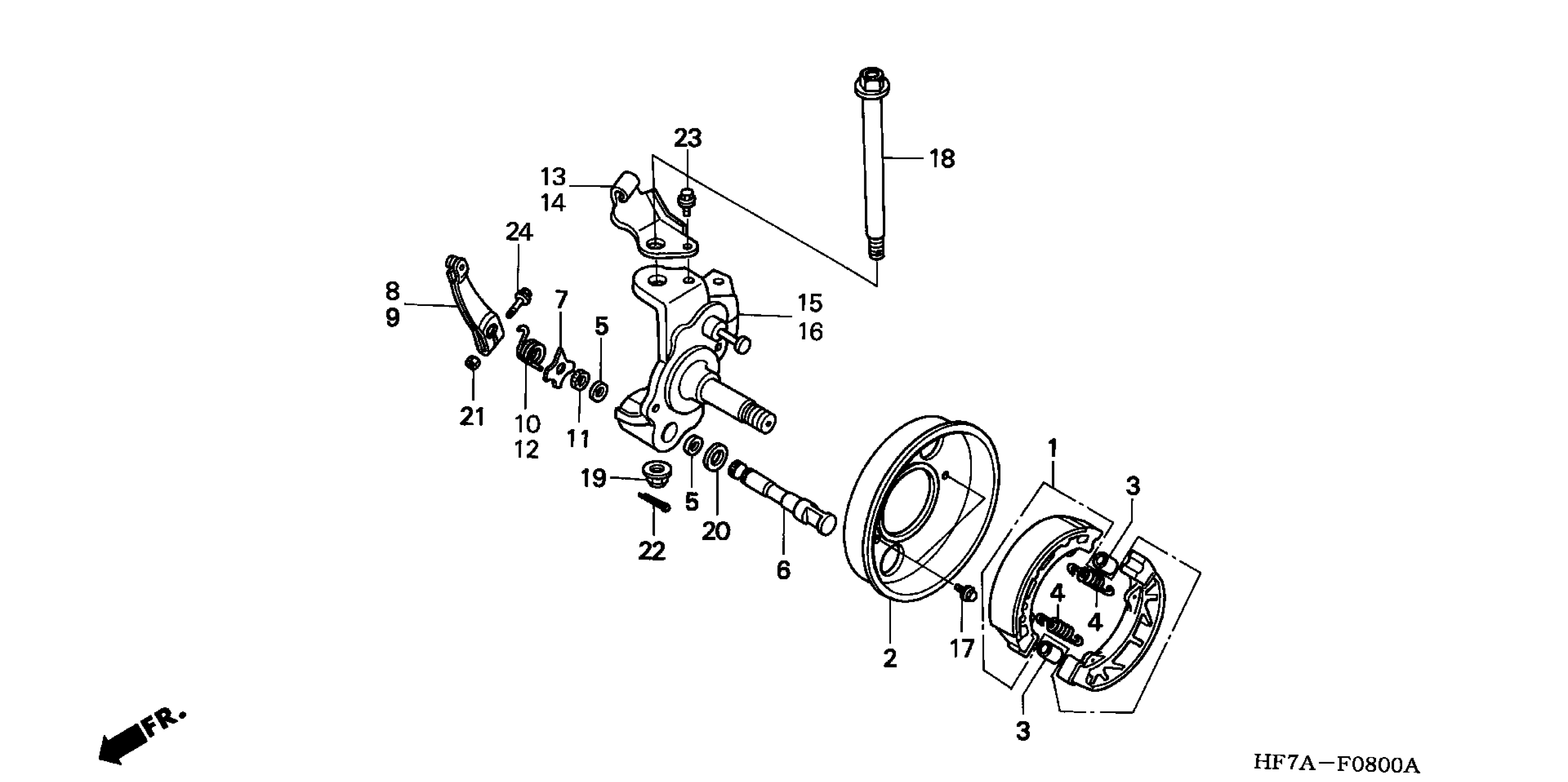

Honda TRX90A (05) SPORTRAX 90, JPN, VIN# JH2TE180-5K000001 FRONT BRAKE PANEL Diagram

#

Description
Price

1

SHOE SET, BRAKE (ASK)

06450-HF7-J20

$29.28

2

PLATE, SEAL

44650-HF7-000

$22.18

3

RUBBER, SHOE SPRING

45104-HC3-000

$1.83

4

SPRING, BRAKE SHOE

45133-028-000

$2.03

5

DUST SEAL, BRAKE CAM (NOK)

45134-GC4-701

$4.48

6

CAM, FR. BRAKE

45141-HC3-000

Unavailable

7

INDICATOR, BRAKE

45145-HC3-000

$6.69

8

ARM, R. FR. BRAKE

45410-HC3-000

$18.15

9

ARM, L. FR. BRAKE

45420-HC3-000

$18.15

10

SPRING, R. FR. BRAKE ARM

45435-HC3-000

$6.77

11

DUST SEAL, BRAKE CAM

45437-HC3-000

$2.31

12

SPRING, L. FR. BRAKE ARM

45445-HC3-000

$6.77

13

RECEIVER, R. BRAKE CABLE

45453-HC3-000

$15.54

14

RECEIVER, L. BRAKE CABLE

45463-HC3-000

$16.25

15

KNUCKLE, R.

51210-HC3-000

$144.15

16

KNUCKLE, L.

51220-HC3-000

$146.97

17

BOLT, FLANGE

90118-958-003

$3.24

18

BOLT, KING PIN

90198-HC3-000

$19.33

19

NUT, SELF-LOCK (12MM) (CLINCH) (SATO RASHI)

90215-SB0-003

$2.19

20

WASHER, THRUST (12.2MM)

90401-MK5-000

$2.92

21

NUT, FLANGE (6MM)

94050-06080

$1.49

22

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

22

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

22

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

22

PIN, SPLIT (3.0X45)

94201-30450

$1.49

23

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

24

BOLT, FLANGE (6X28)

95701-06028-08

$2.08
