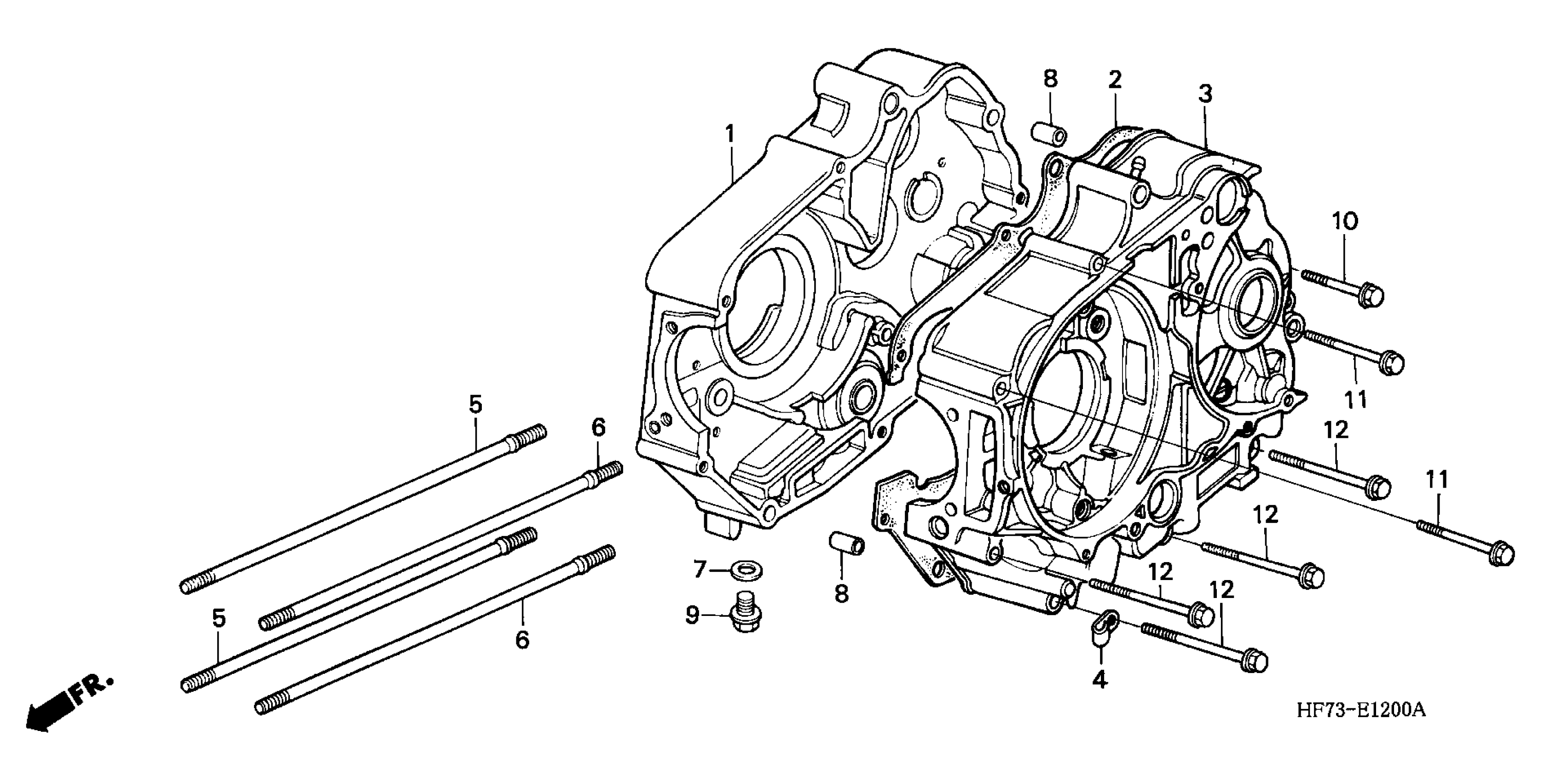

Honda TRX90A (05) SPORTRAX 90, JPN, VIN# JH2TE180-5K000001 CRANKCASE Diagram

#

Description

Price

1

CRANKCASE, R.

11100-GB6-911

$290.43

2

GASKET, CRANKCASE This part replaces 11191-GW8-680.

11191-GW8-682

$14.29

3

CRANKCASE, L.

11200-GN5-910

Unavailable

4

STAY, OVERFLOW TUBE

16110-GG2-750

$5.49

5

BOLT A, CYLINDER STUD (6X198)

90031-GF6-000

$6.21

6

BOLT B, CYLINDER STUD (6X205.5)

90032-GF6-000

$6.21

7

GASKET, DRAIN PETCOCK (12.5X20)

90407-259-000

$2.92

8

PIN A, DOWEL (10X14) This part replaces 90703-HC4-000.

94301-10140

$2.28

8

PIN A, DOWEL (10X14)

94301-10140

$2.28

9

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

10

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

11

BOLT, FLANGE (6X60)

96001-06060-00

$2.06

12

BOLT, FLANGE (6X65)

96001-06065-00

$2.34
