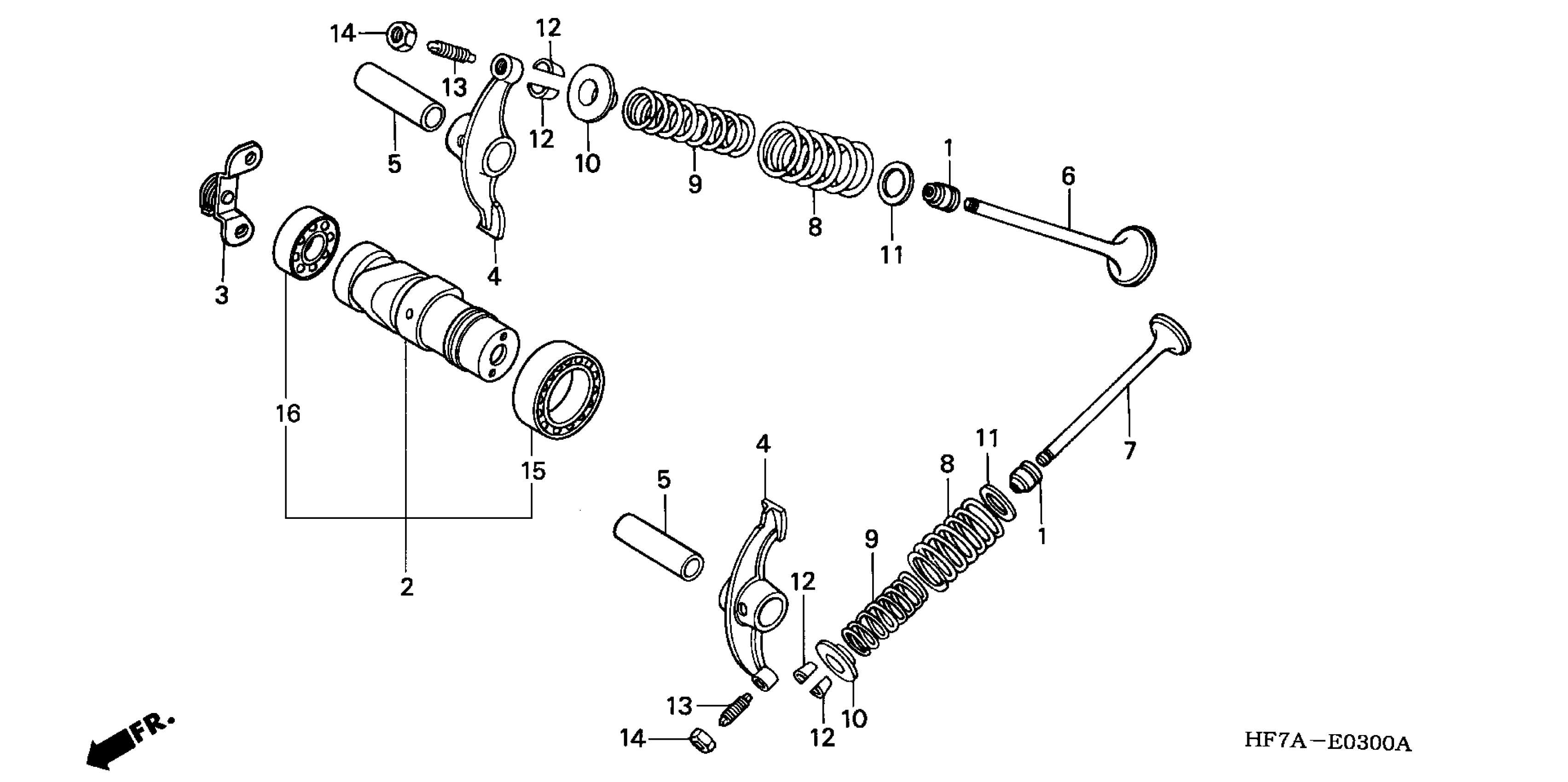

Honda TRX90A (05) SPORTRAX 90, JPN, VIN# JH2TE180-5K000001 CAMSHAFT + VALVE Diagram

SEAL, VALVE STEM (NOK)

12209-GB4-681

$6.32

CAMSHAFT

14100-HF7-A10

Unavailable

PLATE, STOPPER

14150-GN5-911

Unavailable

ARM, VALVE ROCKER

14431-GN5-911

$39.33

SHAFT, VALVE ROCKER ARM

14451-035-000

$8.80

VALVE, IN.

14711-GN5-913

$30.67

VALVE, EX.

14721-GF6-010

$53.25

SPRING, VALVE (OUTER) (NIPPON HATSUJO)

14751-GN5-911

$6.18

SPRING, VALVE (INNER) (NIPPON HATSUJO)

14761-GN5-911

$4.62

RETAINER, VALVE SPRING

14771-GB4-680

$8.68

SEAT, VALVE SPRING (OUTER)

14775-MA6-000

$3.67

COTTER, VALVE

14781-MA6-000

$2.92

SCREW, TAPPET ADJUSTING

90012-333-000

$2.75

NUT, TAPPET ADJUSTING

90206-001-000

$1.66

BEARING, RADIAL BALL (6905) (NTN)

91007-GB6-912

$19.66

BEARING, RADIAL BALL (6902Z)

91008-GB6-912

$17.44
