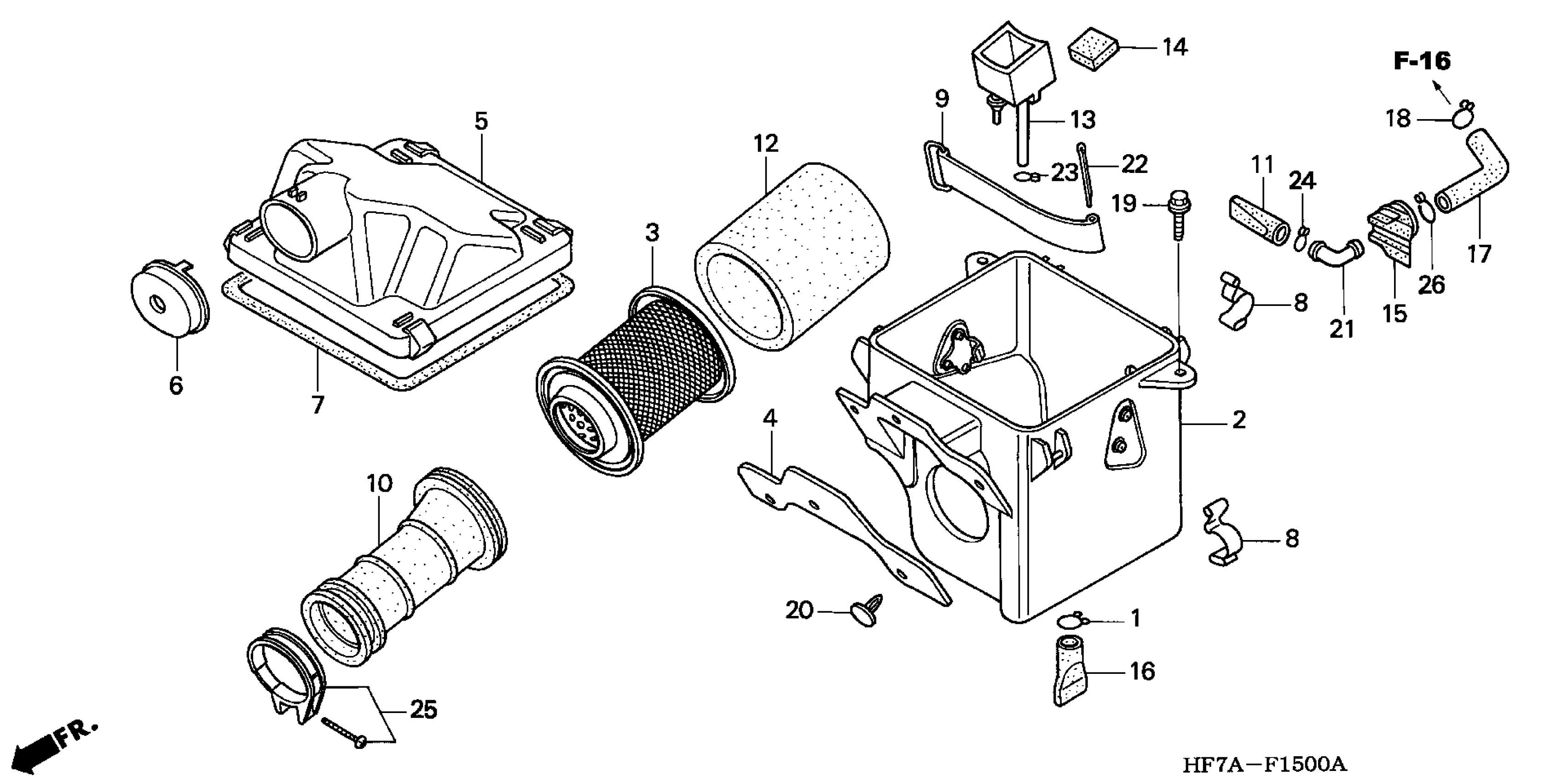

Honda TRX90A (05) SPORTRAX 90, JPN, VIN# JH2TE180-5K000001 AIR CLEANER Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-292-010

$2.80

2

HOUSING, AIR CLEANER

17210-HF7-A20

Unavailable

3

HOLDER, AIR CLEANER ELEMENT

17212-KJ2-003

$45.23

4

RUBBER, SEAL

17214-HF7-000

Unavailable

5

LID, AIR CLEANER HOUSING

17217-HF7-000

Unavailable

6

CAP, IN.

17218-HF7-000

$6.18

7

SEAL, AIR CLEANER LID

17219-HF7-000

$5.22

8

SPRING, AIR CLEANER HOUSING LID (TOYO)

17223-HB3-003

$7.04

9

SPRING

17225-GN1-000

$8.02

10

TUBE, AIR CLEANER CONNECTING

17253-HF7-000

$24.56

11

FILTER, SUB-AIR CLEANER

17254-HF7-A20

$4.26

12

AIR CLEANER

17254-HF7-000

$8.55

13

JOINT, BREATHER

17255-HF7-A20

Unavailable

14

COVER, DUST

17256-HF7-A20

$2.20

15

RUBBER, SUB-AIR CLEANER MOUNTING

17316-HF7-A20

$14.54

16

TUBE, DRAIN This part replaces 17358-HA0-680.

17358-HM8-000

$4.60

16

TUBE, DRAIN

17358-HM8-000

$4.60

17

HOSE A, AIR IN.

18221-HF7-A20

Unavailable

18

CLIP, AIR HOSE (16MM)

18534-634-670

$4.48

19

BOLT, FLANGE (6X14)

90112-SB4-000

$5.16

20

CLIP, COVER (LOWER)

90685-SA5-003

$9.26

21

JOINT, TUBE

91463-MC4-000

$5.50

22

PIN, SPLIT (3.0X45)

94201-30450

$0.94

23

CLIP, TUBE (B10)

95002-02100

$1.72

24

CLIP, TUBE (B12.5)

95002-02130

$1.04

25

BAND, AIR CLEANER CONNECTING TUBE (42)

95018-42250

$7.19

26

CLIP B, BREATHER TUBE

15772-MN1-670

$2.64
