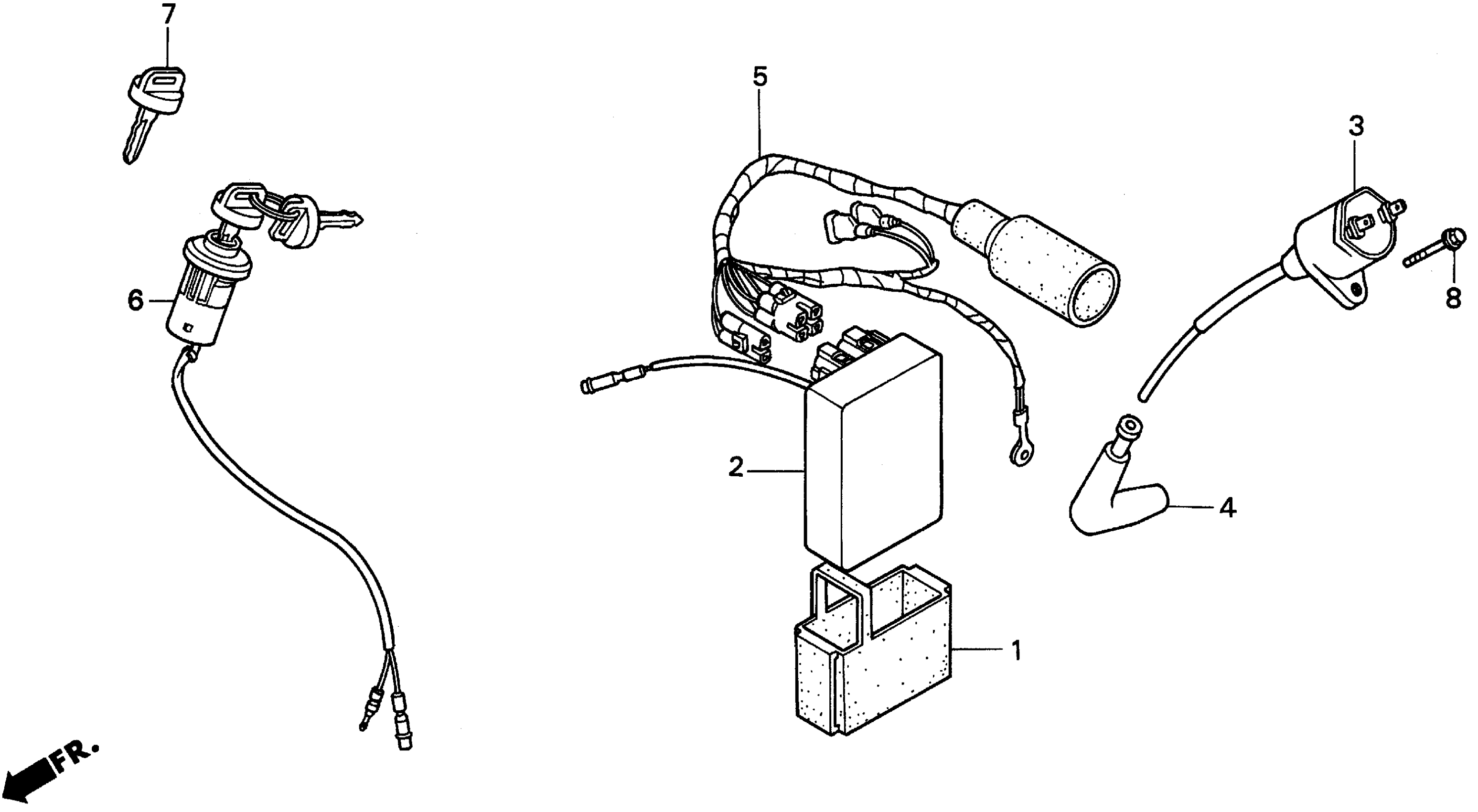

Honda TRX90A (00) FOURTRAX 90, JPN, VIN# JH3TE180-YK500001 WIRE HARNESS Diagram

#

Description

Price

1

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-HA7-670

$9.21

2

MODULE, IGNITION CONTROL (CDI) (SHINDENGEN)

30410-HF7-008

Unavailable

3

COIL ASSY., IGNITION

30510-GF9-405

$75.17

3

COIL ASSY., IGNITION This part replaces 30510-GZ9-000.

30510-GF9-405

$75.17

4

CAP ASSY., NOISE SUPPRESSOR

30700-GB3-602

$18.73

5

WIRE HARNESS

32100-HF7-000

Unavailable

6

SWITCH ASSY., IGNITION

35100-HF7-007

Unavailable

7

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-HF1-881

$8.84

7

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-HF1-881

$8.84

8

BOLT, FLANGE (5X22)

90112-GK8-010

$2.62
