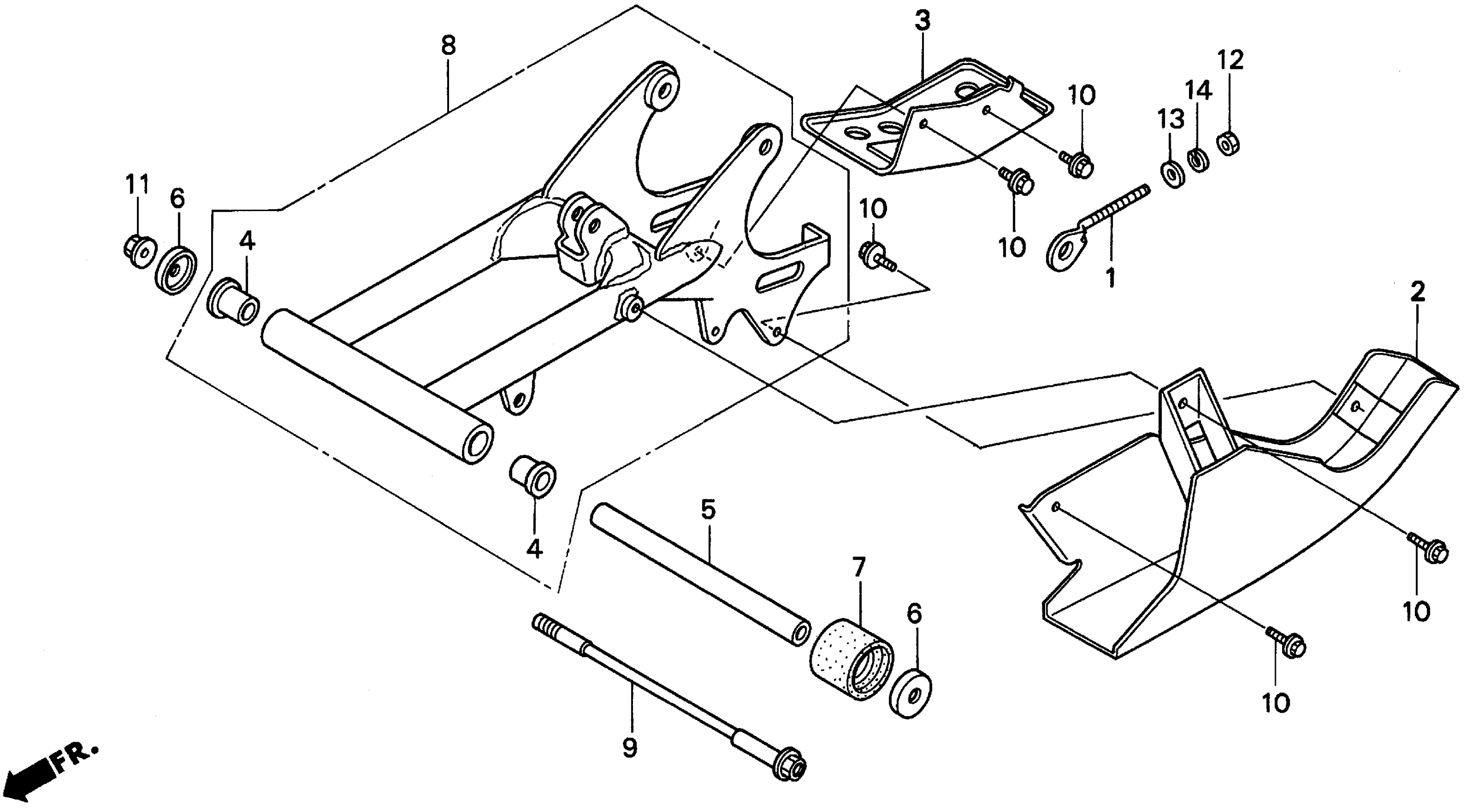

Honda TRX90A (00) FOURTRAX 90, JPN, VIN# JH3TE180-YK500001 SWINGARM Diagram

ADJUSTER, CHAIN

40543-HB3-000

$10.56

SPLASH GUARD

50355-HF7-000

Unavailable

GUARD, PANEL

50356-HF7-000

Unavailable

BUSH, SWINGARM This part replaces 52108-HB3-000.

52108-KE5-003

$21.68

BUSH, SWINGARM

52108-KE5-003

$21.68

COLLAR, SWINGARM

52141-HF7-000

$75.72

CAP, SWINGARM DUST SEAL (NOK)

52144-GE2-005

$16.27

SLIDER, CHAIN

52170-HB3-000

$21.13

SWINGARM SET

52200-HF7-305

Unavailable

BOLT, SWINGARM PIVOT

90121-HF7-000

$63.80

BOLT, FLANGE (8X12)

90190-MG3-000

$3.58

NUT, U (14MM)

90305-GE8-003

$3.86

NUT, HEX. (8MM)

94001-08000-0S

$1.49

NUT, HEX. (8MM) This part replaces 94001-08080-0S.

94001-08000-0S

$1.49

NUT, HEX. (8MM) This part replaces 94001-08080-05.

94001-08000-0S

$1.49

NUT, HEX. (8MM) This part replaces 94001-08200-0S.

94001-08000-0S

$1.49

WASHER, PLAIN (8MM)

94101-08800

$1.93

WASHER, SPRING (8MM)

94111-08800

$1.49
