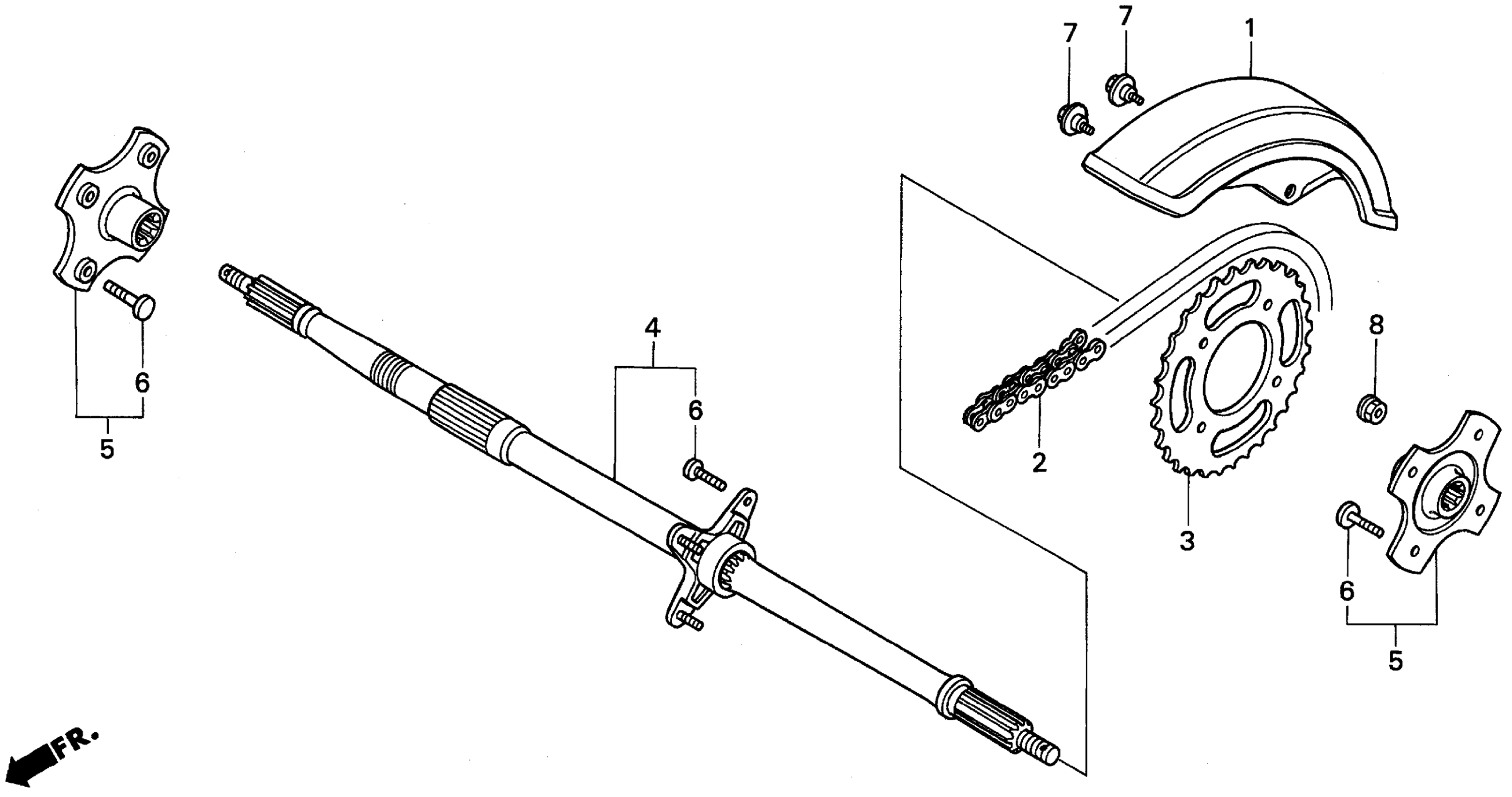

Honda TRX90A (00) FOURTRAX 90, JPN, VIN# JH3TE180-YK500001 REAR AXLE Diagram

#

Description

Price

1

COVER, DRIVE CHAIN

40510-HF7-000

$26.53

2

CHAIN, DRIVE (DID428V-100ZB) (DAIDO) (STANDARD LINK 98L) This part replaces 40530-HF7-003.

40540-HP2-671

$118.24

2

CHAIN, DRIVE (DID428V-100ZB) (DAIDO) (STANDARD LINK 98L) This part replaces 40530-HF7-005.

40540-HP2-671

$118.24

3

SPROCKET, FINAL DRIVEN (50T)

41201-HF7-000

$61.49

4

AXLE, RR. WHEEL

42310-HF7-000

$424.09

5

HUB, RR. WHEEL

42410-HF7-000

$122.88

6

BOLT, WHEEL (10X24.5)

90103-VM6-300

$6.33

7

BOLT, FLANGE (6MM)

90113-GF0-000

$4.04

8

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.52
