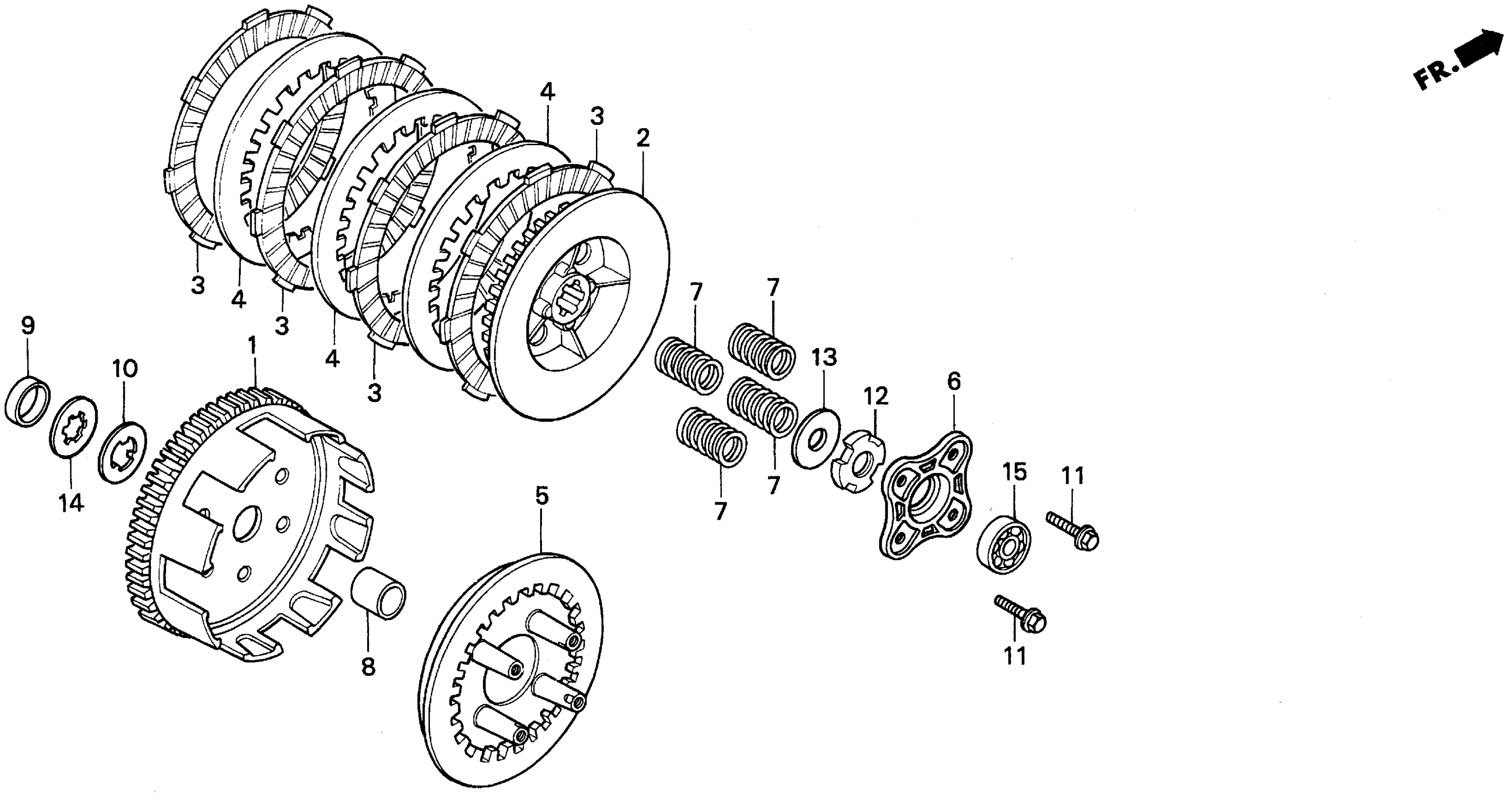

Honda TRX90A (00) FOURTRAX 90, JPN, VIN# JH3TE180-YK500001 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER)

22110-GN5-910

Unavailable

2

CENTER, CLUTCH

22120-GN5-910

Unavailable

3

DISK, CLUTCH FRICTION This part replaces 22201-GN8-920.

22201-MR8-000

$14.79

3

DISK, CLUTCH FRICTION This part replaces 22201-GS2-000.

22201-MR8-000

$14.79

3

DISK, CLUTCH FRICTION

22201-MR8-000

$14.79

4

PLATE, CLUTCH

22311-KN4-680

$6.31

4

PLATE, CLUTCH This part replaces 22311-107-000.

22311-KN4-680

$6.31

5

PLATE, CLUTCH PRESSURE

22350-115-020

$41.76

6

PLATE, CLUTCH LIFTER

22361-GN8-920

Unavailable

7

SPRING, CLUTCH

22401-GN5-910

$5.67

7

SPRING, CLUTCH This part replaces 22401-GN8-920.

22401-GN5-910

$5.67

8

COLLAR, CLUTCH CENTER

23112-GN5-910

$19.23

9

COLLAR, DISTANCE

23216-GN5-910

$4.93

10

SET-RING (17MM)

23217-GN5-910

$3.72

11

BOLT, SPECIAL FLANGE (6X22)

90050-357-000

$3.35

12

NUT B, LOCK (14MM) This part replaces 90231-198-000.

90231-198-010

$4.75

12

NUT B, LOCK (14MM)

90231-198-010

$4.75

13

WASHER B, LOCK

90432-086-000

$4.44

14

WASHER B, SPLINE (17MM)

90462-GN5-910

$6.16

15

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
