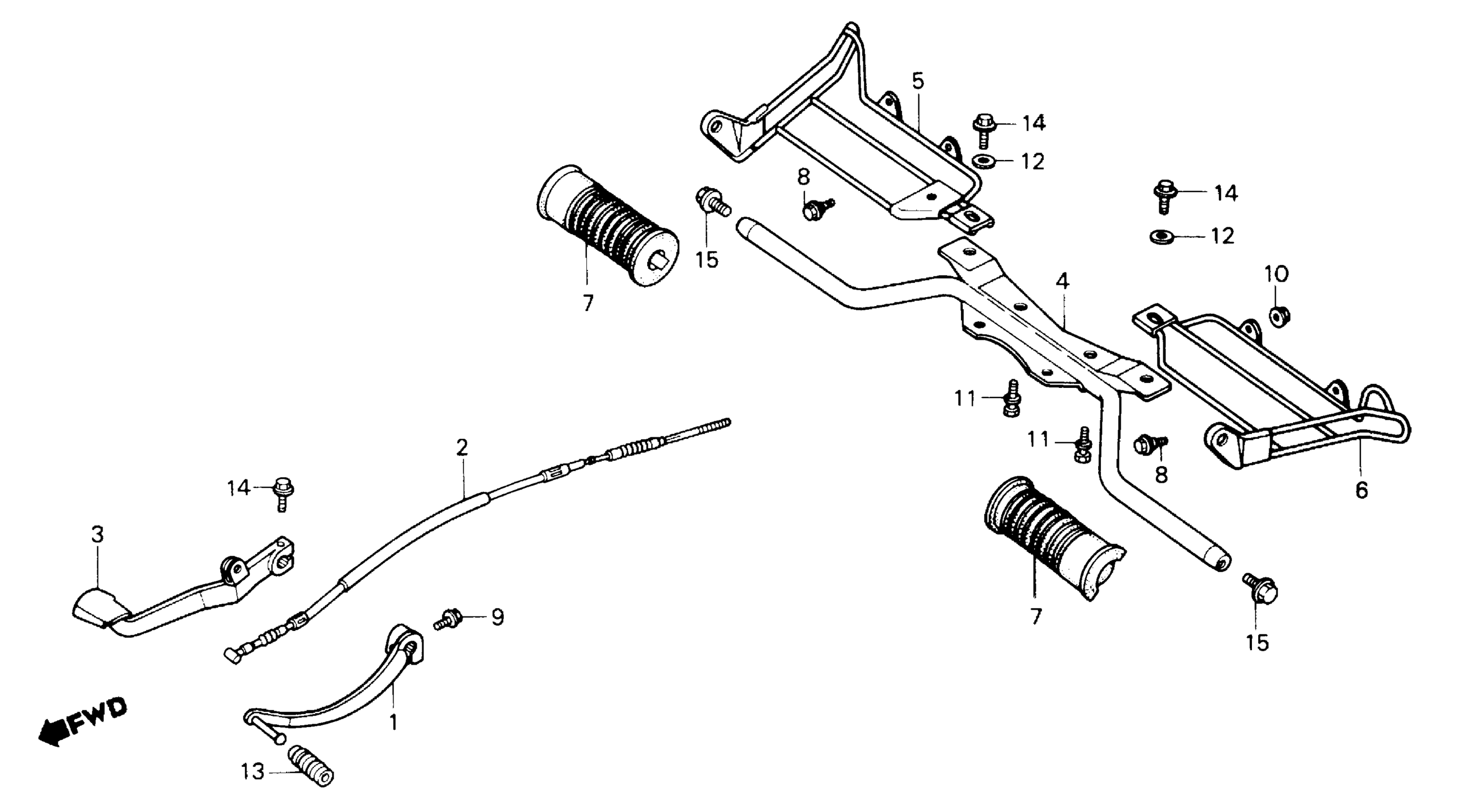

Honda TRX70A (87) FOURTRAX 70, JPN, VIN# JH3TE100-HC100012 STEP + PEDAL Diagram

PEDAL, GEARSHIFT

24700-HB2-000

Unavailable

CABLE, FOOT BRAKE (NOT AVAILABLE)

43470-HB2-770

Unavailable

PEDAL, RR. BRAKE (NOT AVAILABLE)

46500-HB2-770

Unavailable

ARM, STEP (NOT AVAILABLE)

50610-HB2-000

Unavailable

GUARD, R. STEP (NOT AVAILABLE)

50620-HB2-770

Unavailable

GUARD, L. STEP (NOT AVAILABLE)

50630-HB2-770

Unavailable

RUBBER, STEP

50661-957-000

$12.71

BOLT, FLANGE (6MM)

90111-187-000

$5.21

BOLT, FLANGE (6X20)

90118-968-000

$3.93

NUT, U (6MM)

90301-473-003

$3.79

BOLT-WASHER (8X20)

93402-08020-08

$1.58

BOLT-WASHER (8X20) This part replaces 93492-08020-08.

93402-08020-08

$1.58

WASHER, PLAIN (8MM)

94103-08800

$0.86

RUBBER, SHIFT PEDAL

95011-40000

$1.14

BOLT, FLANGE (8X25) This part replaces 95700-08025-08.

95701-08025-08

$0.67

BOLT, FLANGE (8X25)

95701-08025-08

$0.67

BOLT, FLANGE (10X16) This part replaces 95700-10016-08.

95701-10016-08

$1.99

BOLT, FLANGE (10X16)

95701-10016-08

$1.99
