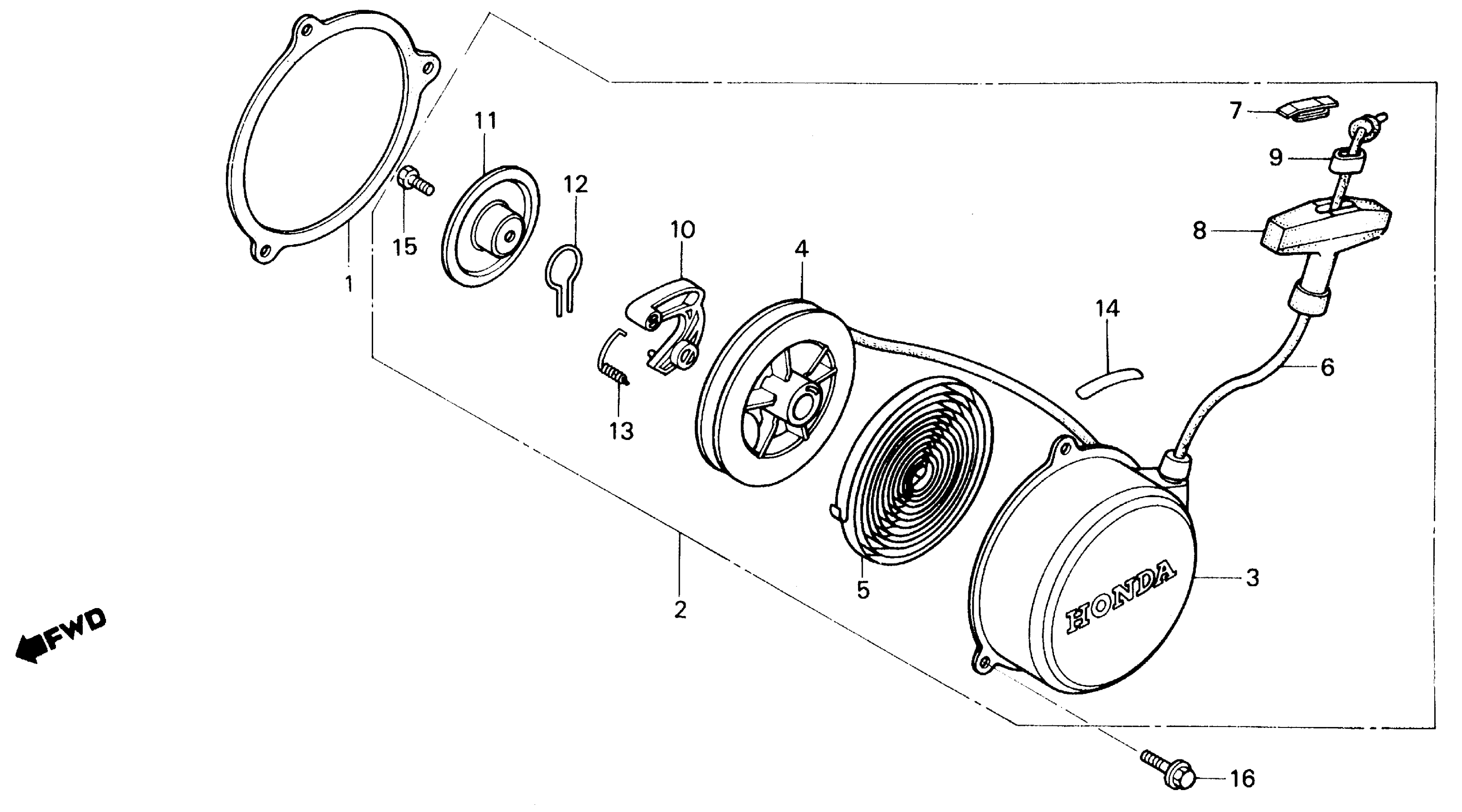

Honda TRX70A (87) FOURTRAX 70, JPN, VIN# JH3TE100-HC100012 RECOIL STARTER Diagram

#

Description
Price

1

GASKET, L. CRANKCASE COVER This part replaces 11397-HB2-000.

11397-HB2-900

Unavailable

1

GASKET, L. CRANKCASE COVER

11397-HB2-900

Unavailable

2

STARTER ASSY., RECOIL

28400-HB2-013

Unavailable

3

CASE, RECOIL STARTER (NOT AVAILABLE)

28401-HB2-000

Unavailable

4

REEL, RECOIL STARTER

28402-HB2-000

Unavailable

5

SPRING, RECOIL STARTER

28403-HB2-000

Unavailable

6

ROPE, RECOIL STARTER (NOT AVAILABLE)

28404-HB2-000

Unavailable

7

CAP, KNOB

28405-HB2-010

Unavailable

8

KNOB, STARTER

28408-HB2-010

Unavailable

9

STOPPER, STARTER ROPE

28409-918-000

Unavailable

10

RATCHET, STARTER

28422-HB2-000

Unavailable

11

PLATE, FRICTION

28431-896-000

$4.78

12

SPRING, FRICTION

28441-896-000

$6.41

13

SPRING, RETURN

28443-896-000

$3.93

14

LABEL, SHIFT PATTERN

87104-957-670

$3.74

15

BOLT, HEX. (6X12) This part replaces 92000-06012-0H.

92101-06012-0H

$1.49

15

BOLT, HEX. (6X12) This part replaces 92000-06012-08.

92101-06012-0H

$1.49

15

BOLT, HEX. (6X20)

92101-06012-0H

$1.49

16

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

16

BOLT, FLANGE (6X14)

95701-06014-00

$1.49
