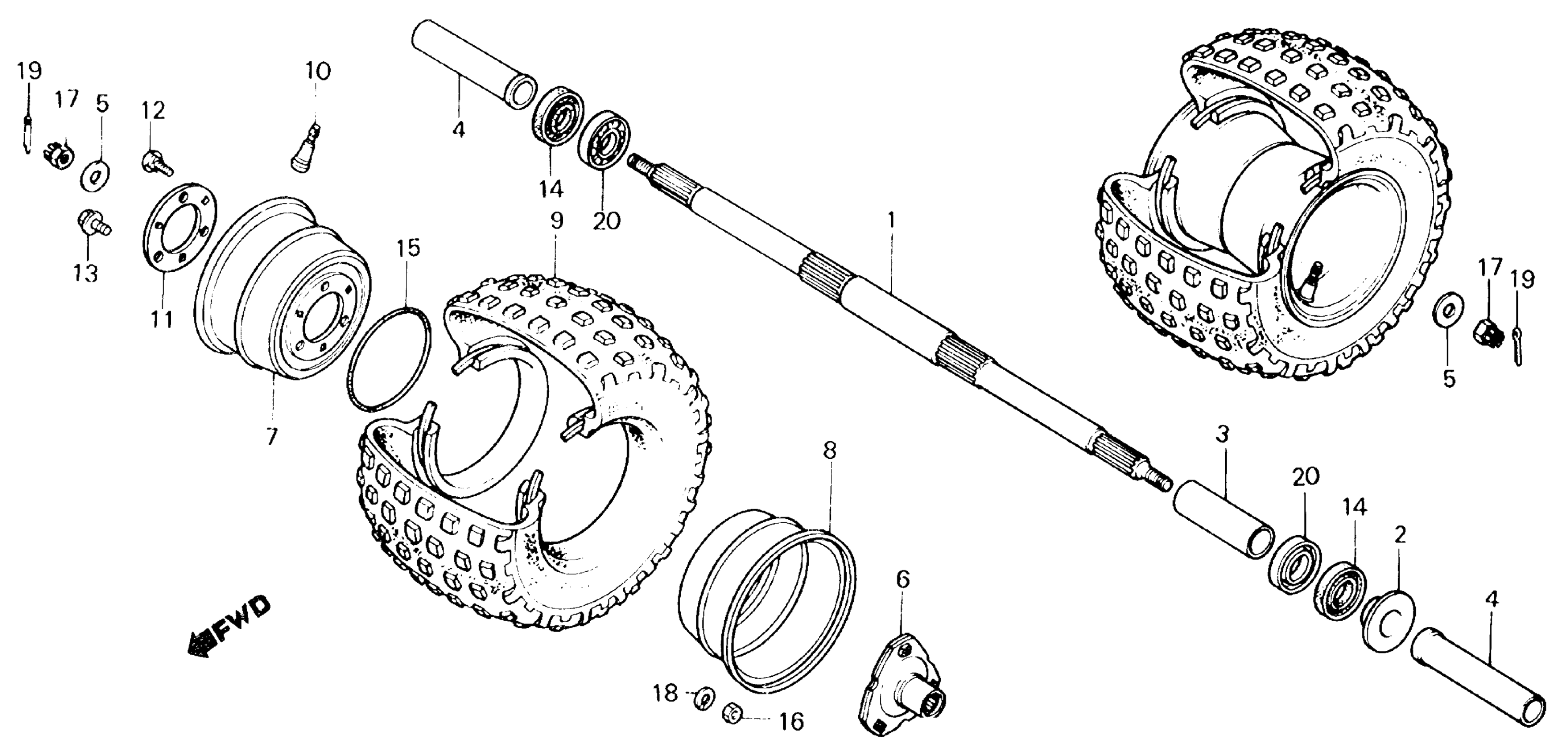

Honda TRX70A (87) FOURTRAX 70, JPN, VIN# JH3TE100-HC100012 REAR WHEEL Diagram

#

Description
Price

1

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-957-000

Unavailable

2

COLLAR, OIL SEAL (NOT AVAILABLE)

42303-957-000

Unavailable

3

COLLAR, RR. AXLE CENTER

42311-957-000

Unavailable

4

PIPE, RR. AXLE SIDE (NOT AVAILABLE)

42313-957-000

Unavailable

5

WASHER (14MM)

42322-950-000

$3.97

6

HUB, RR. WHEEL (NOT AVAILABLE)

42410-HB2-000

Unavailable

7

RIM, WHEEL (OUTER) (NOT AVAILABLE)

42712-HB2-770

Unavailable

8

RIM, WHEEL (INNER) (NOT AVAILABLE)

42713-HB2-770

Unavailable

9

TIRE (16X8.0-7) (BS)

4275Z-HB2-003

Unavailable

9

TIRE (16X8.0-7) (BS) This part replaces 42751-HB2-770.

4275Z-HB2-003

Unavailable

9

TIRE (16X8.0-7) (BS) This part replaces 42751-957-013.

4275Z-HB2-003

Unavailable

10

VALVE, RIM (SCHRADER)

42753-SB8-661

$1.93

10

VALVE, RIM (SCHRADER) This part replaces 42753-SE0-A02.

42753-SB8-661

$1.93

10

VALVE, RIM (SCHRADER) This part replaces 42753-634-003.

42753-SB8-661

$1.93

10

VALVE, RIM (SCHRADER) This part replaces 42753-634-006.

42753-SB8-661

$1.93

10

VALVE, RIM (SCHRADER) This part replaces 42753-634-007.

42753-SB8-661

$1.93

10

VALVE, RIM (SCHRADER) This part replaces 42753-671-003.

42753-SB8-661

$1.93

10

VALVE, RIM (SCHRADER) This part replaces 42753-937-000.

42753-SB8-661

$1.93

12

BOLT, WHEEL

90101-937-000

Unavailable

13

BOLT, FLANGE (8X18.5)

90156-HB9-770

Unavailable

13

BOLT, FLANGE (8X18.5) This part replaces 90194-HB2-003.

90156-HB9-770

Unavailable

14

OIL SEAL (38X55X8)

91203-957-003

$14.26

15

O-RING, WHEEL (126.5X3.5)

91351-937-000

$19.17

16

NUT, HEX. (8MM)

94001-08000-0S

$1.49

17

NUT, CASTLE (14MM)

94011-14000-0S

$1.80

18

WASHER, SPRING (8MM)

94111-08000

$1.49

19

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

19

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

19

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

19

PIN, COTTER (3.0X45)

94201-30450

$1.49

20

BEARING, RADIAL BALL (6006)

96100-60060-10

Unavailable
