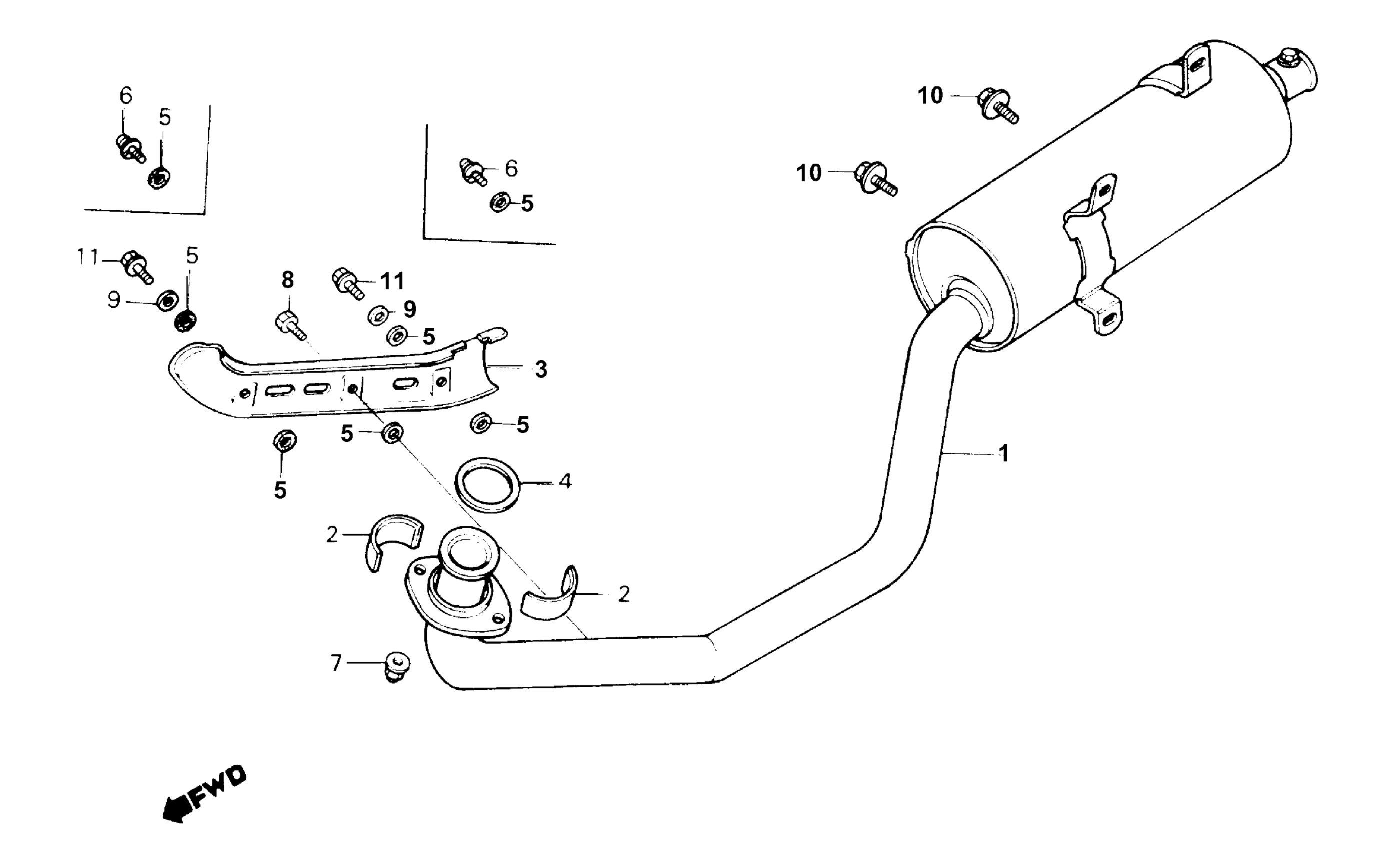

Honda TRX70A (87) FOURTRAX 70, JPN, VIN# JH3TE100-HC100012 MUFFLER Diagram

#

Description
Price

1

MUFFLER ASSY., EX.

18200-HB2-P00

Unavailable

1

MUFFLER ASSY., EX. This part replaces 18200-HB2-000.

18200-HB2-P00

Unavailable

2

COLLAR, EX. PIPE JOINT

18233-051-000

$2.56

3

COVER, EX. PIPE (NOT AVAILABLE)

18271-HB2-003

Unavailable

4

GASKET, EX. PIPE

18291-HB2-900

$3.72

4

GASKET, EX. PIPE This part replaces 18291-001-010.

18291-HB2-900

$3.72

4

GASKET, EX. PIPE This part replaces 18291-001-306.

18291-HB2-900

$3.72

5

GASKET, PROTECTOR

18292-167-890

$1.88

5

GASKET, PROTECTOR This part replaces 18292-329-000.

18292-167-890

$1.88

7

NUT, CAP (6MM)

90304-438-000

$7.14

8

BOLT, HEX. (6X8) This part replaces 92000-06008-0H.

92000-06008-08

Unavailable

8

BOLT, HEX. (6X8)

92000-06008-08

Unavailable

9

WASHER, PLAIN (6MM)

94101-06200

$1.49

10

BOLT, FLANGE (8X16) This part replaces 95700-08016-08.

95701-08016-08

$1.80

10

BOLT, FLANGE (8X16)

95701-08016-08

$1.80

10

BOLT, FLANGE (8X16) This part replaces 95900-08016-0B.

95701-08016-08

$1.80

10

BOLT, FLANGE (8X16) This part replaces 95900-08016-08.

95701-08016-08

$1.80

10

BOLT, FLANGE (8X16) This part replaces 96500-08016-08.

95701-08016-08

$1.80

11

BOLT, FLANGE (6X10) This part replaces 96000-06010-02.

96001-06010-02

$1.54

11

BOLT, FLANGE (6X10)

96001-06010-02

$1.54
