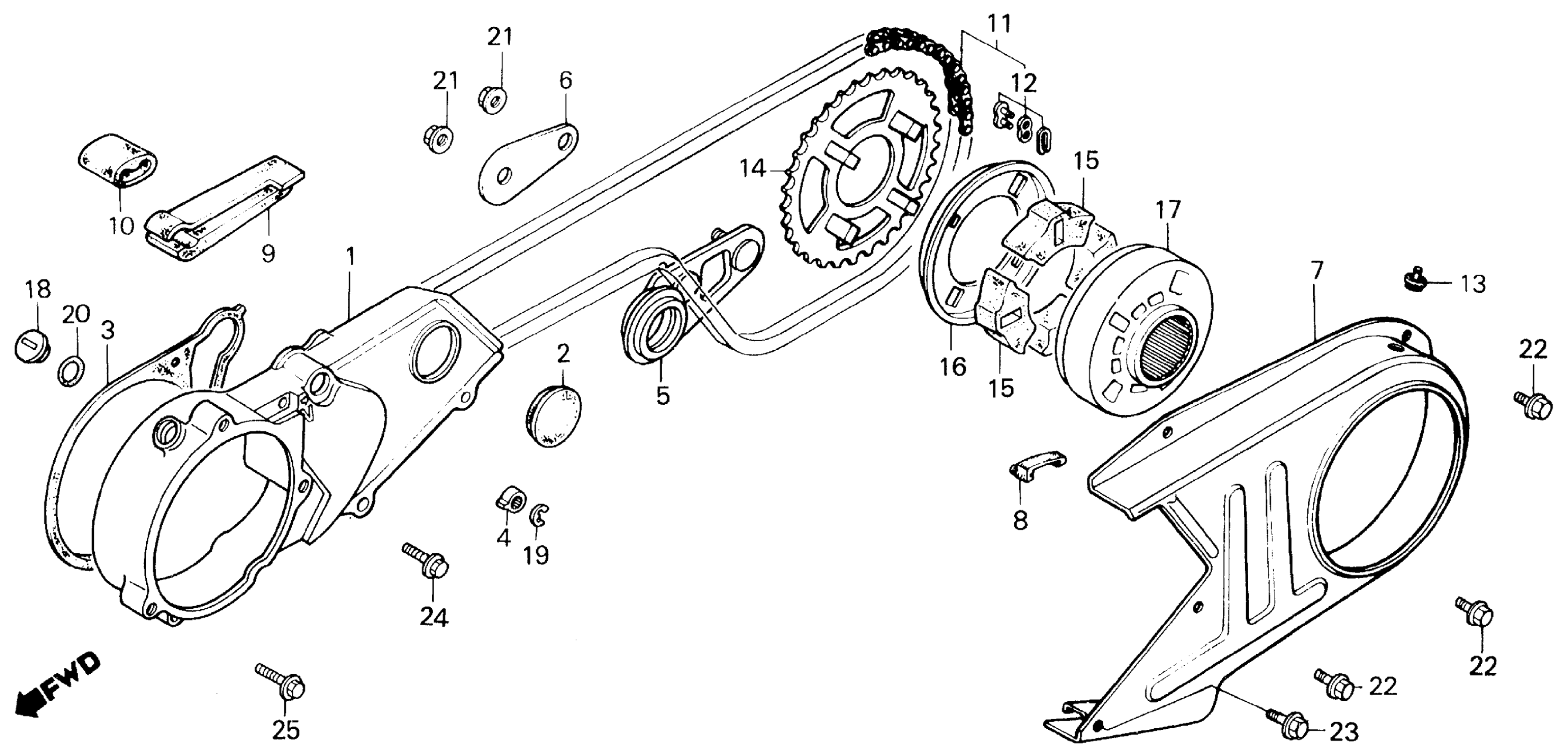

Honda TRX70A (87) FOURTRAX 70, JPN, VIN# JH3TE100-HC100012 LEFT CRANKCASE COVER + CHAIN CASE Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-HB2-000

Unavailable

2

CAP, CLUTCH ADJUSTING HOLE

11391-351-000

Unavailable

3

GASKET, L. CRANKCASE COVER This part replaces 11396-HB2-000.

11396-HB2-900

Unavailable

3

GASKET, L. CRANKCASE COVER

11396-HB2-900

Unavailable

4

INDICATOR, NEUTRAL

35762-HF7-000

$4.17

4

INDICATOR, NEUTRAL This part replaces 35762-918-020.

35762-HF7-000

$4.17

5

TENSIONER, CHAIN

40500-HB2-000

$129.26

6

PATCH, TENSIONER (NOT AVAILABLE)

40507-957-000

Unavailable

7

CASE, DRIVE CHAIN This part replaces 40521-HB2-000.

40521-HB2-405

Unavailable

8

GUIDE, CHAIN (NOT AVAILABLE)

40522-957-003

Unavailable

9

SLIDER, CHAIN (UPPER) (NOT AVAILABLE)

40526-957-000

Unavailable

10

SLIDER, CHAIN (LOWER) (NOT AVAILABLE)

40528-957-000

Unavailable

11

CHAIN, DRIVE (76L) This part replaces 405W3-165-505.

40530-181-952

$41.73

11

CHAIN, DRIVE (76L) This part replaces 40530-165-791.

40530-181-952

$41.73

11

CHAIN, DRIVE (76L) This part replaces 40530-165-794.

40530-181-952

$41.73

11

CHAIN, DRIVE (76L) This part replaces 40530-937-003.

40530-181-952

$41.73

12

MASTER LINK (DAIDO) (NOT AVAILABLE)

40531-957-003

Unavailable

13

CAP, CHAIN

40545-958-000

Unavailable

14

SPROCKET, FINAL DRIVEN (36T)

41201-124-770

Unavailable

15

DAMPER, RR. WHEEL

41241-028-940

$8.78

15

DAMPER, RR. WHEEL This part replaces 41241-459-670.

41241-028-940

$8.78

16

COVER, RR. WHEEL DAMPER

41245-051-000

$4.79

17

HOUSING, DAMPER (NOT AVAILABLE)

42601-957-000

Unavailable

18

CAP, ALTERNATOR This part replaces 90084-428-000.

90084-471-000

Unavailable

18

CAP, ALTERNATOR

90084-471-000

Unavailable

19

CIRCLIP (5MM)

90605-230-000

$2.92

20

O-RING (13.8X2.5)

91303-377-000

$3.42

21

NUT, FLANGE (10MM)

94050-10080

$3.24

22

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

22

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

23

BOLT, FLANGE (6X35) This part replaces 95700-06035-08.

95701-06035-08

$1.79

23

BOLT, FLANGE (6X35)

95701-06035-08

$1.79

24

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

24

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

25

BOLT, FLANGE (6X55) This part replaces 96000-06055-00.

96001-06055-00

$1.62

25

BOLT, FLANGE (6X55)

96001-06055-00

$1.62
