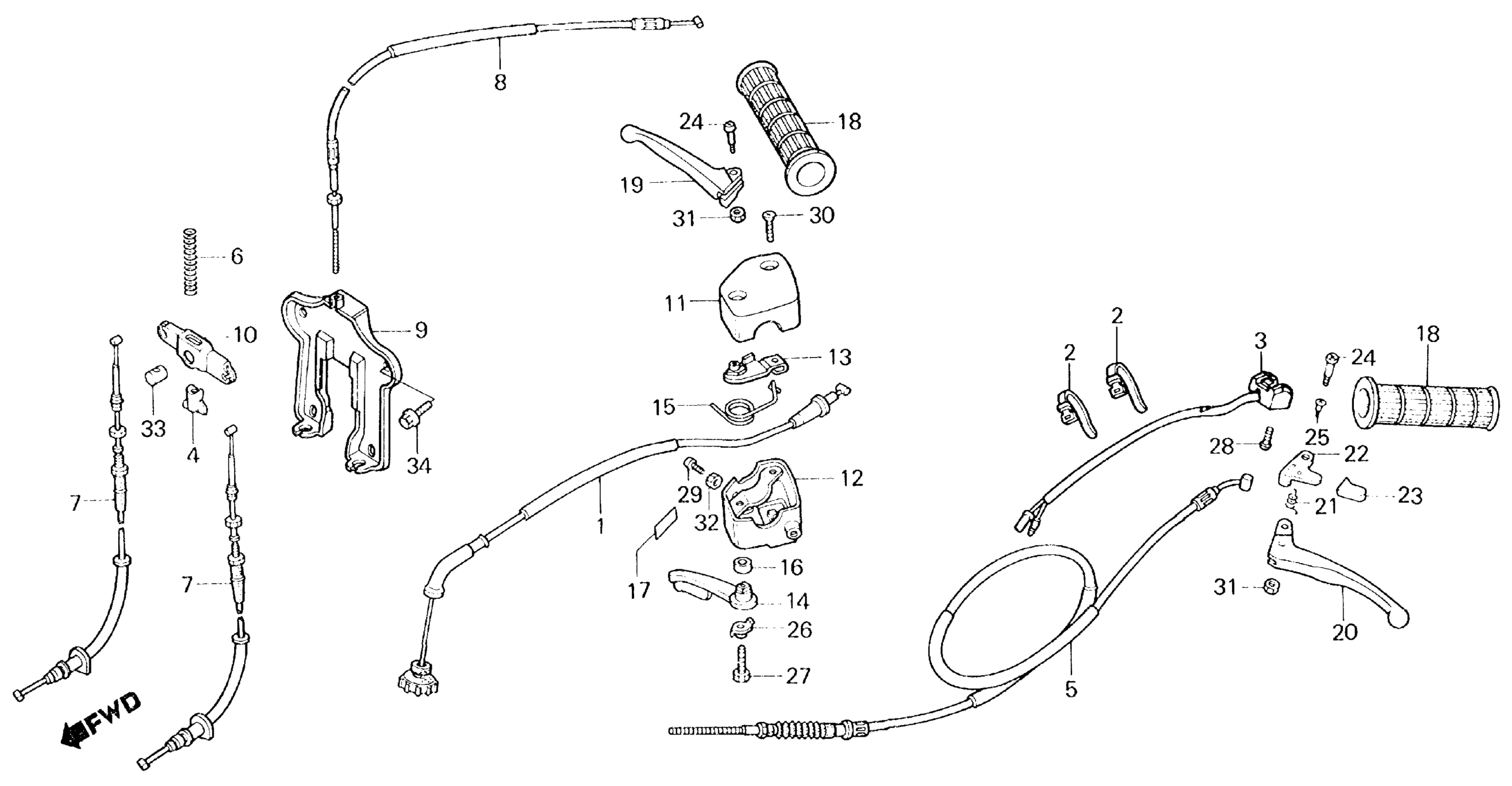

Honda TRX70A (87) FOURTRAX 70, JPN, VIN# JH3TE100-HC100012 HANDLE LEVER + SWITCH + CABLE Diagram

#

Description
Price

1

CABLE SET, THROTTLE

17920-HB2-305

Unavailable

2

BAND B1, CABLE

32161-404-000

$2.23

3

SWITCH ASSY., ENGINE (NOT AVAILABLE)

35300-HB2-003

Unavailable

4

NUT, BRAKE ADJUSTING

43459-HB2-000

$11.08

5

CABLE, HANDLE BRAKE (NOT AVAILABLE)

43460-HB2-770

Unavailable

6

SPRING B, BRAKE ROD

43468-VM6-680

$2.93

7

CABLE, FR. BRAKE SECOND

45440-HB2-000

$35.07

8

CABLE, FR. BRAKE

45450-HB2-000

Unavailable

9

BODY, EQUALIZER

47609-HB2-000

$37.33

10

PLATE, EQUALIZER

47610-HB2-000

$16.87

11

COVER, THROTTLE (NOT AVAILABLE)

53141-HB2-000

Unavailable

12

CASE, THROTTLE (NOT AVAILABLE)

53142-HB2-000

Unavailable

13

ARM, THROTTLE (NOT AVAILABLE)

53144-HB2-000

Unavailable

14

LEVER, THROTTLE (NOT AVAILABLE)

53145-HB2-000

Unavailable

15

SPRING, THROTTLE LEVER (NOT AVAILABLE)

53146-HB2-000

Unavailable

16

BUSH, THROTTLE LEVER (NOT AVAILABLE)

53148-957-003

Unavailable

17

MARK, THROTTLE CAUTION (NOT AVAILABLE)

53155-957-000

Unavailable

18

GRIP, L. HANDLE

53166-198-000

$12.63

19

LEVER, R. HANDLEBAR

53175-HB2-770

Unavailable

20

LEVER, L. HANDLEBAR

53178-HB2-770

Unavailable

21

SPRING, PARKING BRAKE LEVER

53191-957-010

Unavailable

22

LEVER, PARKING BRAKE LOCK (NOT AVAILABLE)

53192-957-010

Unavailable

23

CAP, PARKING BRAKE LEVER

53193-957-000

Unavailable

24

SCREW, L. HANDLEBAR LEVER PIVOT This part replaces 90114-063-000.

90116-GF8-000

$3.58

24

SCREW, L. HANDLEBAR LEVER PIVOT

90116-GF8-000

$3.58

25

SCREW, PARKING BRAKE LEVER PIVOT (NOT AVAILABLE)

90115-957-010

Unavailable

26

WASHER, LOCK (5MM) (NOT AVAILABLE)

90501-957-000

Unavailable

27

BOLT, HEX. (5X22) This part replaces 92000-05022-0A.

92101-05022-0A

$1.49

27

BOLT, HEX. (5X22)

92101-05022-0A

$1.49

28

SCREW, PAN (4X10)

93500-04010-0H

$1.49

29

SCREW, PAN (6X20)

93500-06020-0A

$1.49

30

SCREW, OVAL (5X25)

93700-05025-0B

$1.49

31

NUT, HEX. (5MM)

94001-05000-0S

$2.74

32

NUT, HEX. (6MM)

94002-06000-0S

$1.49

33

JOINT, BRAKE ARM

95015-32001

$1.49

34

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

34

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
