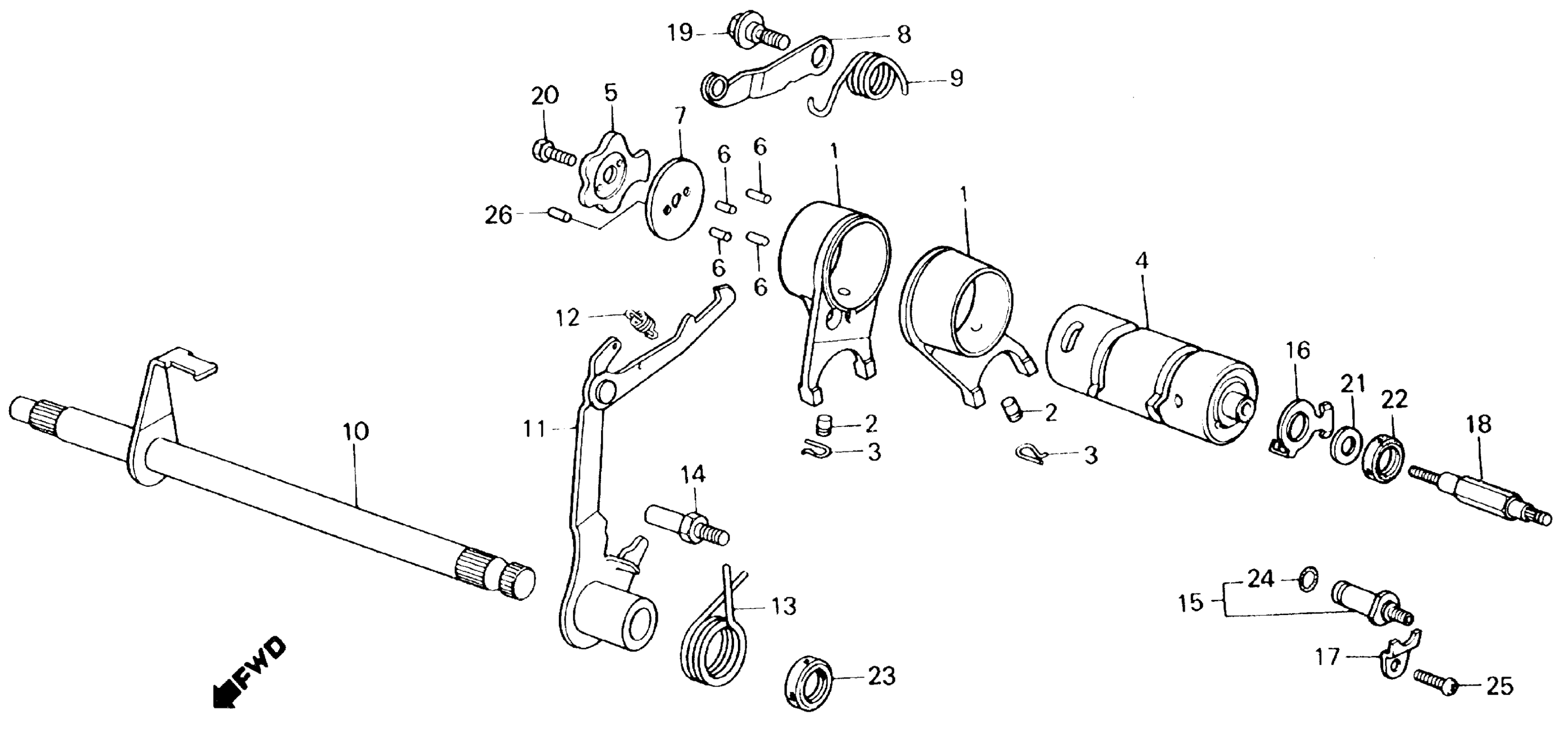

Honda TRX70A (87) FOURTRAX 70, JPN, VIN# JH3TE100-HC100012 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, GEARSHIFT

24211-065-000

$68.56

2

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-740.

24261-121-742

$2.33

2

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-741.

24261-121-742

$2.33

3

CLIP, GEARSHIFT FORK GUIDE

24263-028-000

$2.66

4

DRUM, GEARSHIFT (NOT AVAILABLE)

24301-087-671

Unavailable

5

PLATE, GEARSHIFT DRUM STOPPER

24411-957-670

Unavailable

6

PIN, GEARSHIFT DRUM This part replaces 24421-200-000.

24421-230-000

$5.80

6

PIN, GEARSHIFT DRUM

24421-230-000

$5.80

7

PLATE, GEARSHIFT DRUM SIDE

24425-198-900

$3.81

8

ARM, SHIFT DRUM STOPPER | Use up to Engine SN 2105291 This part replaces 24430-GB5-670.

24430-GW8-710

$17.83

8

ARM, SHIFT DRUM STOPPER

24430-GW8-710

$17.83

8

ARM, SHIFT DRUM STOPPER This part replaces 24430-HB2-000.

24430-GW8-710

$17.83

9

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-198-000

Unavailable

10

SPINDLE, GEARSHIFT

24610-098-730

$58.95

11

ARM, GEARSHIFT (NOT AVAILABLE)

24630-957-000

Unavailable

12

SPRING, GEARSHIFT ARM

24641-061-000

Unavailable

13

SPRING, GEARSHIFT RETURN

24651-035-000

Unavailable

14

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

15

CONTACT ASSY., NEUTRAL SWITCH

35750-001-020

$9.16

16

ROTOR, NEUTRAL SWITCH | Use up to Engine SN 2109572

35753-035-662

Unavailable

16

ROTOR, NEUTRAL SWITCH | Use from Engine SN 2109573

35753-HB2-000

Unavailable

17

PLATE, CONTACT FIXING

35755-001-020

Unavailable

18

SHAFT, INDICATOR (NOT AVAILABLE)

35763-957-000

Unavailable

19

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT | Use up to Engine SN 2109512 This part replaces 90023-041-000.

90023-041-010

$2.25

19

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

20

BOLT, DOWEL (6MM)

90071-171-010

$2.39

21

WASHER, GEARSHIFT DRUM SIDE

90417-041-000

$2.19

22

OIL SEAL (11.6X19X6)

91204-HB2-003

$7.40

23

OIL SEAL (11.6X23X10) (ARAI)

91208-KB4-671

$4.06

24

O-RING (7X1.7)

91312-107-000

$3.18

25

SCREW, PAN (6X12)

93500-06012-0A

$1.49

26

ROLLER (3X8.5)

96220-30085

$1.49
