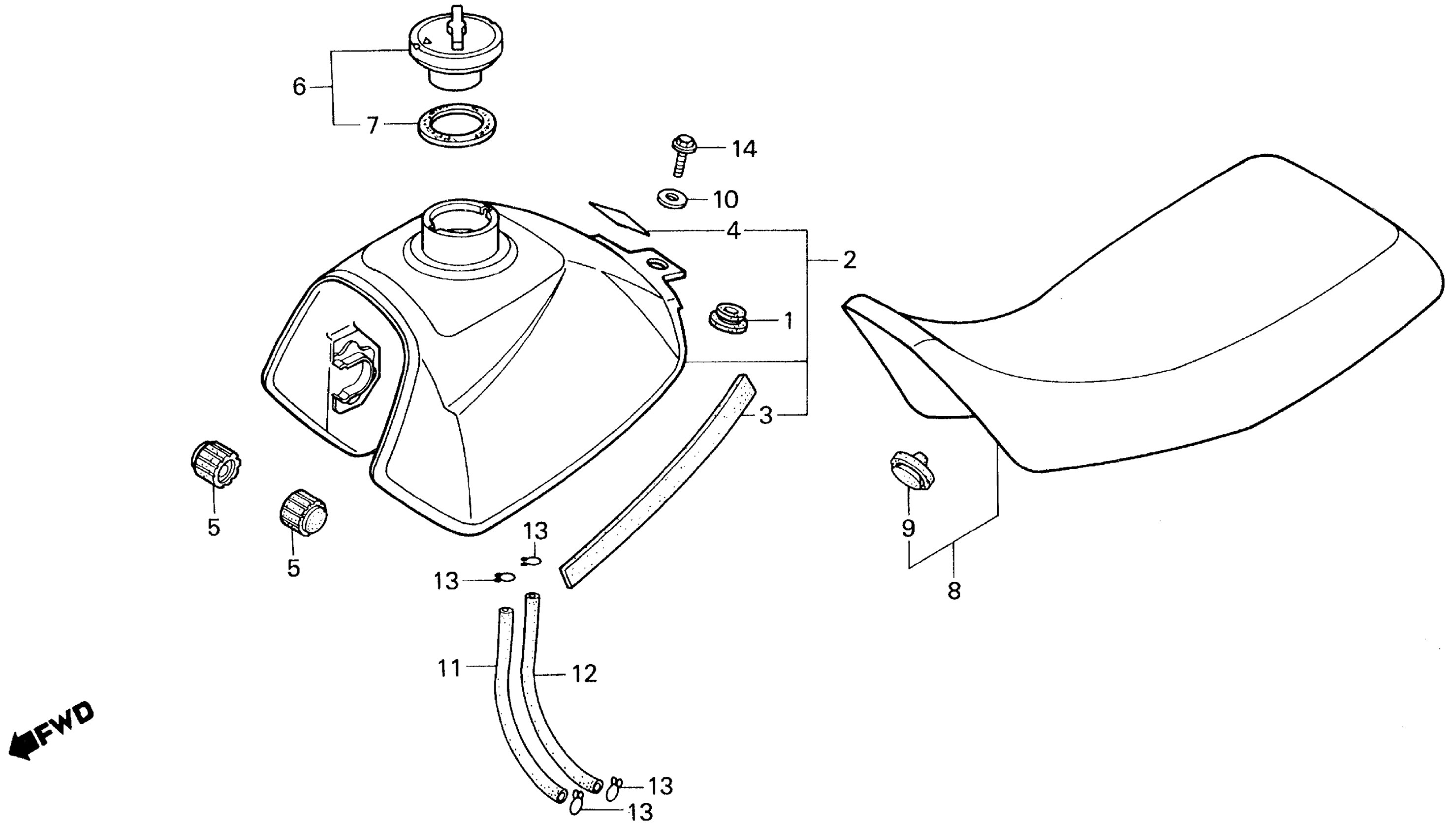

Honda TRX70A (87) FOURTRAX 70, JPN, VIN# JH3TE100-HC100012 FUEL TANK + SEAT Diagram

RUBBER, RR. FUEL TANK SETTING

17509-GC5-000

Unavailable

TANK, FUEL *NH105* (MAT BLACK)

17510-HB2-770ZA

Unavailable

RUBBER, TANK SPACER

17511-HB2-770

Unavailable

SEAL, PROTECTION (NOT AVAILABLE)

17512-HB2-300

Unavailable

RUBBER, FR. FUEL TANK (NOT AVAILABLE)

17611-HB2-000

Unavailable

CAP, FUEL FILLER This part replaces 17620-HB2-771.

17620-165-643

$42.47

CAP, FUEL FILLER This part replaces 17620-165-642.

17620-165-643

$42.47

GASKET, FUEL FILLER CAP This part replaces 17632-383-830.

17632-383-832

$7.79

GASKET, FUEL FILLER CAP This part replaces 17632-383-831.

17632-383-832

$7.79

SEAT (NOT AVAILABLE)

77100-HB2-000

Unavailable

RUBBER, SEAT STOPPER

77211-MB0-000

$6.72

WASHER, EX. DUCT (NOT AVAILABLE)

90504-567-000

Unavailable

BULK HOSE, FUEL (5.5X3000) (5.5X100)

95001-55003-60M

$47.32

BULK HOSE, FUEL (5.5X3000) (5.5X125)

95001-55003-60M

$47.32

CLIP, TUBE (B10)

95002-02100

$1.90

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
