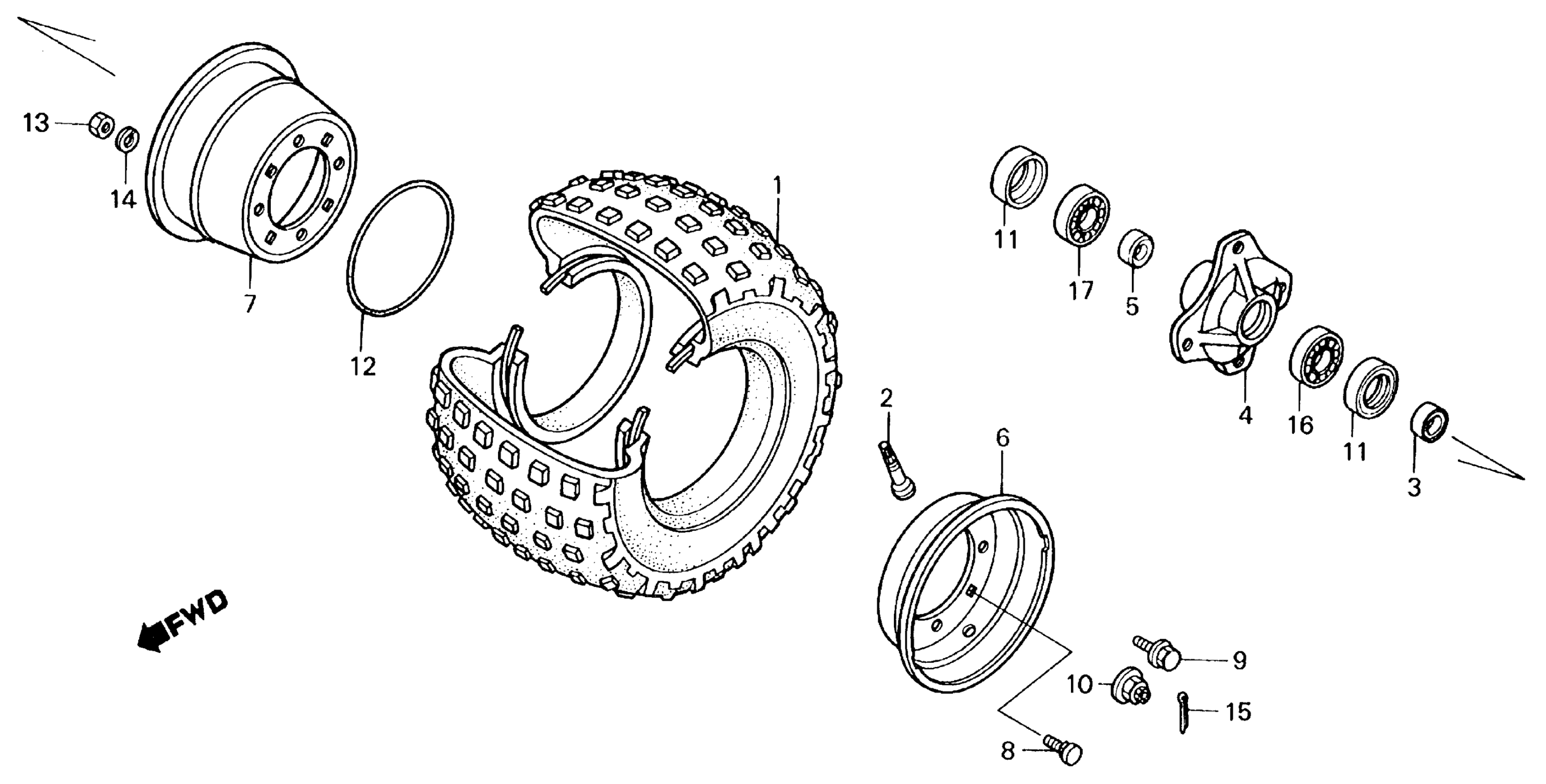

Honda TRX70A (87) FOURTRAX 70, JPN, VIN# JH3TE100-HC100012 FRONT WHEEL Diagram

#

Description
Price

1

TIRE (16X8.0-7) (BS)

4275Z-HB2-003

Unavailable

1

TIRE (16X8.0-7) (BS) This part replaces 42751-HB2-770.

4275Z-HB2-003

Unavailable

1

TIRE (16X8.0-7) (BS) This part replaces 42751-957-013.

4275Z-HB2-003

Unavailable

2

VALVE, RIM (SCHRADER)

42753-SB8-661

$1.93

2

VALVE, RIM (SCHRADER) This part replaces 42753-SE0-A02.

42753-SB8-661

$1.93

2

VALVE, RIM (SCHRADER) This part replaces 42753-634-003.

42753-SB8-661

$1.93

2

VALVE, RIM (SCHRADER) This part replaces 42753-634-006.

42753-SB8-661

$1.93

2

VALVE, RIM (SCHRADER) This part replaces 42753-634-007.

42753-SB8-661

$1.93

2

VALVE, RIM (SCHRADER) This part replaces 42753-671-003.

42753-SB8-661

$1.93

2

VALVE, RIM (SCHRADER) This part replaces 42753-937-000.

42753-SB8-661

$1.93

3

COLLAR A, FR. HUB

44312-HB2-000

$5.17

4

HUB, FR. WHEEL (NOT AVAILABLE)

44610-HB2-770

Unavailable

5

COLLAR B, FR. HUB (NOT AVAILABLE)

44621-HB2-000

Unavailable

6

RIM, FR. WHEEL (OUTER) (NOT AVAILABLE)

44712-HB2-770

Unavailable

7

RIM, FR. WHEEL (INNER) (NOT AVAILABLE)

44713-HB2-770

Unavailable

8

BOLT, WHEEL

90101-937-000

Unavailable

9

BOLT, FLANGE (8X18.5)

90156-HB9-770

Unavailable

9

BOLT, FLANGE (8X18.5) This part replaces 90194-HB2-003.

90156-HB9-770

Unavailable

10

NUT, AXLE (12MM)

90305-169-000

$6.28

11

OIL SEAL (21.7X35X6.5)

91205-957-004

$11.06

12

O-RING, WHEEL (133X3)

91351-HB2-003

Unavailable

13

NUT, HEX. (8MM)

94001-08000-0S

$1.49

14

WASHER, SPRING (8MM)

94111-08000

$1.49

15

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

15

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

15

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

15

PIN, COTTER (3.0X45)

94201-30450

$1.49

16

BEARING, RADIAL BALL (6002UU)

96100-60020-10

$11.70

17

BEARING, RADIAL BALL (6003)

96100-60030-10

$14.15
