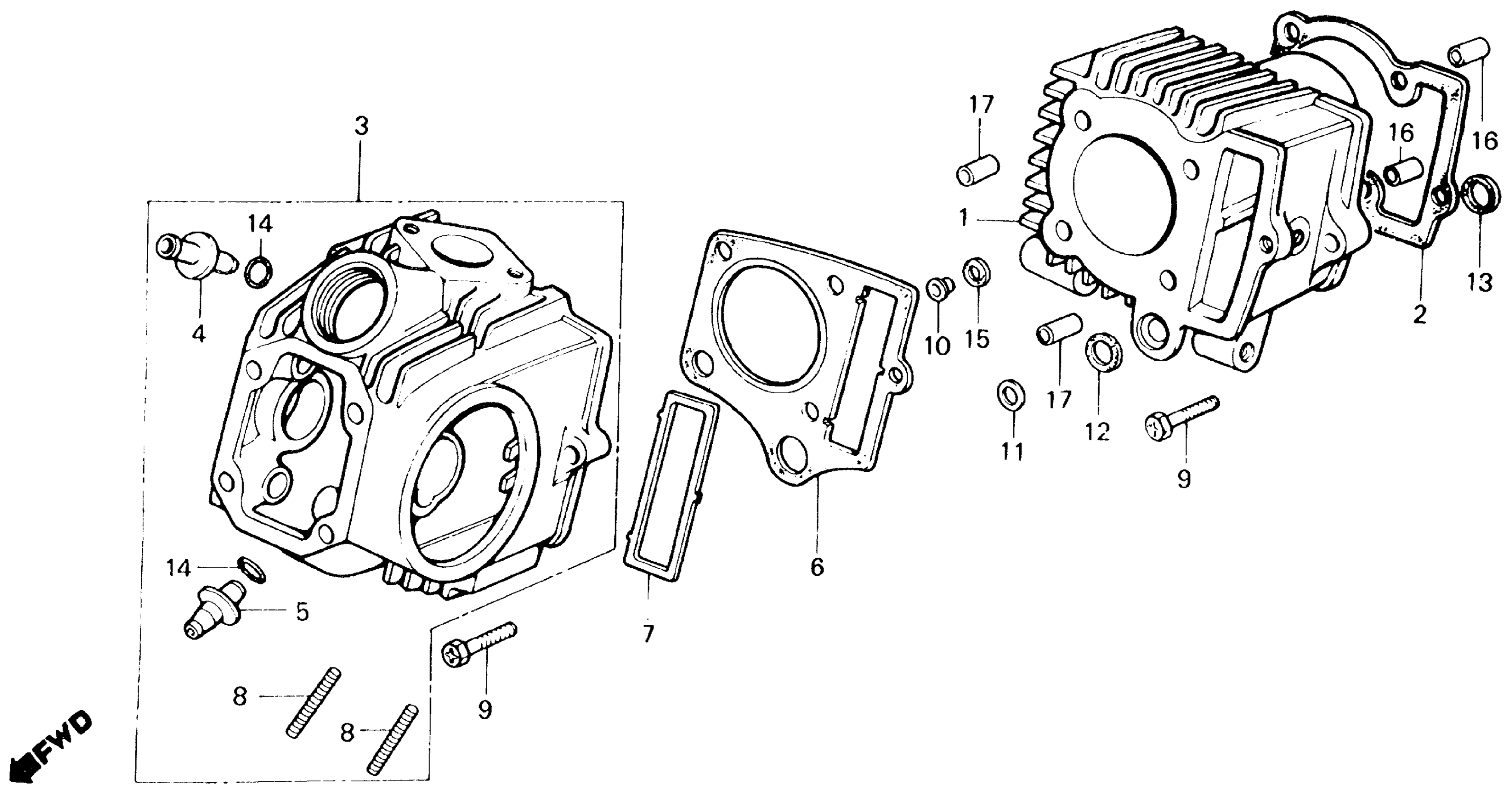

Honda TRX70A (87) FOURTRAX 70, JPN, VIN# JH3TE100-HC100012 CYLINDER HEAD + CYLINDER Diagram

#

Description
Price

1

CYLINDER

12101-GB0-910

$212.90

1

CYLINDER This part replaces 12101-HB2-000.

12101-GB0-910

$212.90

2

GASKET, CYLINDER This part replaces 12191-GB2-004.

12191-GW8-683

$8.88

2

GASKET, CYLINDER This part replaces 12191-GB2-306.

12191-GW8-683

$8.88

2

GASKET, CYLINDER This part replaces 12191-GW8-681.

12191-GW8-683

$8.88

3

CYLINDER HEAD

12200-178-020

Unavailable

4

GUIDE, IN VALVE This part replaces 12231-178-315.

12231-178-405

Unavailable

4

GUIDE, IN VALVE

12231-178-405

Unavailable

4

GUIDE, IN VALVE This part replaces 12237-178-305.

12231-178-405

Unavailable

5

GUIDE, EX. VALVE

12023-051-330

Unavailable

5

GUIDE, EX. VALVE This part replaces 12245-051-305.

12023-051-330

Unavailable

6

GASKET, CYLINDER HEAD

12251-GB0-306

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-GB0-911.

12251-GB0-306

Unavailable

6

GASKET, CYL HD | (Optional). This part replaces 12255-HB2-315.

12255-HB2-405

Unavailable

7

SEAL, CAM CHAIN CHAMBER | (Optional).

12255-GB0-911

Unavailable

8

BOLT, STUD (6X32)

90033-041-020

$2.25

9

BOLT (6MM)

90082-035-010

$2.39

10

COLLAR (9.5MM)

90602-GB0-911

Unavailable

11

COLLAR (14.8MM)

90603-GB0-911

$3.10

12

O-RING (14.5MM) This part replaces 91301-GB0-911.

91301-GF6-003

$6.69

12

O-RING (14.5MM)

91301-GF6-003

$6.69

13

GASKET, RUBBER (16MM)

91303-035-000

$4.87

14

O-RING (9X1.6) (ARAI) This part replaces 91305-028-158.

91305-028-900

$2.92

14

O-RING (9X1.6)

91305-028-900

$2.92

15

GASKET, RUBBER (9MM)

91306-141-000

$4.65

16

PIN A, DOWEL (8X12)

94301-08120

$2.19

16

PIN A, DOWEL (8X12) This part replaces 90702-GB6-910.

94301-08120

$2.19

17

PIN A, DOWEL (8X14)

94301-08140

$2.25
