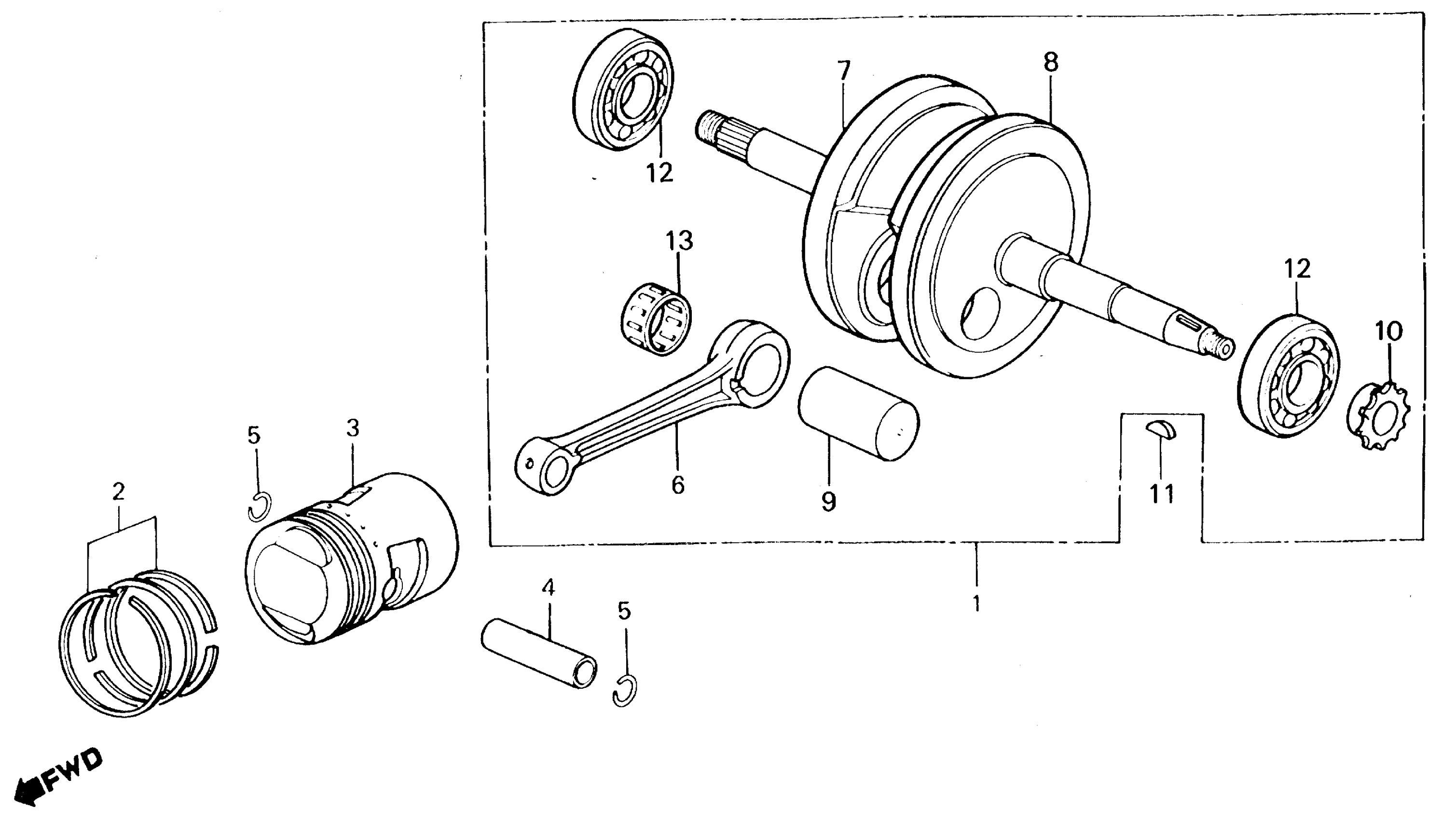

Honda TRX70A (87) FOURTRAX 70, JPN, VIN# JH3TE100-HC100012 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT (NOT AVAILABLE)

13000-HB2-000

Unavailable

2

RING SET, PISTON (STD)

13011-HB2-305

Unavailable

2

RING SET, PISTON (OS 0.25) | (Optional).

13012-HB2-305

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional).

13013-HB2-305

Unavailable

2

RING SET, PISTON (0.75) | (Optional).

13014-HB2-305

Unavailable

2

RING SET, PISTON (1.00) | (Optional).

13015-HB2-305

Unavailable

3

PISTON (STD)

13101-HB2-000

Unavailable

3

PISTON (OS 0.25) | (Optional).

13102-HB2-305

Unavailable

3

PISTON (OS 0.50) | (Optional).

13103-HB2-305

Unavailable

3

PISTON (0.75) (NOT AVAILABLE) | (Optional).

13104-HB2-305

Unavailable

3

PISTON (1.00) (NOT AVAILABLE) | (Optional).

13105-HB2-305

Unavailable

4

PIN, PISTON

13111-GB0-910

$11.67

4

PIN, PISTON This part replaces 13111-087-000.

13111-GB0-910

$11.67

5

CLIP, PISTON PIN (13MM) This part replaces 13115-001-000.

94601-13000

$1.49

5

CLIP, PISTON PIN (13MM)

94601-13000

$1.49

6

ROD, CONNECTING

13201-036-010

Unavailable

7

CRANKSHAFT, R.

13311-GB5-760

Unavailable

8

CRANKSHAFT, L.

13321-GB5-760

Unavailable

9

PIN, CRANK

13381-GB1-900

Unavailable

9

PIN, CRANK This part replaces 13381-178-300.

13381-GB1-900

Unavailable

10

SPROCKET, TIMING (14T)

14311-035-000

$19.28

11

KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000.

90701-HB6-010

$3.78

11

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

12

BEARING, RADIAL BALL (6304)

91001-GF6-004

$20.45

12

BEARING, RADIAL BALL (6304) This part replaces 91001-035-000.

96100-63040-00

$14.40

12

BEARING, RADIAL BALL (6304) This part replaces 91001-035-008.

91001-GF6-004

$20.45

12

BEARING, RADIAL BALL (6304) This part replaces 96100-63040.

96100-63040-00

$14.40

12

BEARING, RADIAL BALL (6304)

96100-63040-00

$14.40

13

BEARING, CONNECTING ROD *RED* (RED)

91101-GB4-681

Unavailable

13

BEARING, CONNECTING ROD *BLUE* (BLUE)

91102-GB4-681

Unavailable

13

BEARING, CONNECTING ROD *WHITE* (WHITE)

91103-GB4-681

$23.20
