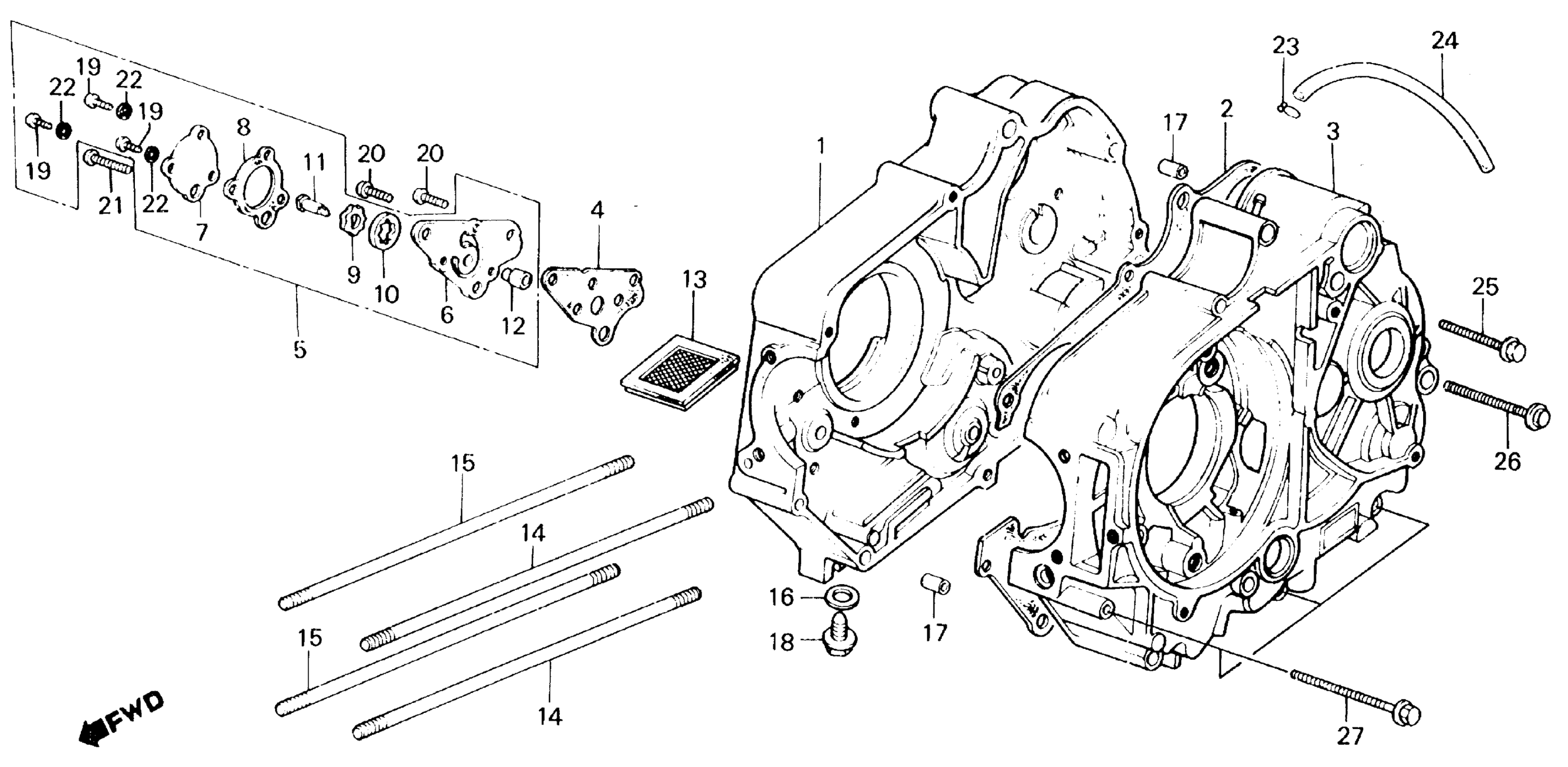

Honda TRX70A (87) FOURTRAX 70, JPN, VIN# JH3TE100-HC100012 CRANKCASE + OIL PUMP Diagram

#

Description
Price

1

CRANKCASE, R.

11100-GB5-751

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-GB4-000.

11191-GW8-682

$14.29

2

GASKET, CRANKCASE This part replaces 11191-GB4-306.

11191-GW8-682

$14.29

2

GASKET, CRANKCASE This part replaces 11191-GW8-680.

11191-GW8-682

$14.29

3

CRANKCASE, L.

11200-GB4-020

Unavailable

4

GASKET, OIL PUMP BODY

15119-035-020

Unavailable

5

PUMP ASSY., OIL

15300-035-000

Unavailable

6

BODY, OIL PUMP (NOT AVAILABLE)

15311-035-013

Unavailable

7

COVER, OIL PUMP (NOT AVAILABLE)

15321-035-003

Unavailable

8

GASKET, OIL PUMP COVER

15329-035-003

$4.24

9

ROTOR, OIL PUMP (INNER) (NOT AVAILABLE)

15331-035-004

Unavailable

10

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE)

15332-035-004

Unavailable

11

DRIVESHAFT, OIL PUMP (NOT AVAILABLE)

15382-035-003

Unavailable

12

PIN, OIL PUMP KNOCK

15383-035-003

Unavailable

13

SCREEN, OIL FILTER

15421-035-010

$3.80

14

BOLT A, CYLINDER STUD

90031-035-010

$5.46

15

BOLT B, CYLINDER STUD

90032-035-000

$5.46

16

GASKET, DRAIN VALVE (12.5X20)

90407-259-000

$2.92

17

PIN A, DOWEL (10X14) This part replaces 90704-035-000.

94301-10140

$2.28

17

PIN A, DOWEL (10X14)

94301-10140

$2.28

18

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

19

SCREW, PAN (5X10)

93500-05010-0A

$1.49

20

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

20

SCREW, PAN (6X16)

93500-06016-0A

$1.49

21

SCREW, PAN (6X22) This part replaces 93500-06022.

93500-06022-0A

$1.49

21

SCREW, PAN (6X22)

93500-06022-0A

$1.49

22

WASHER, SPRING (5MM)

94111-05000

$1.49

23

CLIP, TUBE (C9)

95002-50000

$1.49

24

BULK HOSE, VACUUM (5X3000) (5X350)

95005-50003-30M

$20.85

25

BOLT, FLANGE (6X50) This part replaces 96000-06050-00.

96001-06050-00

$2.16

25

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

26

BOLT, FLANGE (6X60) This part replaces 96000-06060-00.

96001-06060-00

$2.06

26

BOLT, FLANGE (6X60)

96001-06060-00

$2.06

27

BOLT, FLANGE (6X65) This part replaces 96000-06065-00.

96001-06065-00

$2.34

27

BOLT, FLANGE (6X65)

96001-06065-00

$2.34
