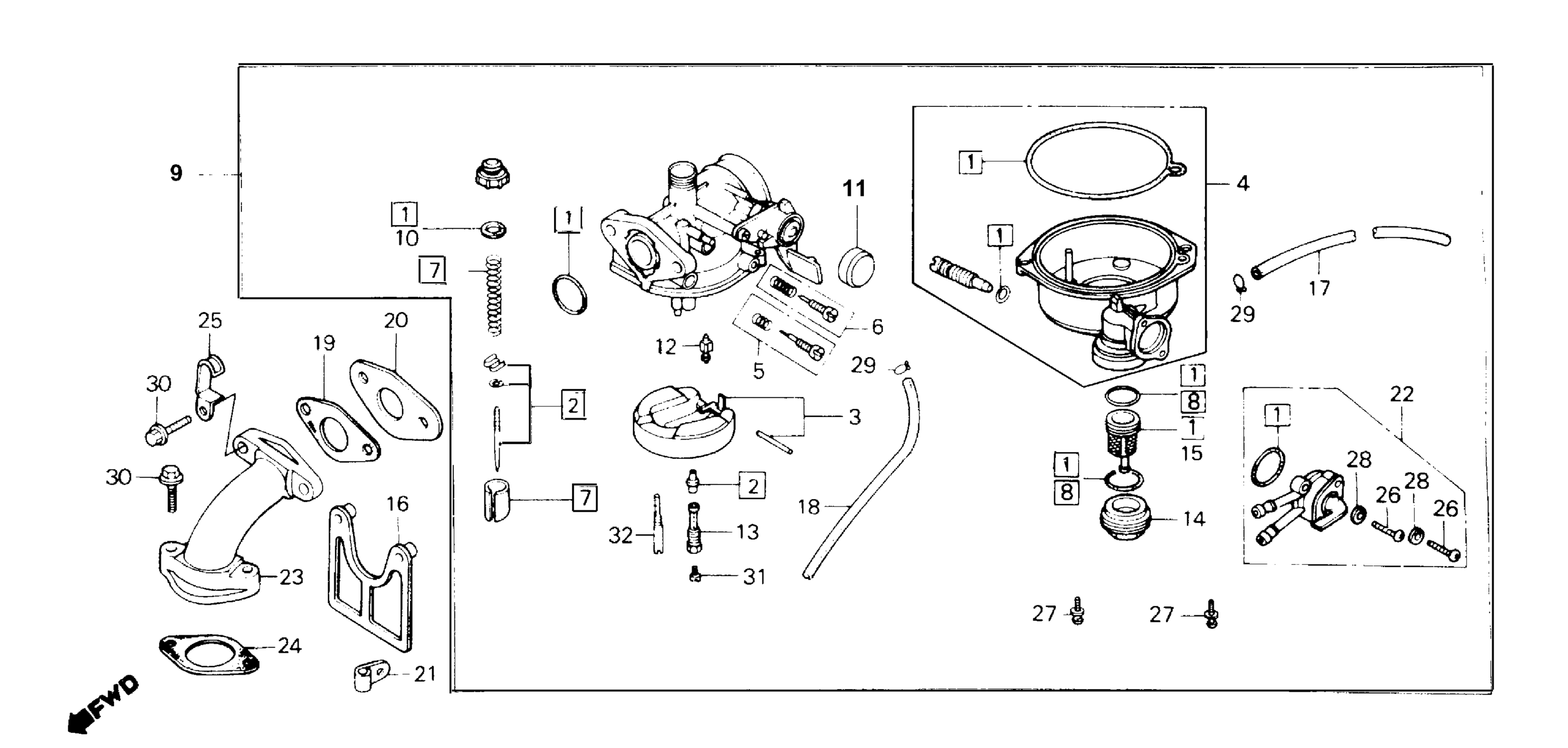

Honda TRX70A (87) FOURTRAX 70, JPN, VIN# JH3TE100-HC100012 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-GB4-013.

16010-141-305

$40.03

1

GASKET SET

16010-141-305

$40.03

2

NEEDLE SET, JET

16012-HB2-003

Unavailable

3

FLOAT SET

16013-883-005

$25.93

4

CHAMBER SET, FLOAT This part replaces 16015-968-013.

16015-968-023

Unavailable

4

CHAMBER SET, FLOAT

16015-968-023

Unavailable

5

SCREW SET

16016-086-700

$8.51

6

SCREW SET A

16016-HB2-003

Unavailable

7

VALVE SET, THROTTLE

16022-HB2-003

Unavailable

8

GASKET B SET

16040-GB0-911

Unavailable

9

CARBURETOR ASSY.

16100-HB2-043

Unavailable

10

GASKET, TOP

16110-GN2-871

Unavailable

11

CAP, CHOKE LEVER DUST

16148-141-881

$4.43

12

VALVE, FLOAT

16155-168-681

Unavailable

13

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-HB2-003

Unavailable

14

CUP, FUEL STRAINER

16175-GB0-911

Unavailable

15

CUP, FILTER

16176-GB0-911

$16.38

16

INSULATOR, SPECIAL

16196-HB2-000

Unavailable

17

TUBE, AIR VENT This part replaces 16199-GB4-003.

16199-943-003

Unavailable

17

TUBE, AIR VENT

16199-943-003

Unavailable

18

TUBE, FUEL This part replaces 16199-402-004.

16199-KG4-405

$8.51

19

GASKET, INSULATOR This part replaces 16201-HB2-900.

16201-086-701

$4.19

19

GASKET, INSULATOR This part replaces 16201-086-700.

16201-086-701

$4.19

19

GASKET, INSULATOR

16201-086-701

$4.19

20

INSULATOR, CARBURETOR

16211-086-700

$5.27

21

CLAMP, OVERFLOW PIPE

16236-045-010

$4.18

22

BODY SET, PETCOCK

16951-943-801

Unavailable

22

BODY SET, PETCOCK This part replaces 16951-968-003.

16951-943-801

Unavailable

23

PIPE, INLET

17111-957-003

Unavailable

24

GASKET, IN. PIPE This part replaces 17119-035-000.

17119-088-832

$4.09

24

GASKET, IN. PIPE This part replaces 17119-035-306.

17119-088-832

$4.09

24

GASKET, IN. PIPE This part replaces 17119-088-830.

17119-088-832

$4.09

25

CLAMP, BRAKE CABLE (NOT AVAILABLE)

43469-HB2-000

Unavailable

26

SCREW, PAN (3X12)

93500-03012-0H

$0.75

27

SCREW-WASHER (4X14)

93892-04014-08

$1.00

28

WASHER, SPRING (3MM)

94111-03000

$0.86

29

CLIP, TUBE (B6.5)

95002-02650

$1.35

30

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.64

30

BOLT, FLANGE (6X25)

95701-06025-00

$1.64

31

JET, MAIN (#60) | (Optional). This part replaces 99101-116-0600.

99102-GHB-0600

$8.48

31

JET,MAIN,#62 This part replaces 99101-116-0620.

99101-GFG-0620

$7.32

31

JET, MAIN (#60) | (Optional).

99102-GHB-0600

$8.48

31

JET,MAIN,#62 This part replaces 99102-GHB-0620.

99101-GFG-0620

$7.32

32

JET, SLOW (#38) This part replaces 99103-126-0380.

99103-141-0380

$18.62
