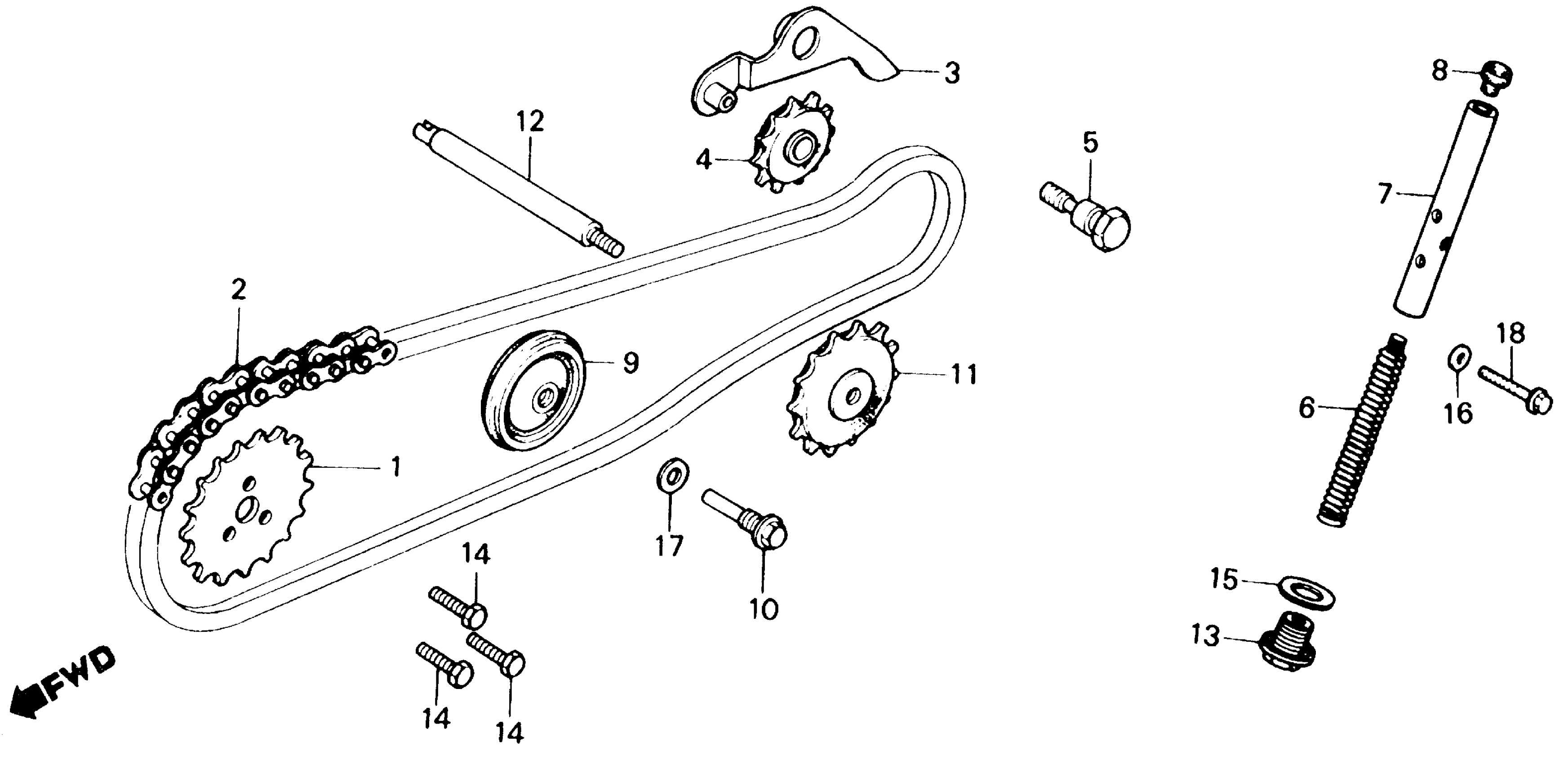

Honda TRX70A (87) FOURTRAX 70, JPN, VIN# JH3TE100-HC100012 CAM CHAIN + TENSIONER Diagram

#

Description
Price

1

SPROCKET, CAM (28T) This part replaces 14321-035-003.

14321-035-700

$17.46

1

SPROCKET, CAM (28T) This part replaces 14321-035-010.

14321-035-700

$17.46

1

SPROCKET, CAM (28T)

14321-035-700

$17.46

2

CHAIN, CAM (82L) (DAIDO) This part replaces 14401-035-003.

14401-115-010

$29.93

2

CHAIN, CAM (82L) (DAIDO) This part replaces 14401-035-005.

14401-115-010

$29.93

3

ARM, CAM CHAIN TENSIONER

14500-035-020

$28.03

4

ROLLER, CAM CHAIN TENSIONER

14502-086-000

$16.33

5

PIVOT, CAM CHAIN TENSIONER

14531-035-000

$3.87

6

SPRING, CAM CHAIN TENSIONER This part replaces 14541-GB0-910.

14541-GB4-681

$4.75

6

SPRING, CAM CHAIN TENSIONER

14541-GB4-681

$4.75

7

ROD, CAM CHAIN TENSIONER PUSH This part replaces 14550-GB0-910.

14550-GB0-911

$21.35

7

ROD, CAM CHAIN TENSIONER PUSH

14550-GB0-911

$21.35

8

HEAD, CAM CHAIN TENSIONER PUSH ROD

14566-086-030

$2.33

9

ROLLER, CAM CHAIN GUIDE This part replaces 14610-086-003.

14610-086-010

$20.24

10

PIN, CAM CHAIN GUIDE ROLLER This part replaces 14615-035-000.

14615-035-010

$2.84

10

PIN, CAM CHAIN GUIDE ROLLER

14615-035-010

$2.84

11

SPROCKET, CAM CHAIN GUIDE (25T) This part replaces 14670-035-030.

14670-GBJ-M30

$23.34

12

SPINDLE, CAM CHAIN GUIDE SPROCKET

14675-035-060

Unavailable

13

BOLT, SEALING (14MM)

90081-035-000

$4.24

14

BOLT, KNOCK (5MM)

90083-035-010

$2.07

15

WASHER, SEALING (14MM)

90441-035-000

$2.39

16

WASHER, SEALING (6.2X12X1.2) This part replaces 90461-357-000.

90463-KRM-840

$1.49

17

WASHER (8MM)

90481-035-000

$1.87

18

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

18

BOLT, FLANGE (6X18)

95701-06018-00

$1.62
