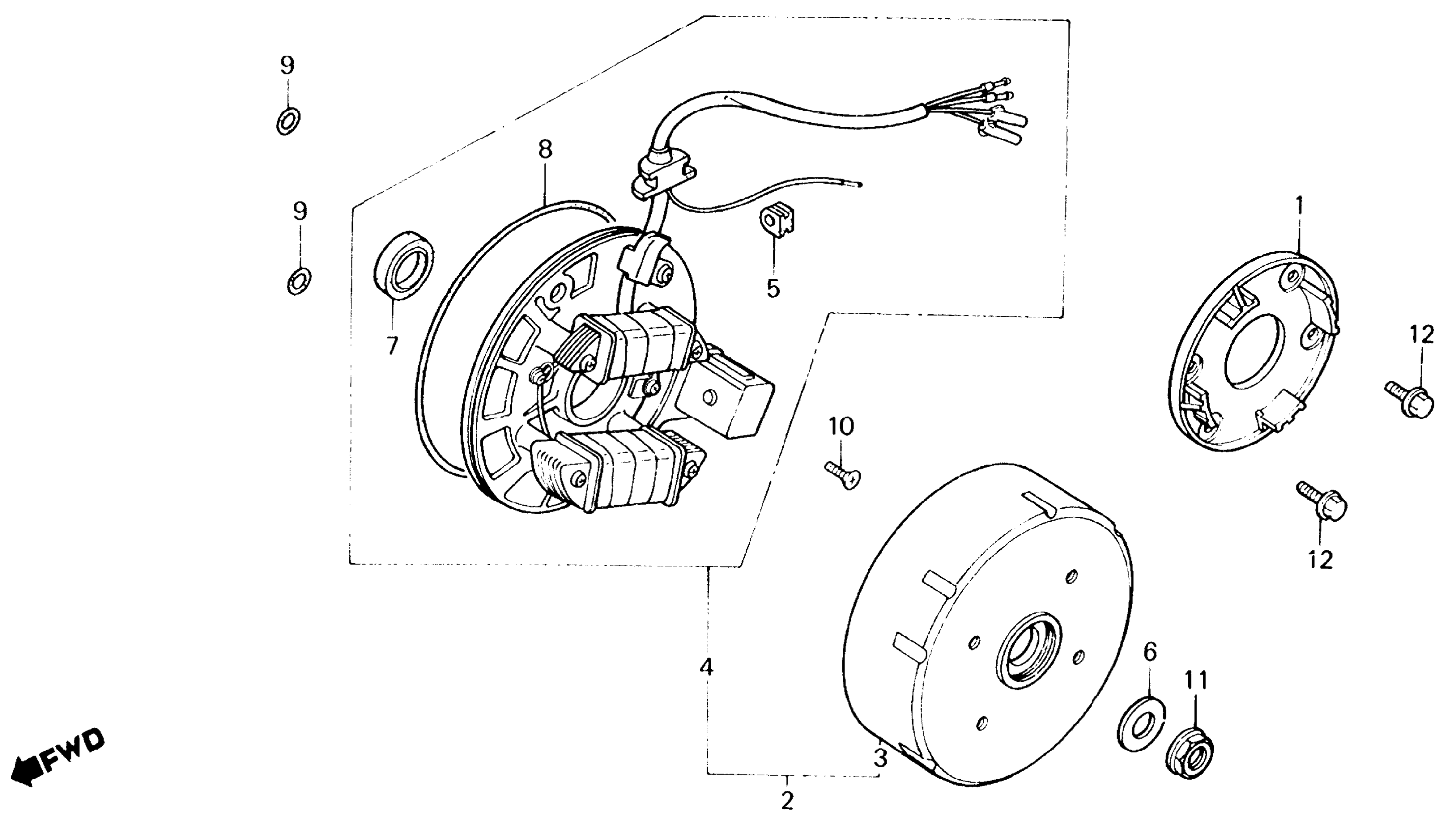

Honda TRX70A (87) FOURTRAX 70, JPN, VIN# JH3TE100-HC100012 ALTERNATOR Diagram

#

Description

Price

1

PULLEY, RECOIL (NOT AVAILABLE)

28430-HB2-000

Unavailable

2

ALTERNATOR ASSY., FLYWHEEL TYPE (HITACHI) (NOT AVAILABLE)

31100-HB2-005

Unavailable

3

FLYWHEEL (HITACHI) (NOT AVAILABLE)

31110-HB2-005

Unavailable

4

STATOR (HITACHI)

31120-HB2-005

Unavailable

5

GROMMET, NEUTRAL SWITCH WIRE

32981-GB4-770

Unavailable

6

WASHER, MAGNET FIXING

90426-035-000

$2.35

7

OIL SEAL (19X30X5) (NOK) (NOT AVAILABLE) This part replaces 91202-HB2-003.

91202-HB2-004

Unavailable

7

OIL SEAL (19X30X5) (NOK) (NOT AVAILABLE)

91202-HB2-004

Unavailable

8

O-RING (107X2)

91301-035-003

$6.56

9

O-RING (6X1.7)

91317-171-003

$2.80

10

SCREW, FLAT (6X16)

93600-06016-0A

$0.90

11

NUT, FLANGE (10MM)

94050-10000

$1.41

12

BOLT, FLANGE (6X12)

95701-06012-00

$1.81
