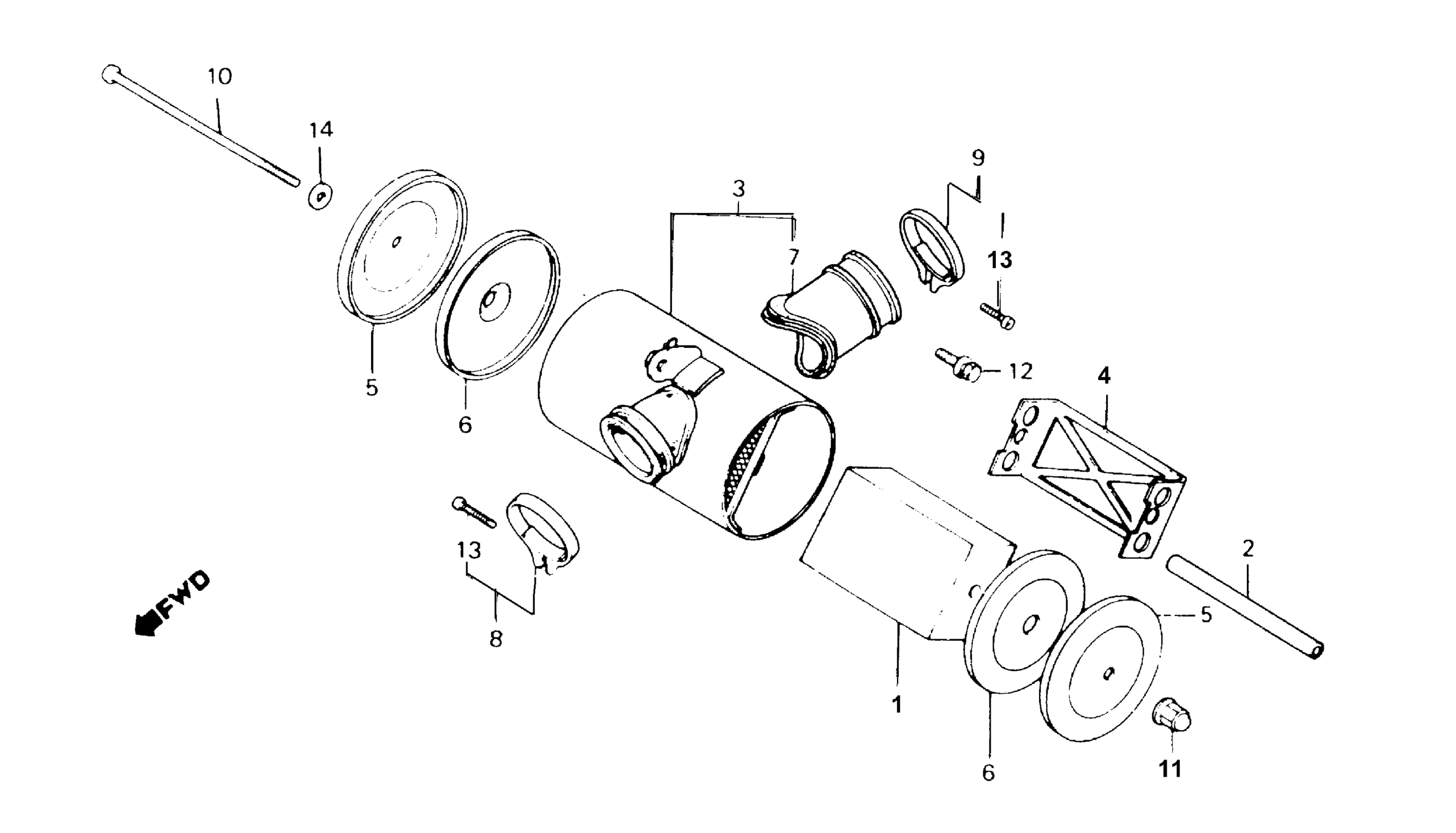

Honda TRX70A (87) FOURTRAX 70, JPN, VIN# JH3TE100-HC100012 AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17211-HB2-000

$5.61

2

PIPE, AIR CLEANER (INNER)

17212-098-000

$5.37

3

HOUSING, AIR CLEANER (NOT AVAILABLE) | Use up to Frame SN HC109054 This part replaces 17221-HB2-000.

17221-HB2-010

Unavailable

3

HOUSING, AIR CLEANER (NOT AVAILABLE) | Use from Frame SN HC109055

17221-HB2-010

Unavailable

4

PLATE, ELEMENT SETTING

17222-HB2-000

Unavailable

5

COVER, AIR CLEANER HOUSING *NH35M* (CLOUD SILVER METALLIC) This part replaces 17231-098-950.

17231-098-950ZA

Unavailable

5

COVER, AIR CLEANER HOUSING *NH35M* (CLOUD SILVER METALLIC) This part replaces 17231-098-950B.

17231-098-950ZA

Unavailable

5

COVER, AIR CLEANER HOUSING *NH35M* (CLOUD SILVER METALLIC)

17231-098-950ZA

Unavailable

6

GASKET, AIR CLEANER HOUSING

17252-HB2-000

Unavailable

7

TUBE, AIR CLEANER IN.

17254-HB2-300

Unavailable

8

BAND, AIR CLEANER CONNECTING TUBE

17255-HB2-003

$8.08

8

BAND, AIR CLEANER CONNECTING TUBE

17255-HB3-010

Unavailable

9

BAND, AIR CLEANER CONNECTING TUBE (42) This part replaces 17255-KK6-000.

95018-42250

$7.72

9

BAND, AIR CLEANER CONNECTING TUBE (42) This part replaces 90652-GHB-640.

95018-42250

$7.72

9

BAND, AIR CLEANER CONNECTING TUBE (42)

95018-42250

$7.72

10

SCREW, PAN (6X140) (NOT AVAILABLE)

90117-HB2-000

Unavailable

11

NUT, CAP (6MM)

90304-438-000

$7.14

12

BOLT-WASHER (6X12)

93401-06012-08

$1.55

12

BOLT-WASHER (6X12) This part replaces 93491-06012-08.

93401-06012-08

$1.55

13

SCREW, PAN (4X25)

93500-04025-0G

$1.49

14

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

14

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

14

WASHER, PLAIN (6MM)

94101-06800

$1.49
