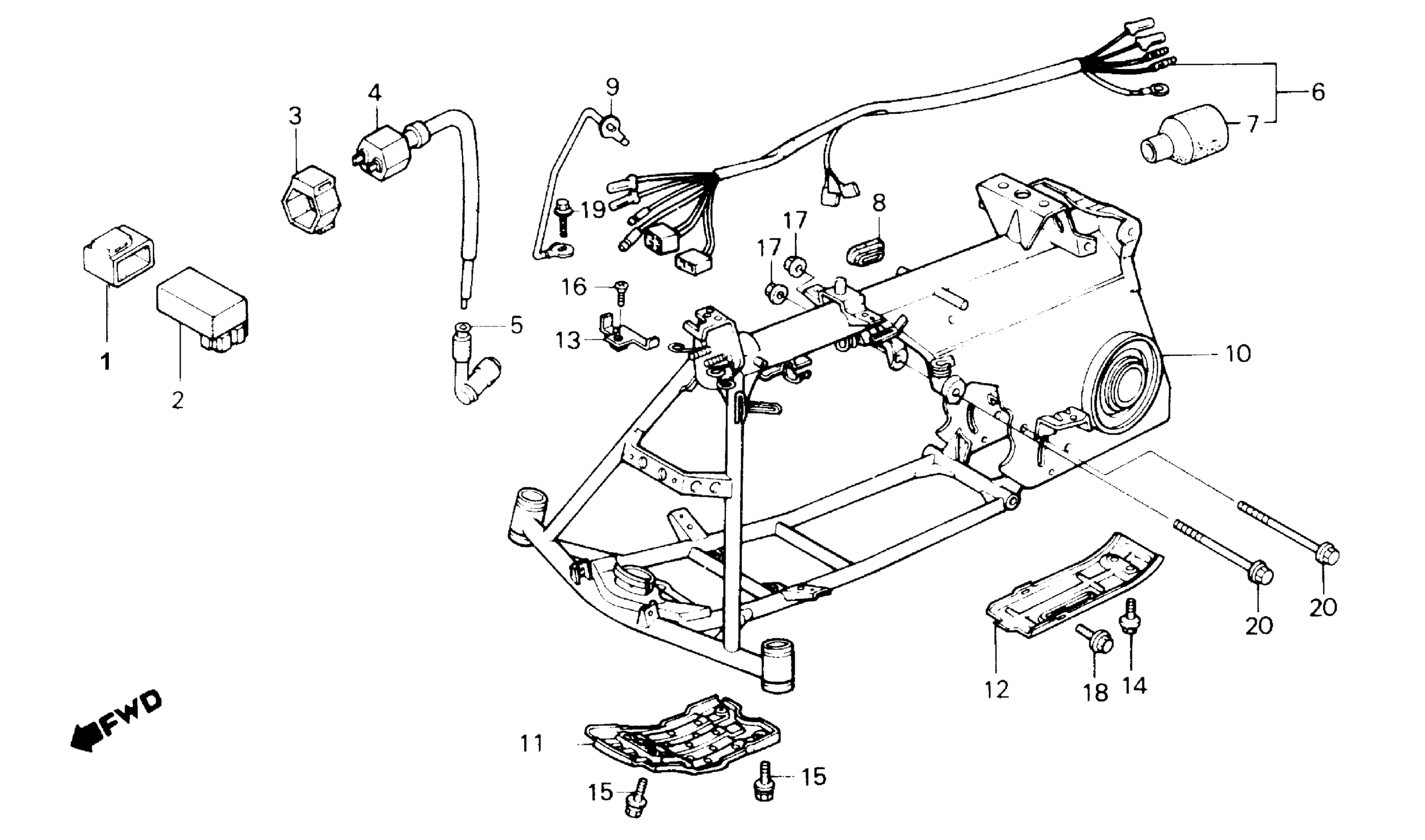

Honda TRX70A (86) FOURTRAX 70, JPN, VIN# JH3TE100-GC000032 TO JH3TE100-GC045787 WIRE HARNESS Diagram

RUBBER, IGNITION CONTROL MODULE

30401-GK8-000

$7.80

MODULE, IGNITION CONTROL (CDI)

30410-HB2-003

Unavailable

SUSPENSION, IGNITION COIL This part replaces 30506-KK4-000.

30506-VM6-000

Unavailable

SUSPENSION, IGNITION COIL

30506-VM6-000

Unavailable

COIL, IGNITION

30510-KT0-405

$77.33

COIL, IGNITION This part replaces 30510-VM0-000.

30510-KT0-405

$77.33

COIL, IGNITION This part replaces 30510-402-720.

30510-KT0-405

$77.33

CAP ASSY., NOISE SUPPRESSOR

30700-GJ5-010

Unavailable

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-165-600.

30700-GJ5-010

Unavailable

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-165-601.

30700-GJ5-010

Unavailable

WIRE HARNESS (NOT AVAILABLE)

32100-HB2-000

Unavailable

COVER, CONNECTOR (NOT AVAILABLE)

32108-115-000

$3.51

FRAME *NH105* (MAT BLACK)

50100-HB2-000ZA

Unavailable

PLATE, FR. SKID *NH105* (MAT BLACK) (NOT AVAILABLE)

50180-HB2-000ZA

Unavailable

PLATE, SKID (NOT AVAILABLE)

50355-HB2-000

Unavailable

BOLT, FLANGE (6X12)

90118-958-003

$3.24

BOLT-WASHER (8X12)

90156-964-670

Unavailable

NUT, FLANGE (8MM)

94050-08080

$1.49

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

BOLT, FLANGE (8X120) This part replaces 95700-08120-00.

95701-08120-00

$2.85
