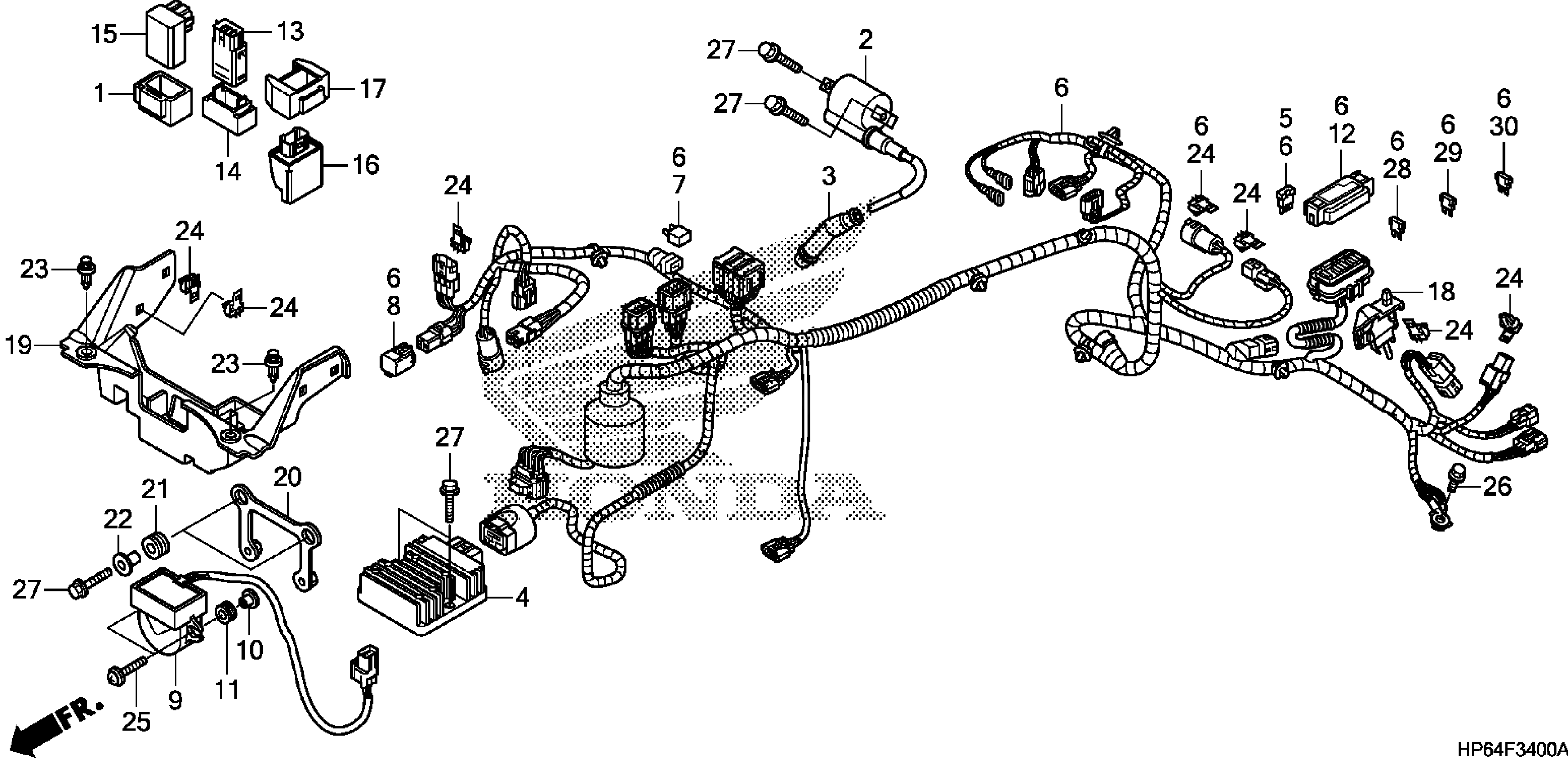

Honda TRX700XXA (09) TRX700XX, JPN, VIN# JH2TE360-9K100001 WIRE HARNESS Diagram

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-KB4-000

$6.92

COIL, IGNITION

30510-HP6-A01

$73.84

CAP ASSY., NOISE SUPPRESSOR

30700-MBN-671

$27.80

RECTIFIER ASSY., REGULATOR

31600-HP6-A01

$221.31

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-HP6-A00

$743.93

CONNECTOR, DIODE (2P) (3A)

32146-S84-003

$15.33

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.52

SENSOR, BANK ANGLE This part replaces 35161-HP6-A01.

35161-HP6-A02

$121.31

SENSOR, BANK ANGLE

35161-HP6-A02

$121.31

COLLAR

35162-MFA-D01

$4.15

GROMMET

35163-MN5-003

$3.15

COVER SET, FUSE

38220-HP6-A00

Unavailable

RELAY, WATERPROOF (15AX2) (Honda Code 8557167)

38580-HP5-601

$46.40

CUSHION, RELAY

38585-HP6-A01

$5.26

CONTROL UNIT, FAN

38710-HP6-A01

$79.72

PGM-FI UNIT

38770-HP6-A01

$437.66

CUSHION, PGM-FI UNIT

38775-HP6-A00

Unavailable

STAY, FUSE BOX

50415-HP6-A00

$5.66

BOX, ELECTRIC CONTROL UNIT

50420-HP6-A00

$11.03

STAY, BANK ANGLE SENSOR

50421-HP6-A00

$5.85

RUBBER, BANK ANGLE SENSOR

50422-HP6-A00

$2.38

COLLAR, TAILLIGHT MOUNTING

84706-163-670

$4.08

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.67

SCREW-WASHER (4X22) | Use up to Frame SN 9K100211.

93891-04022-07

$1.49

BOLT-WASHER (4X25) | Use from Frame SN 9K100212.

93401-04025-07

$1.49

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55

FUSE, MINI (10A)

98200-41000

$1.49

FUSE, MINI (15A) (Honda Code 4853438)

98200-41500

$1.49

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.67
