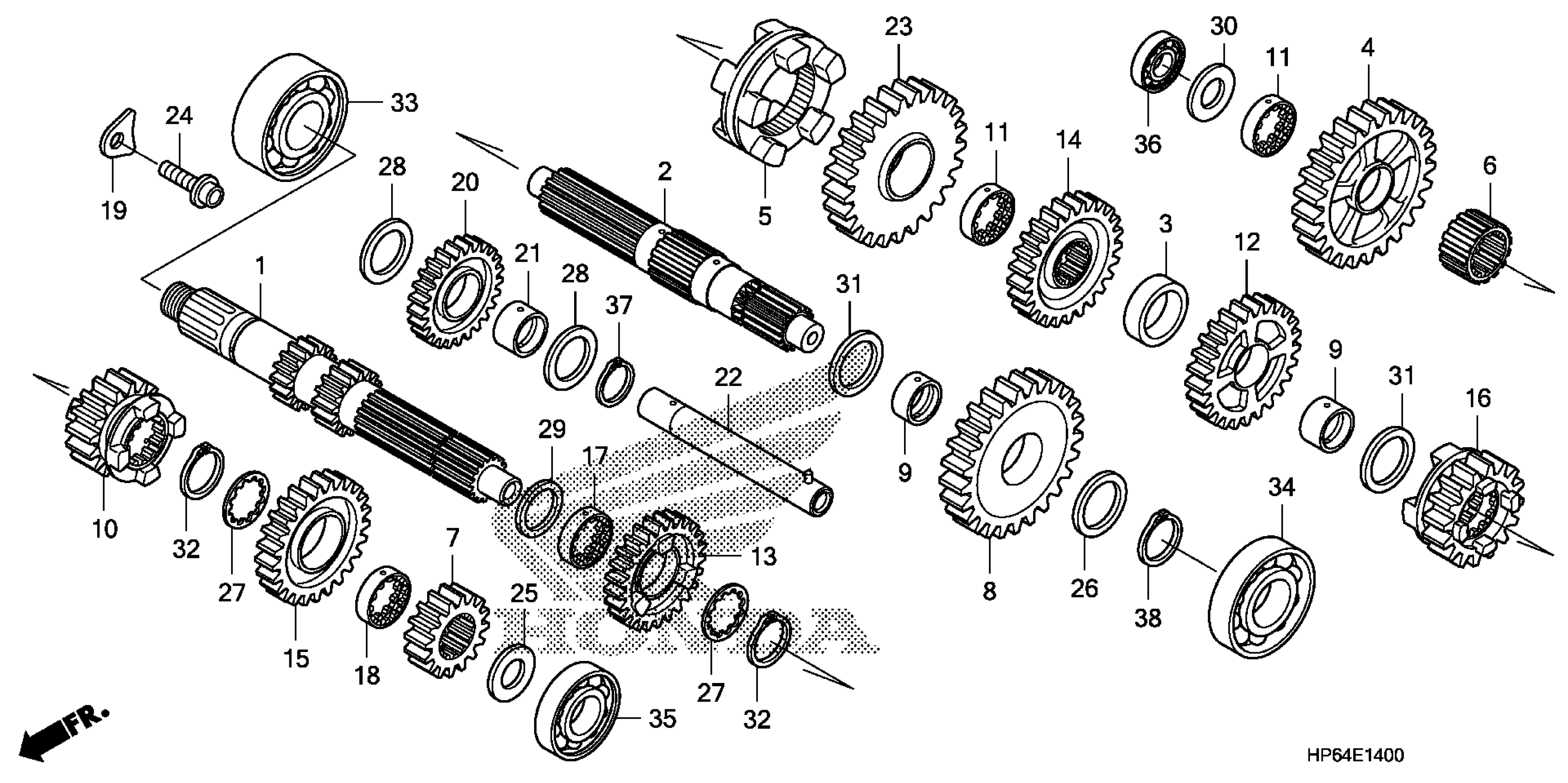

Honda TRX700XXA (09) TRX700XX, JPN, VIN# JH2TE360-9K100001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (12T/12T)

23211-HP6-A00

$141.74

2

COUNTERSHAFT

23221-HP6-A00

Unavailable

3

COLLAR, COUNTERSHAFT

23224-HP6-A00

Unavailable

4

GEAR, COUNTERSHAFT LOW (38T)

23411-HP6-A00

$97.77

5

SHIFTER, REVERSE COUNTERSHAFT LOW GEAR

23412-HP6-A00

$45.77

6

COLLAR, SPLINE

23413-HP6-A00

$23.43

7

GEAR, MAINSHAFT SECOND (16T)

23421-HP6-A00

$48.35

8

GEAR, COUNTERSHAFT SECOND (35T)

23431-HP6-A00

$98.97

9

COLLAR (28X31X12)

23432-HP6-A00

$9.78

10

GEAR, MAINSHAFT THIRD (19T)

23441-HP6-A00

Unavailable

11

COLLAR, SPLINE (28X12)

23442-MT3-000

$25.59

12

GEAR, COUNTERSHAFT THIRD (31T)

23451-HP6-A00

Unavailable

13

GEAR, MAINSHAFT FOURTH (22T)

23461-HP6-A00

$89.12

14

GEAR, COUNTERSHAFT FOURTH (28T)

23471-HP6-A00

$90.19

15

GEAR, MAINSHAFT FIFTH (25T)

23481-HP6-A00

$96.36

16

GEAR, COUNTERSHAFT FIFTH (26T)

23491-HP6-A00

$107.20

17

COLLAR (25X28X11)

23492-KY2-000

$20.19

18

COLLAR, SPLINE (25X28X10.8)

23512-MY9-920

$9.30

19

PLATE A, BEARING SETTING

23521-MBN-670

$5.26

20

GEAR, REVERSE IDLE (21T)

23721-HP6-A00

Unavailable

21

COLLAR (16X19X11)

23722-HP6-A00

Unavailable

22

SHAFT, REVERSE IDLE

23730-HP6-A00

Unavailable

23

GEAR, COUNTERSHAFT REVERSE (33T)

23751-HP6-A00

$98.83

24

BOLT, FLANGE SOCKET (6X14)

90071-MF5-000

$3.12

25

WASHER, SPECIAL (17MM)

90403-HN8-000

$2.64

26

WASHER, SPECIAL (26MM)

90403-HP6-A00

$1.87

27

WASHER, SPLINE (25X31X1.5)

90451-KY2-000

$3.55

28

WASHER, THRUST (16MM)

90453-235-000

$1.75

29

WASHER, THRUST (25MM)

90456-MA6-000

$2.42

30

WASHER, THRUST (20MM)

90458-292-000

$3.30

31

WASHER, THRUST (28MM)

90458-729-920

$4.87

32

CIRCLIP (25MM)

90601-107-000

$3.49

33

BEARING, BALL (5205A)

91003-MBN-671

$32.18

34

BEARING, RADIAL BALL (26X64X16)

91004-HP6-A01

$18.88

35

BEARING, RADIAL BALL (6303SP)

91009-HA0-004

$35.03

36

BEARING, RADIAL BALL SPECIAL (6004)

91011-HN8-003

$17.77

37

CIRCLIP (OUTER) (16MM)

94510-16000

$0.71

38

CIRCLIP (OUTER) (26MM) (NOT AVAILABLE)

94510-26000

Unavailable
